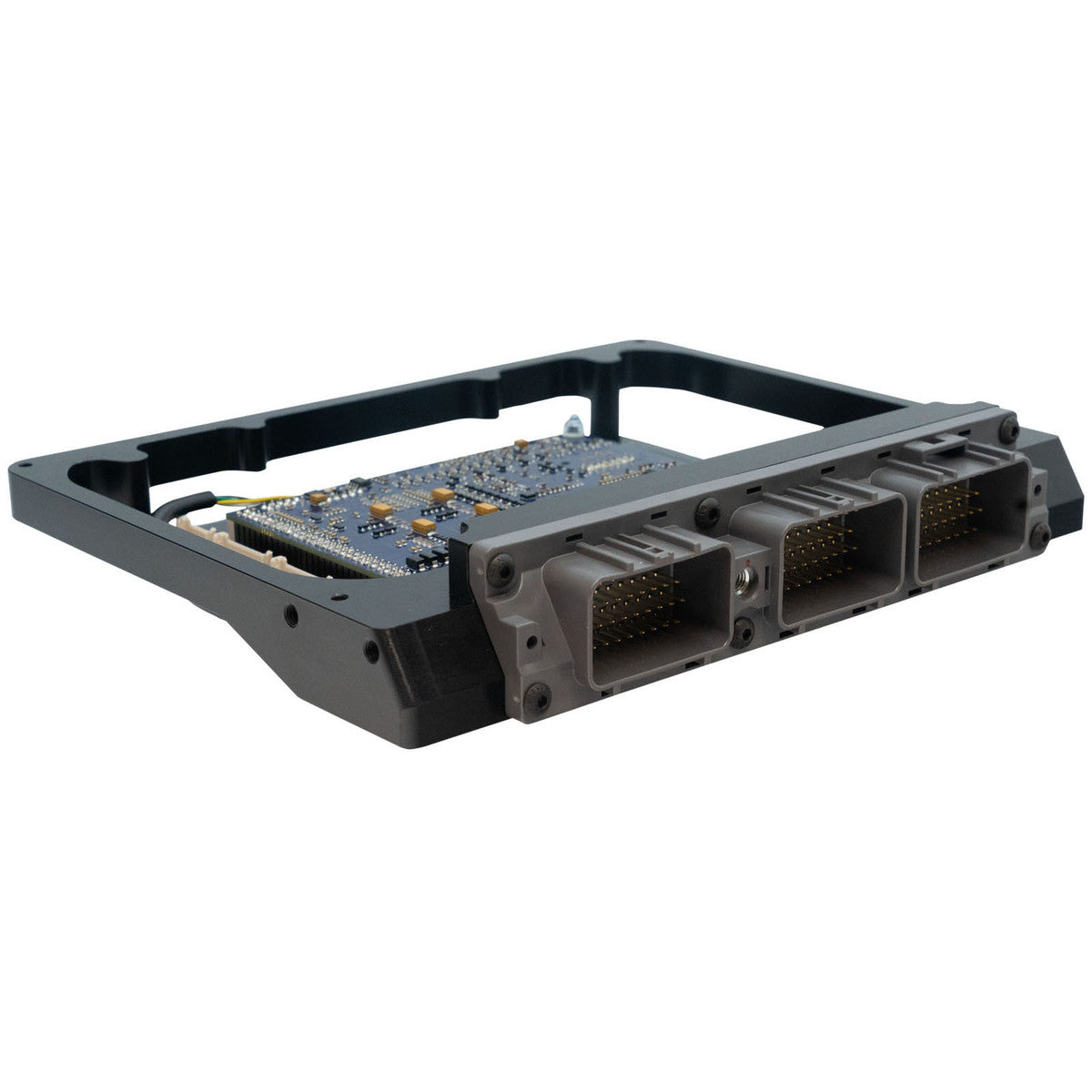

Link G4X SupraLink TS2JZX Plug-In ECU for Toyota Supra 2JZ Non VVTi

Link G4X SupraLink TS2JZX Plug-In ECU for Toyota Supra 2JZ Non VVTi

£1,355.00
£1,355.00
Sale Sold out

Easy to install. Affordable. Reliable.

G4X PlugIn ECUs deliver the latest engine management technology and are designed to maximise the potential of your car. This ECU fits inside the factory OEM enclosure and installs with no changes to the factory wiring loom for the models listed below.

  • Designed for the 2JZ Non VVTi engine
  • Manual transmission only
  • No onboard MAP sensor — XS Loom and external MAP sensor recommended
  • Most factory features supported
  • Please check your connector matches the header photo before purchasing

Suitable applications

  • Toyota Supra — 2JZ Non VVTi, Manual

Important notes

  • Supports naturally aspirated, parallel twin, or single turbo configurations.
  • Does not support sequential control of the stock twin turbos.
  • Does not fit the case of the NA Supra.

G4X PlugIn key features

  • Up to 6D fuel and ignition mapping
  • Precision closed loop cam control (four cam, independent control)
  • Sequential fuel delivery
  • Digital triggering for OEM patterns
  • OEM idle hardware supported
  • 5D boost control with three switchable tables
  • Motorsport features: antilag, launch, flat shift
  • Continuous barometric correction (on board)
  • CAN port
  • QuickTune automated fuel tuning
  • Individual cylinder correction
  • USB tuning cable included
  • On-board stats recording
  • Gear compensations for spark, boost, and fuel
  • Real time selectable dual fuel, ignition, and boost maps
  • Supports Hall effect, VR, or optical sensors for sync and crank
  • Boost control by gear, speed, or throttle position
  • 512 MB on-board logging memory
  • Staged injection
  • Knock control with windowing

I/O expansion options

The Toyota Supra Plug-In ECU has two expansion connectors (from PCB revision 1.2):

Expansion Connector 1

Gnd           Sensor Ground Only
+5V Out       Low Current +5V Supply
An Volt 7     Analog 0-5V input
An Volt 6     Analog 0-5V input
An Temp 4     Temperature sensor input
An Temp 3     Temperature sensor input
DI 8          Digital input
DI 7          Digital input

Expansion Connector 2

Gnd           Sensor Ground Only
+5V Out       Low Current +5V Supply
Aux 9         EThrottle (not usable as Aux Out)
DI 9          Digital input
DI 10         Digital input
An Volt 8     Analog 0-5V input
An Volt 9     Analog 0-5V input
An Volt 10    Analog 0-5V input
