Link G4X RX7Link RX7S6X ECU – Mazda RX-7 FD Series 6 13BT (Manual Transmission)
Link G4X RX7Link RX7S6X ECU – Mazda RX-7 FD Series 6 13BT (Manual Transmission)
Couldn't load pickup availability

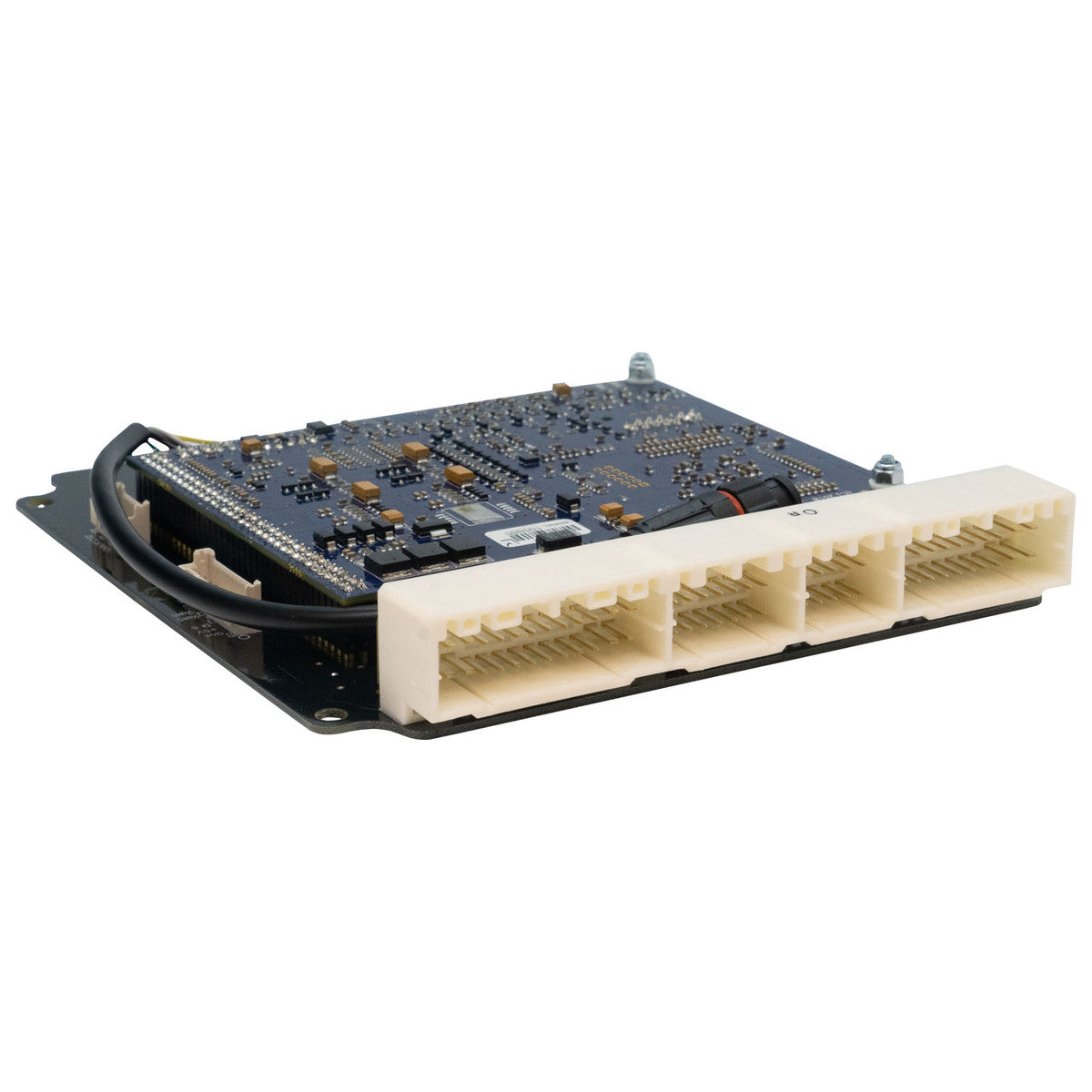

The Link G4X RX7Link RX7S6X ECU is a plug-in standalone ECU designed specifically for the Mazda RX-7 FD Series 6 with the 13BT rotary engine. It fits inside the OEM ECU enclosure and connects directly to the factory wiring harness — no wiring modifications needed for supported vehicles.
This ECU is built for manual transmission cars only and supports a variety of engine setups, including naturally aspirated, parallel twin-turbo, or single turbo configurations. However, it does not support sequential control of the stock twin-turbo system. E-Throttle is supported only after hardware modification.
Note: Please ensure your ECU connector matches the product image before purchase.
🚗 Vehicle Compatibility:
- Mazda RX-7 FD3S Series 6 (13BT engine)
- Manual transmission only
- Supports NA, parallel twin, and single turbo setups
- Does not support sequential twin-turbo operation
🔧 Key G4X Plug-In Features:
- Plug-in installation with no loom modification
- Up to 6D fuel and ignition mapping
- Closed-loop cam control (up to four cams, independent control)
- Sequential injection and digital triggering
- OEM idle hardware supported
- 5D boost control with three switchable tables
- Motorsport features: launch control, antilag, and flat shift
- Continuous onboard barometric correction
- CAN port
- QuickTune – automated fuel tuning
- Individual cylinder correction
- USB tuning cable included
- Gear compensations for spark, boost, and fuel
- Dual maps for fuel, ignition, and boost – real-time selectable
- Compatible with Hall, VR, or optical sensors
- Boost control by gear, speed, or throttle
- 512MB onboard data logging
- Staged injection
- Knock control with windowing
📈 I/O Expansion Options:
- Gnd – Sensor Ground Only
- +5V Out – Supply for MAP sensor
- An Volt 5 – Analog 0–5V input
- An Volt 6 – Analog 0–5V input
- DI 6 – Digital Input
Please refer to the PCLink Help File and manuals for installation and base map setup.
