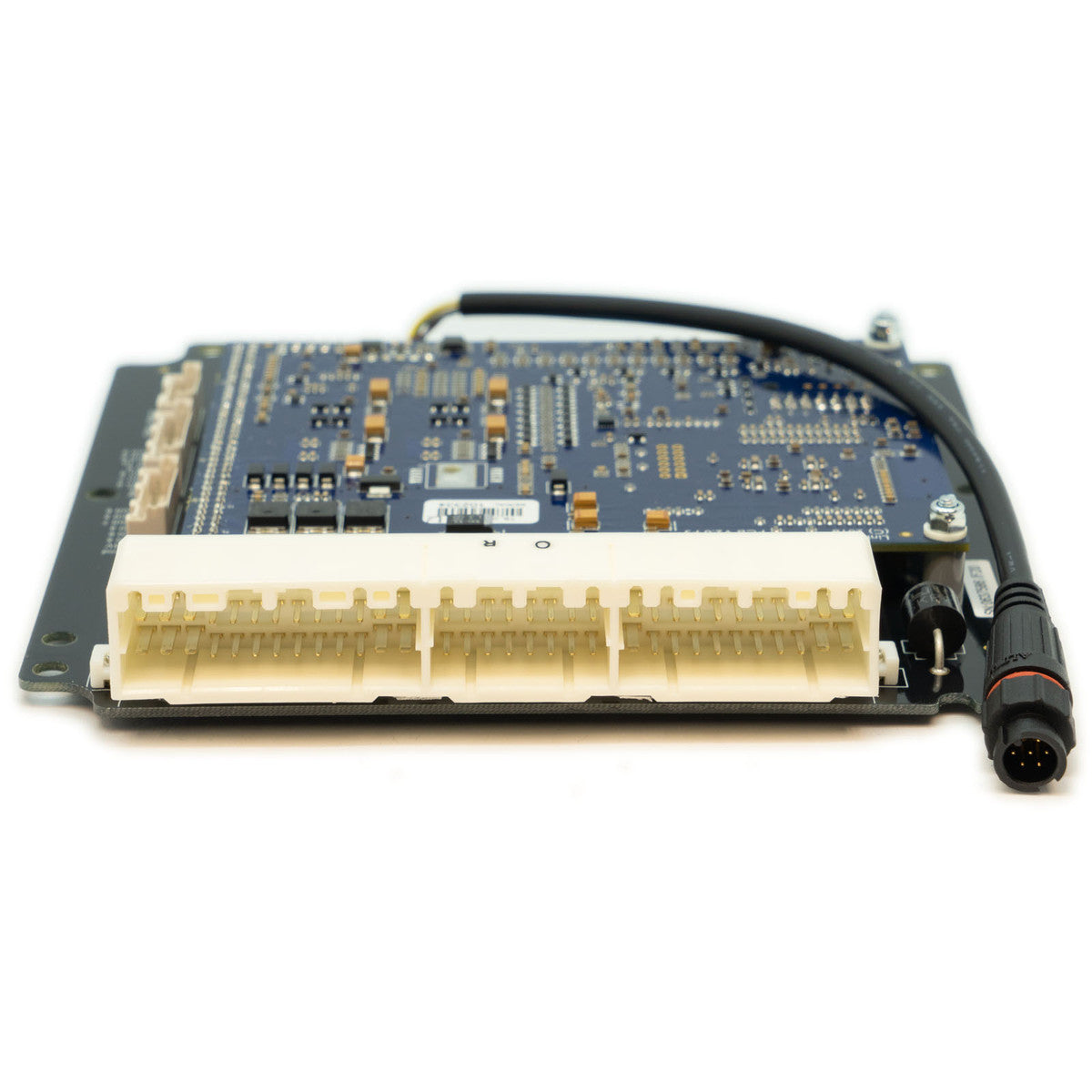

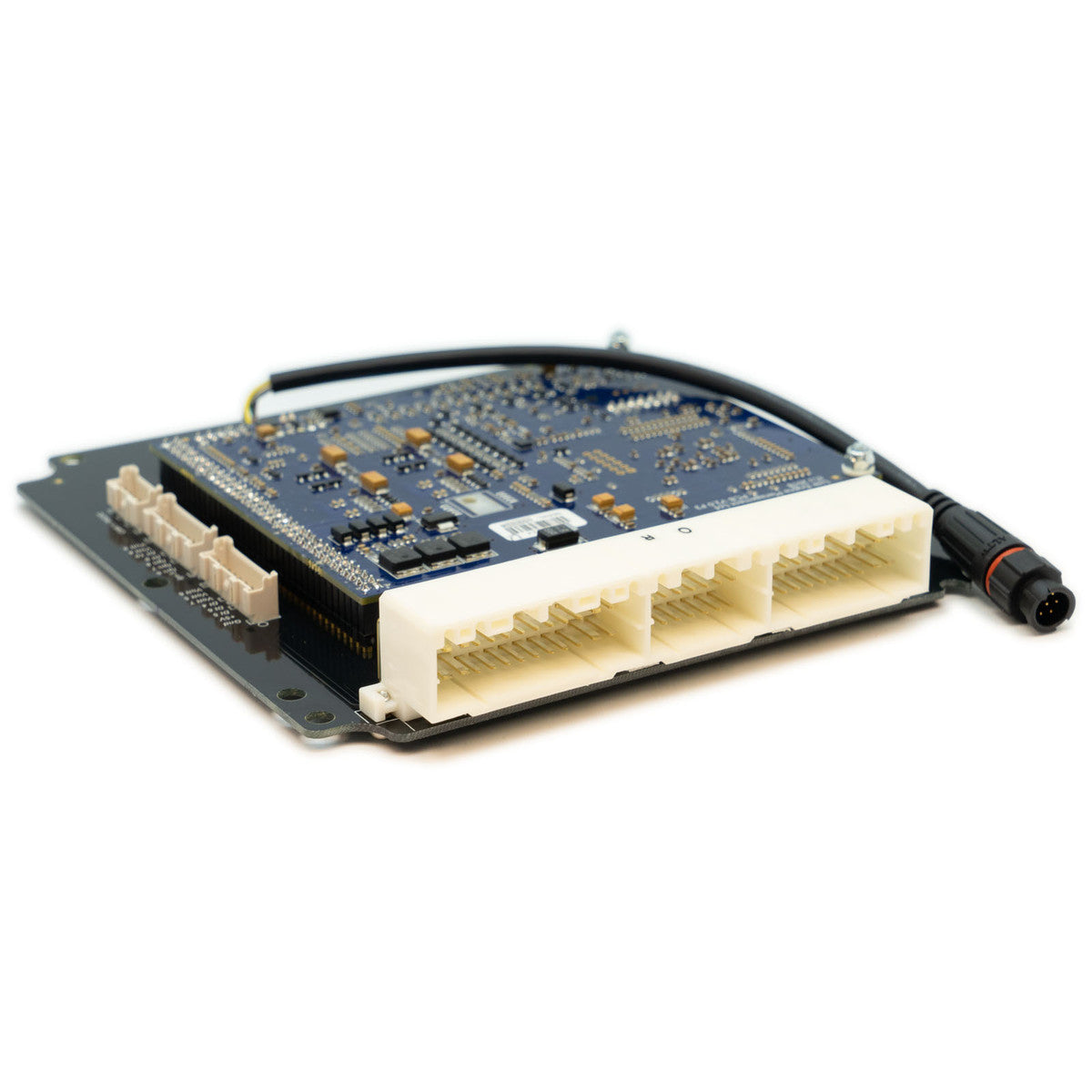

Link G4X MR2Link V3 TST205X Plug-In ECU for Toyota 3SGTE

Link G4X MR2Link V3 TST205X Plug-In ECU for Toyota 3SGTE

£1,145.00
£1,145.00
Sale Sold out

Easy to install. Affordable. Reliable.

G4X PlugIn ECUs deliver the latest in engine management technology and are designed to maximise the potential of your car. This ECU fits inside the factory OEM enclosure and installs with no changes to the factory wiring loom for the models listed below.

  • Designed for the 3SGTE engine in specified models
  • Manual transmission only
  • Does not fit the original housing of non-turbo cars
  • Most factory features supported
  • Requires modification before E-Throttle is usable
  • Please check your pinout/connector matches the header photo before purchasing

Suitable applications

  • Toyota MR2 1993 onwards (Gen3 3SGTE, excluding RedTop Beams)
  • Toyota Celica ST205
  • Toyota Celica Carlos Sainz Edition
  • Toyota Celica GT-Four RC
  • Toyota Celica Group A Rallye

G4X PlugIn key features

  • Up to 6D fuel and ignition mapping
  • Precision closed loop cam control (four cam, independent control)
  • Sequential fuel delivery
  • Digital triggering for OEM patterns
  • OEM idle hardware supported
  • 5D boost control with three switchable tables
  • Motorsport features: antilag, launch, flat shift
  • Continuous barometric correction (on board)
  • CAN port
  • QuickTune automated fuel tuning
  • Individual cylinder correction
  • USB tuning cable included
  • On-board stats recording
  • Gear compensations for spark, boost, and fuel
  • Real time selectable dual fuel, ignition, and boost maps
  • Supports Hall effect, VR, or optical sensors for sync and crank
  • Boost control by gear, speed, or throttle position
  • 512 MB on-board logging memory
  • Staged injection
  • Knock control with windowing

I/O expansion options

The following expansion connector inputs and outputs are provided:

Expansion Connector 1

Gnd        Sensor Ground Only
+5V Out    Low Current +5V Supply
DI 5       Digital Input
DI 6       Digital Input
DI 4       Digital Input
An Volt 7  Analog 0-5V input
An Volt 5  Analog 0-5V input
An Volt 6  Analog 0-5V input

Expansion Connector 2

Ign 5      Ignition 5 Auxiliary Output
Ign 6      Ignition 6 Auxiliary Output
Ign 7      Ignition 7 Auxiliary Output
Ign 8      Ignition 8 Auxiliary Output
DI 9       Digital Input
DI 10      Digital Input
Volt 8     Analog 0-5V input
Volt 9     Analog 0-5V input
