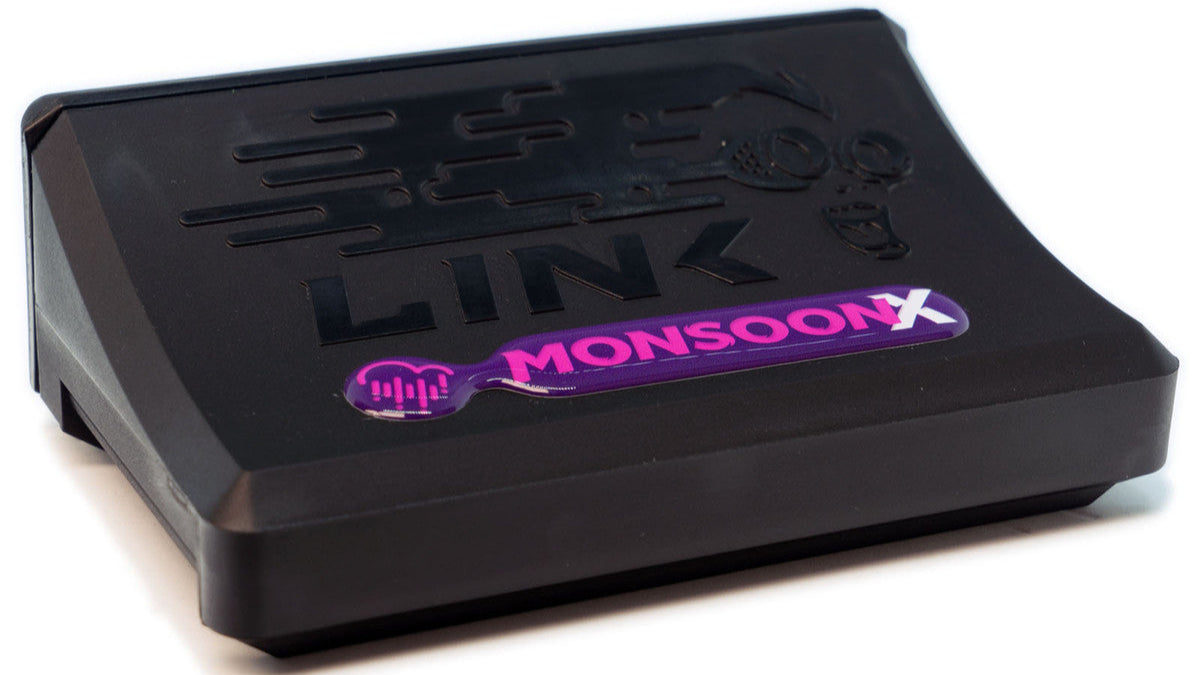

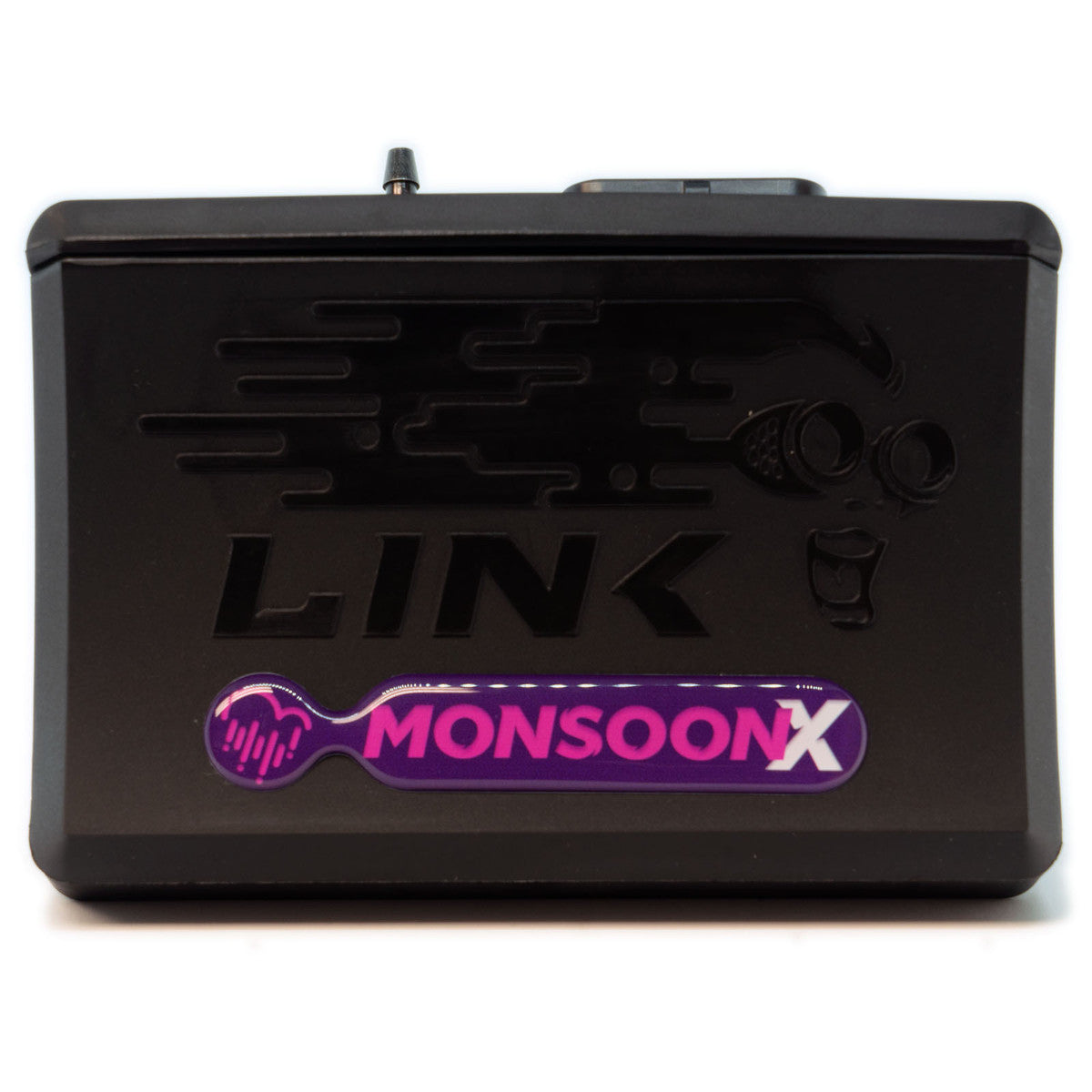

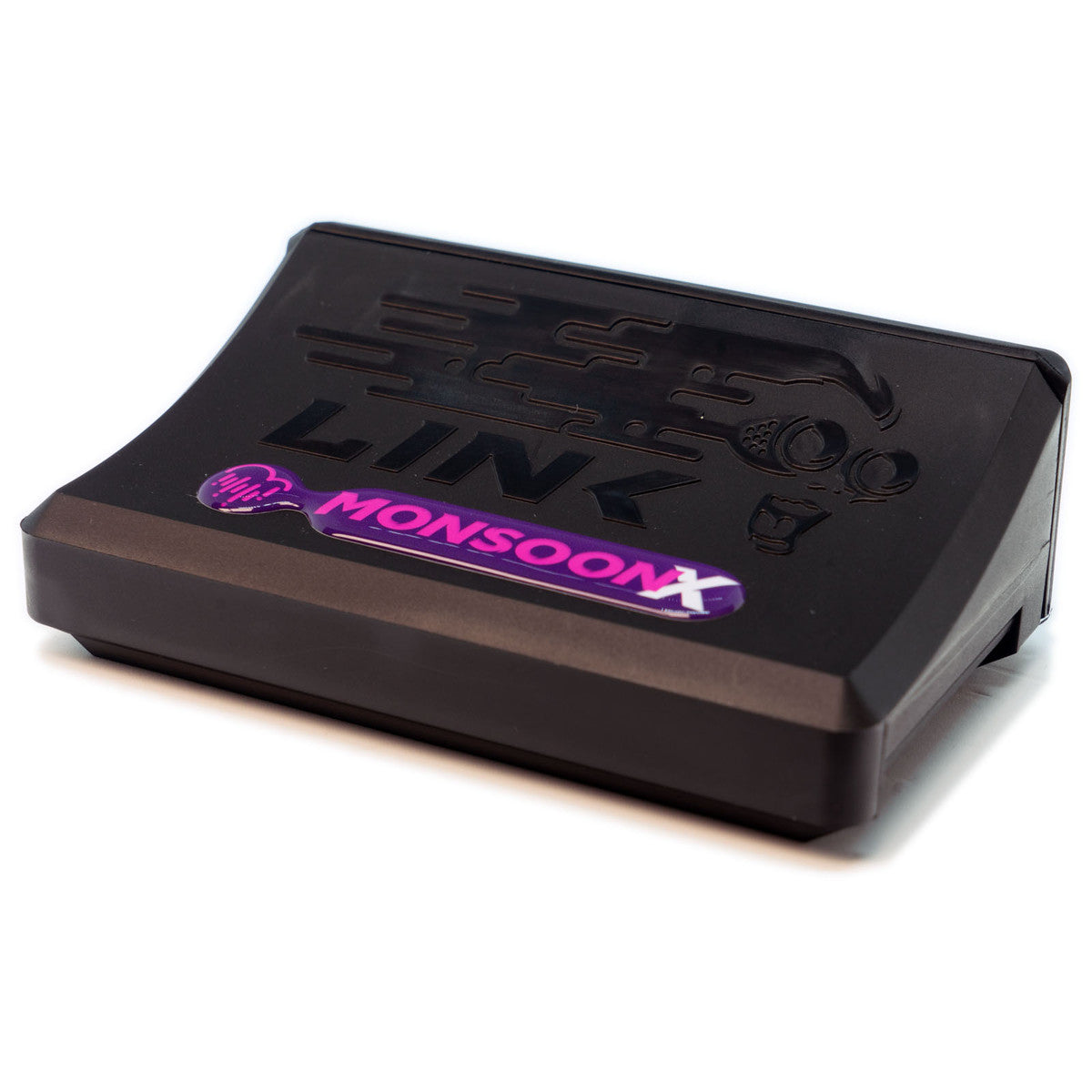

Link G4X MonsoonX ECU | Compact ECU with Big Features

The Link G4X MonsoonX is a compact ECU that delivers big features without the cost of a full motorsport unit. It supports up to 4 cylinders or 2 rotors with sequential injection and direct spark, or up to 8 cylinders in batch fire mode, making it ideal for turbocharged or naturally aspirated street cars that just need that little bit more control.

With upgraded logging, precision control, and features like Launch Control, Antilag, VVT, and Closed-Loop Boost Control, the MonsoonX is a huge upgrade over the AtomX. It now includes onboard Knock Control and a built-in 4-bar MAP sensor, keeping your install simple and cost-effective.

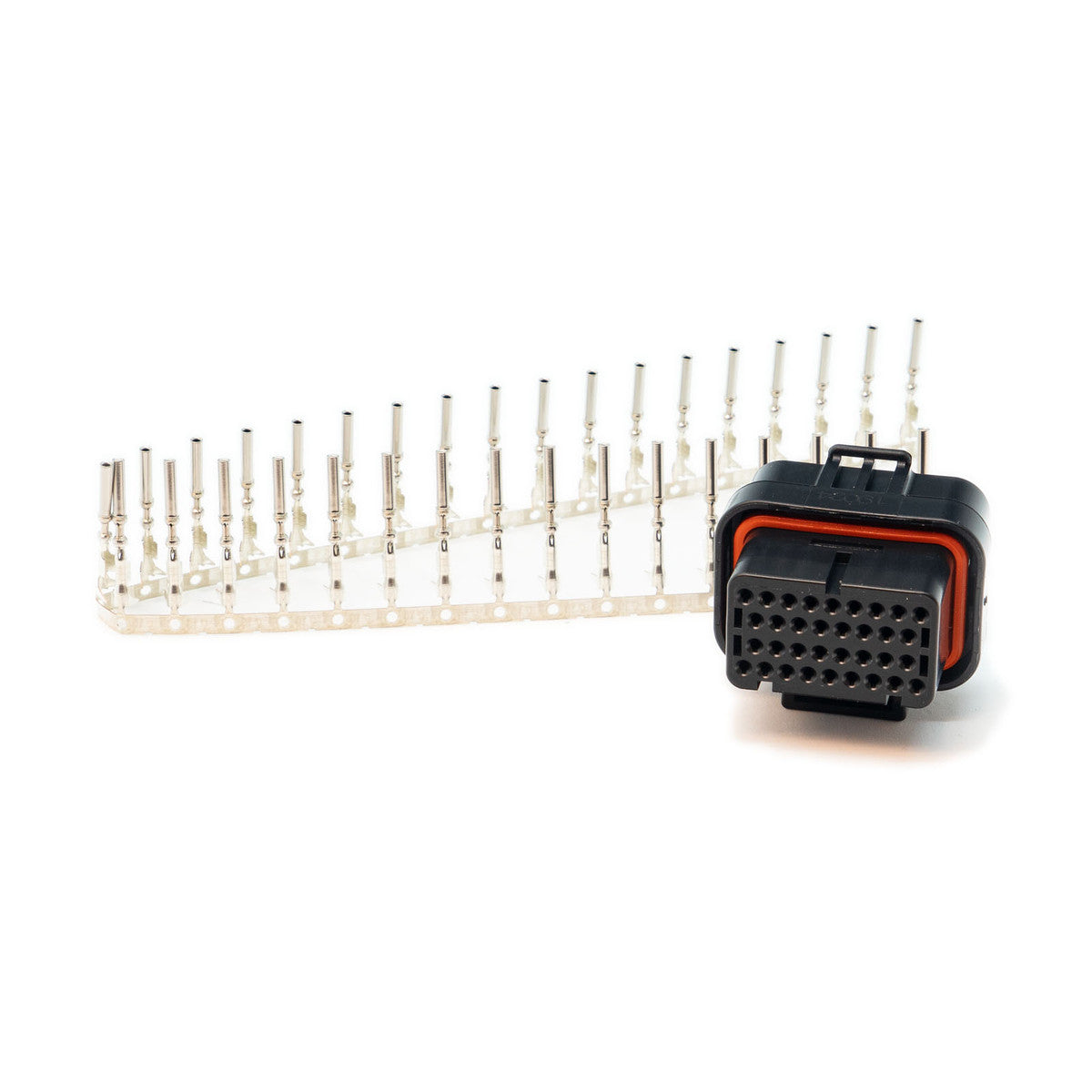

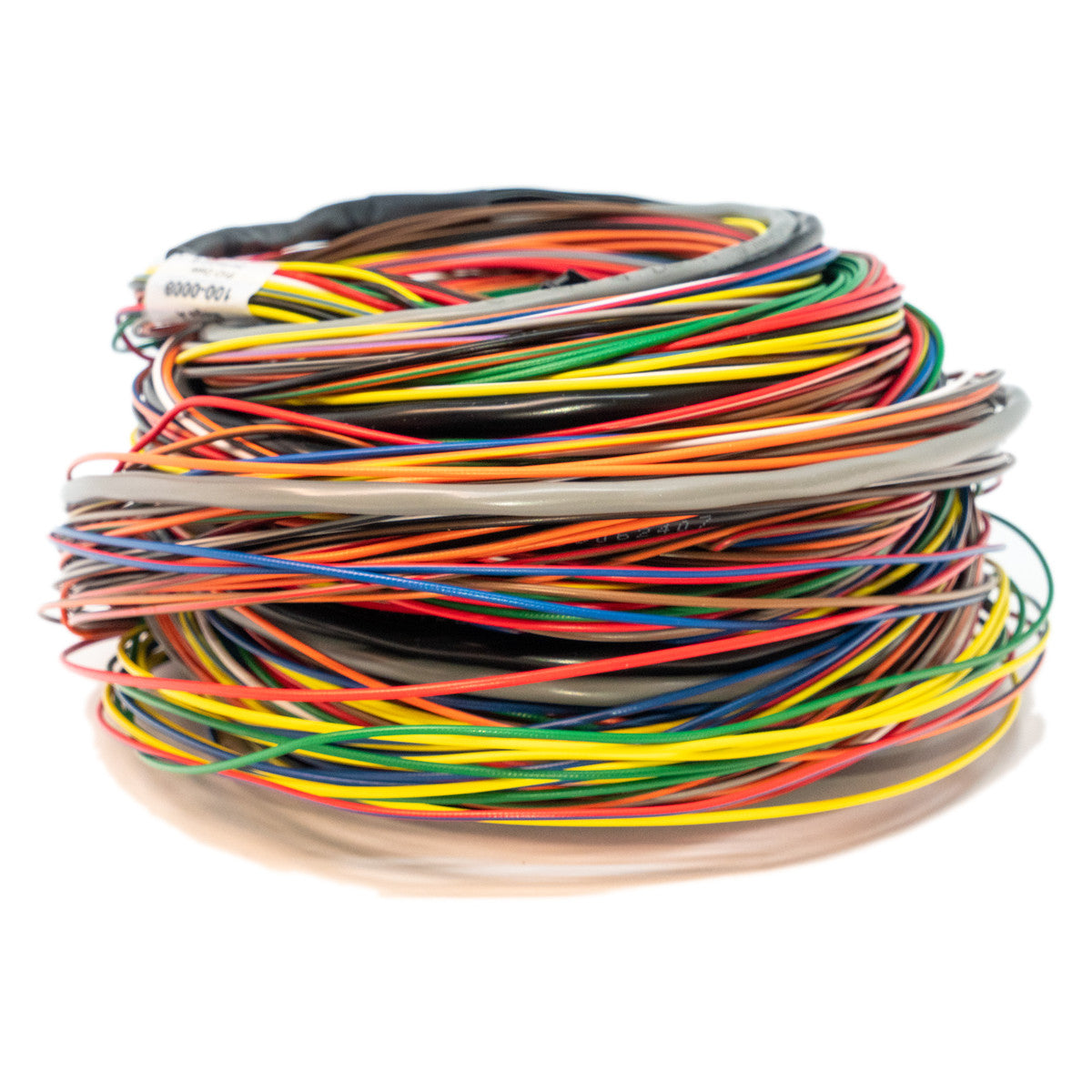

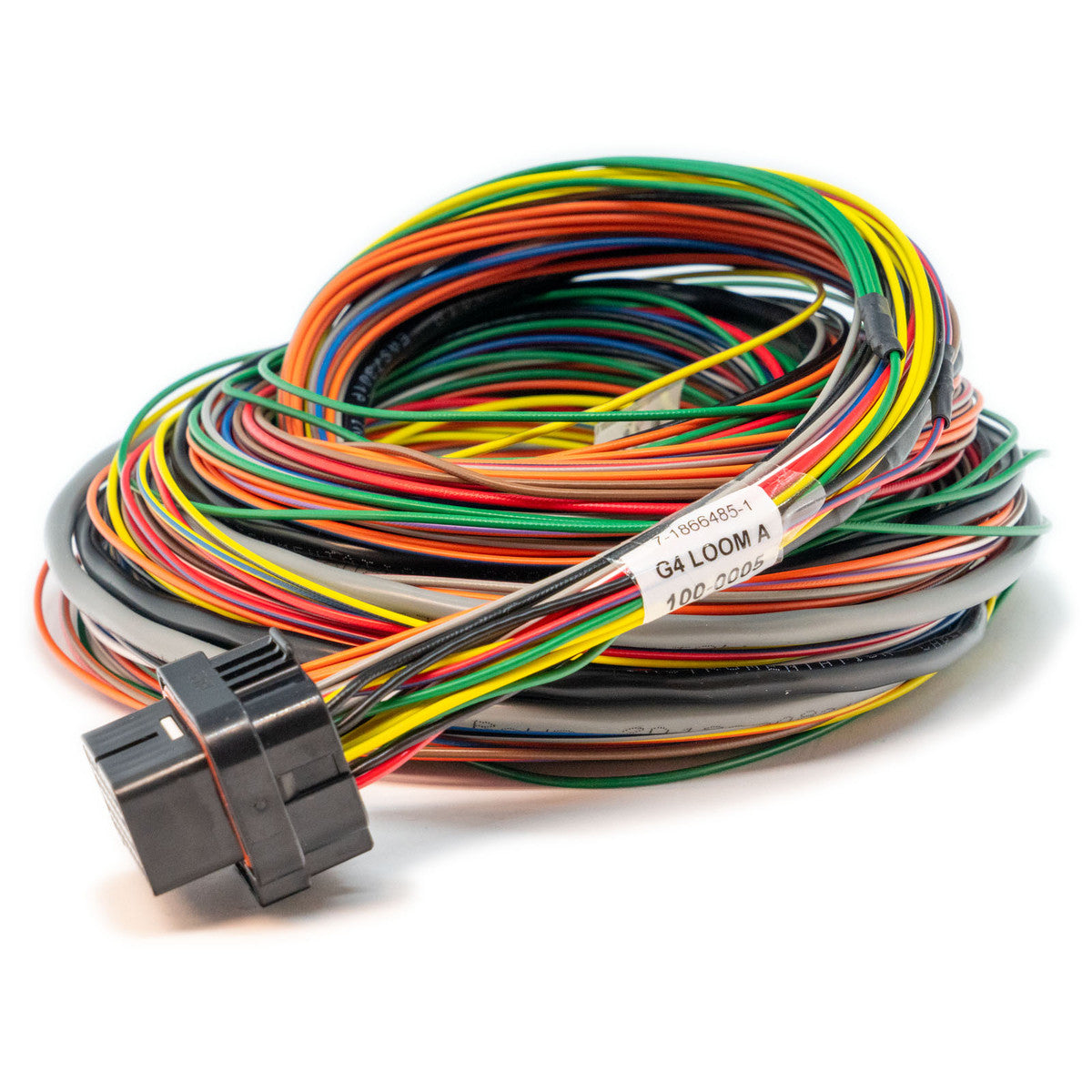

Requires an “A” loom (sold separately).

Note: MonsoonX cannot run all features simultaneously. Available I/O determines how many features can be active.

🔧 Key Features:

• Supports up to 4 cylinders (sequential) or 8 cylinders (batch fire)
• Launch Control, Antilag, VVT Control, and Closed-Loop Boost Control
• Onboard Knock Control (1 input shared with DI4)
• Built-in 4 Bar MAP Sensor + Onboard Baro
• 20 general purpose tables for custom strategies
• PCLink Tuning Software with live adjustments and QuickTune

🔌 Inputs & Outputs:

• 4 x Injector Drives (high impedance)
• 4 x Ignition Drives
• 6 x Auxiliary Outputs (PWM capable)
• 4 x Digital Inputs
• 2 x Temperature Inputs
• 4 x Analog Inputs (0–5V)
• 2 x Trigger Inputs
• 1 x Knock Input (shared)
• +5V Sensor Power Output

⚙️ Engine Compatibility:

• 1–12 Cylinder Distributed / 2–8 Wasted Spark / 1–4 Direct Spark
• Odd Fire, Rotary, 2-Stroke supported
• Supports custom & OEM trigger patterns
• Configurable firing order and TDC points

⛽ Fuel & Ignition Control:

• Up to 440-zone 6D Fuel & Ignition Maps
• Dual Closed-Loop Lambda, AFR correction, overrun fuel cut
• Support for staged injection, asynchronous injection
• Individual trims by cylinder, IAT/ECT compensation

🏁 Motorsport Features:

• Launch Control with 3D fuel/ignition trims
• Antilag with dual 3D tables + cyclic idle
• 2 x VVT Control (fully variable, closed-loop)
• Closed & Open Loop Boost Control (multiple tables)
• Gear shift control via digital inputs

📐 Dimensions & Specifications:

• Dimensions: 126mm (W) x 79mm (L) x 42mm (H)
• Weight: 360g
• Operating Voltage: 8V – 22V
• Internal Temp Range: -10°C to 85°C
• Ambient Temp Range: -30°C to 90°C
• 150MHz Engine Management Processor
• 12-bit ADC, 32-bit floating point processing
• 4GB non-volatile flash, 512MB data logging

📦 What’s Included:

• Link G4X MonsoonX ECU
• USB tuning cable
• Mounting bracket
• Wiring and installation instructions
• 2 x Large Link Stickers
• 2 x Small Link Stickers

📁 Downloads & Resources:

• Quick Start Guide (PDF)
• Installer I/O Table (PDF)
• Wiring Diagram / Pinout (PDF)
