Link G4X Mini R50–R53 Plug-In ECU – MINILink MINIX
Link G4X Mini R50–R53 Plug-In ECU – MINILink MINIX
Couldn't load pickup availability

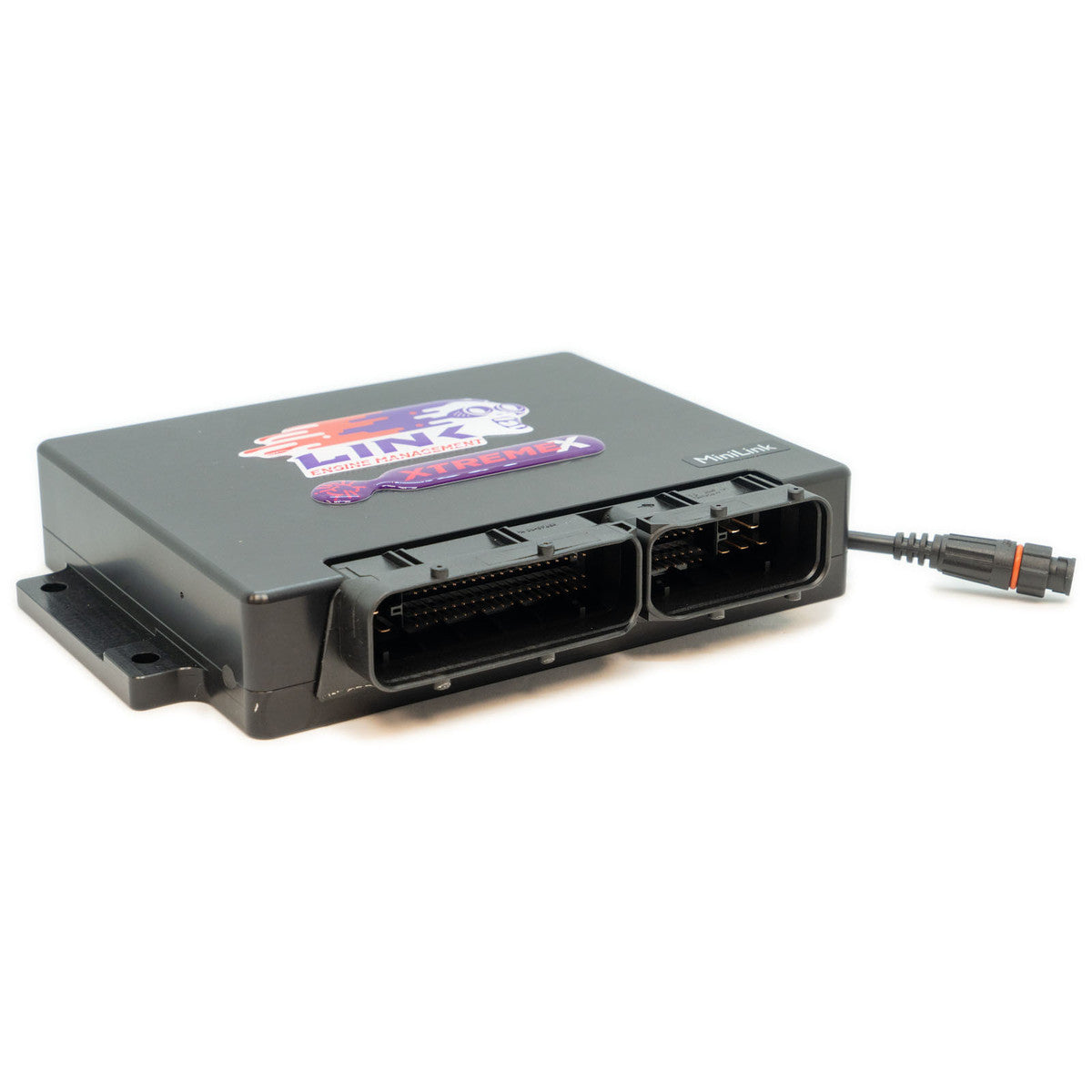

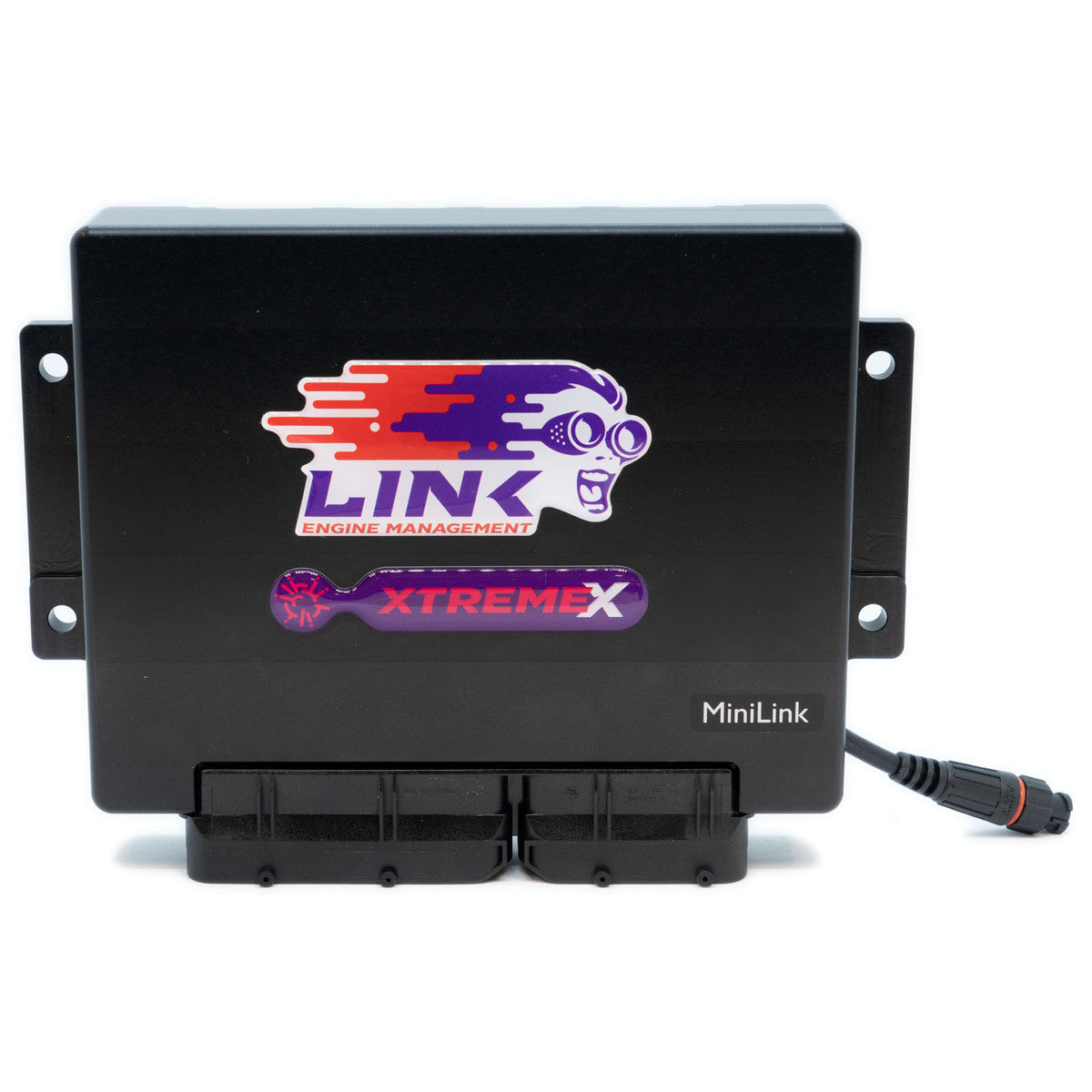

The Link G4X MINILink MINIX ECU is a plug-in standalone ECU designed specifically for Mini R50–R53 models with the 1.6L supercharged Tritec engine. It fits directly into the OEM ECU location and connects to the stock wiring loom. No rewiring is needed for supported vehicles. This ECU delivers modern tuning control in a factory-fit package for manual transmission Minis.
Powered by Link’s latest G4X platform, the MINILink MINIX ECU gives you full control over fuel, ignition, boost, and more. Whether you're chasing performance gains on the street or building a track-ready Mini, this ECU provides reliability, expandability, and serious tuning flexibility.
Note: Only compatible with 1.6L supercharged engines in the R50–R53 Mini chassis. Manual transmission only. An XS Loom and 4 Bar MAP sensor are highly recommended (sold separately). Please confirm your ECU connector matches the product photo before purchasing. Chronopack dash not currently supported.
🚗 Vehicle Compatibility:
- Engine: 1.6L SC Tritec
- Chassis: Mini R50, R52, R53
- Transmission: Manual only
Known compatible models:
Mini Hatch (2001–2006) with supercharged engine
🔧 Key G4X Plug-In Features:
- Plug-in installation with no loom modification
- Up to 6D fuel and ignition mapping
- Closed-loop cam control (up to four cams with independent control)
- Sequential injection and digital triggering
- Full support for OEM idle hardware
- 5D boost control with three switchable tables
- Motorsport features such as launch control, antilag, and flat shift
- Continuous onboard barometric correction
- CAN communication port
- QuickTune for automated fuel tuning
- Individual cylinder correction
- USB tuning cable included
- Gear compensations for spark, boost, and fuel
- Real-time selectable dual maps for fuel, ignition, and boost
- Wide sensor compatibility including Hall, VR, or optical
- Boost control based on gear, speed, or throttle position
- 512MB internal data logging
- Staged injection
- Knock control with windowing
📈 I/O Expansion:
This ECU includes a dedicated expansion connector with the following I/O options:
- Aux1 – Auxiliary output
- DI8 – Digital input
- DI9 – Digital input
- An Temp 3 – Temperature sensor input
- An Temp 4 – Temperature sensor input
- An Volt 10 – 0–5V analog input
- An Volt 11 – 0–5V analog input
- +5V Out – Low current sensor supply
- GND – Sensor ground only
Please refer to the PCLink Help File for full installation details of the Expansion Cable.
