Link Engine Management

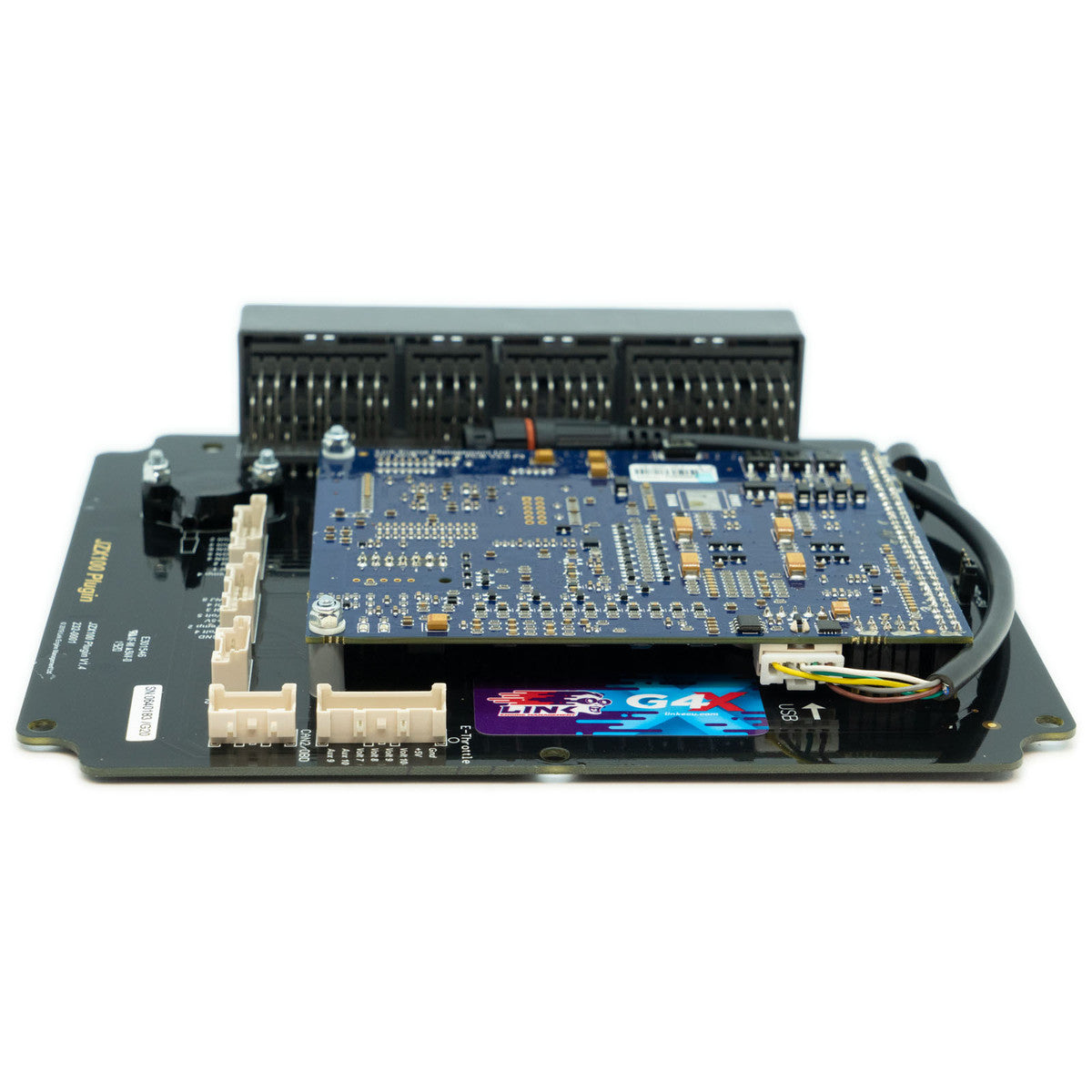

Link G4X JZXLink JZX100X Plug-In ECU for Toyota 1JZ VVTi

Link G4X JZXLink JZX100X Plug-In ECU for Toyota 1JZ VVTi

£1,475.00
£1,475.00
Sale Sold out

Easy to install. Affordable. Reliable.

G4X PlugIn ECUs deliver the latest in engine management technology and are designed to easily maximise the potential of your car. This ECU fits inside the factory OEM enclosure and installs with no changes to the factory wiring loom for the models listed below.

  • Designed for the 1JZ VVTi engine
  • Manual transmission only
  • Onboard 7 bar MAP sensor
  • Most factory features supported

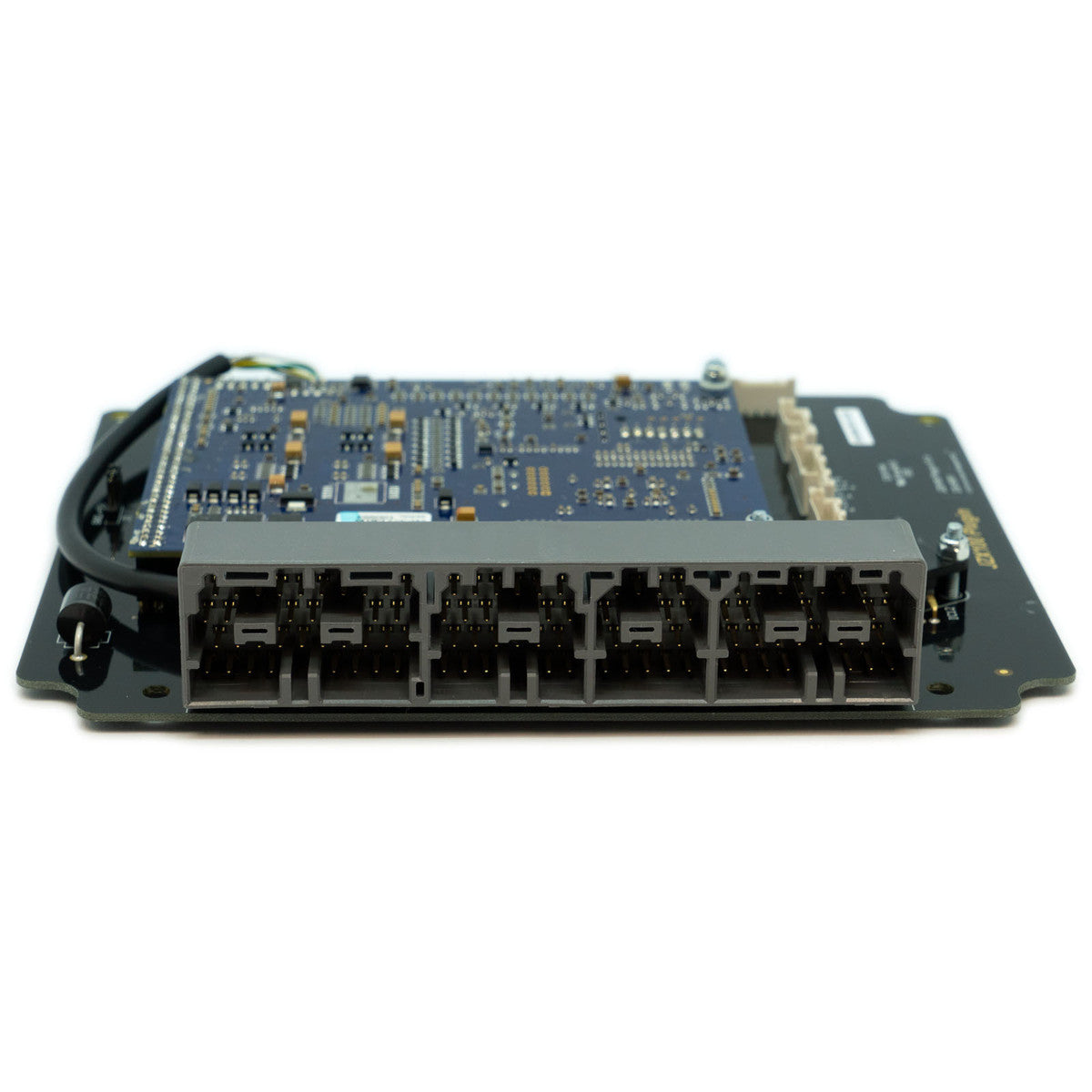

  • Please check your connector matches the header photo before purchasing

Suitable applications

  • Toyota JZX100 — 1JZ VVTi, Manual

G4X PlugIn key features

  • Up to 6D fuel and ignition mapping
  • Precision closed loop cam control (four cam, independent control)
  • Sequential fuel delivery
  • Digital triggering for OEM patterns
  • OEM idle hardware supported
  • 5D boost control with three switchable tables
  • Motorsport features: antilag, launch, flat shift
  • Continuous barometric correction (on board)
  • CAN port
  • QuickTune automated fuel tuning
  • Individual cylinder correction
  • USB tuning cable included
  • On-board stats recording
  • Gear compensations for spark, boost, and fuel
  • Real time selectable dual fuel, ignition, and boost maps
  • Supports Hall effect, VR, or optical sensors for sync and crank
  • Boost control by gear, speed, or throttle position
  • 512 MB on-board logging memory
  • Staged injection
  • Knock control with windowing

I/O expansion options

The following expansion connector inputs and outputs are provided:

Expansion Connector 1 (Con5)

Gnd - Sensor Ground Only
An Volt 4
An Temp 2
+5V Out - Low Current +5V Supply
An Volt 5
DI 3
DI 4
Aux Inj 8

Expansion Connector 2 (Con6)

An Temp 4
DI 1
DI 2
Aux Ign 4
Aux Ign 5
Aux Ign 6
An Volt 1
An Volt 2

E-Throttle Connector

Ethrottle 1 Ground (Signal)
Ethrottle 2 +5V out
Ethrottle 3 An Volt 10
Ethrottle 4 An Volt 9
Ethrottle 5 An Volt 8
Ethrottle 6 An Volt 7
Ethrottle 7 Aux 10
Ethrottle 8 Aux 9
