Link G4X Honda K20A Plug-In ECU – HondaLink K20 (Manual Only)
Link G4X Honda K20A Plug-In ECU – HondaLink K20 (Manual Only)
Couldn't load pickup availability

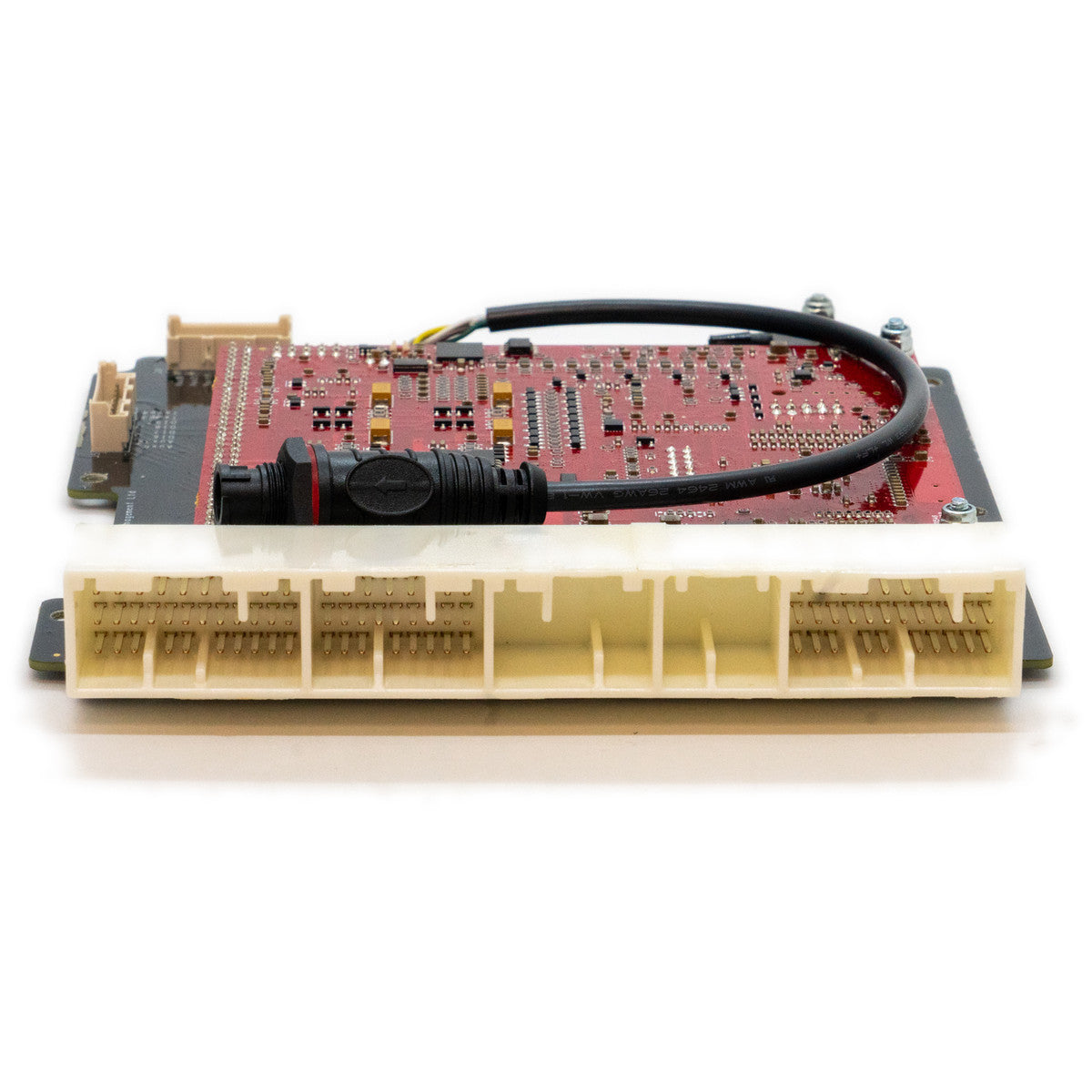

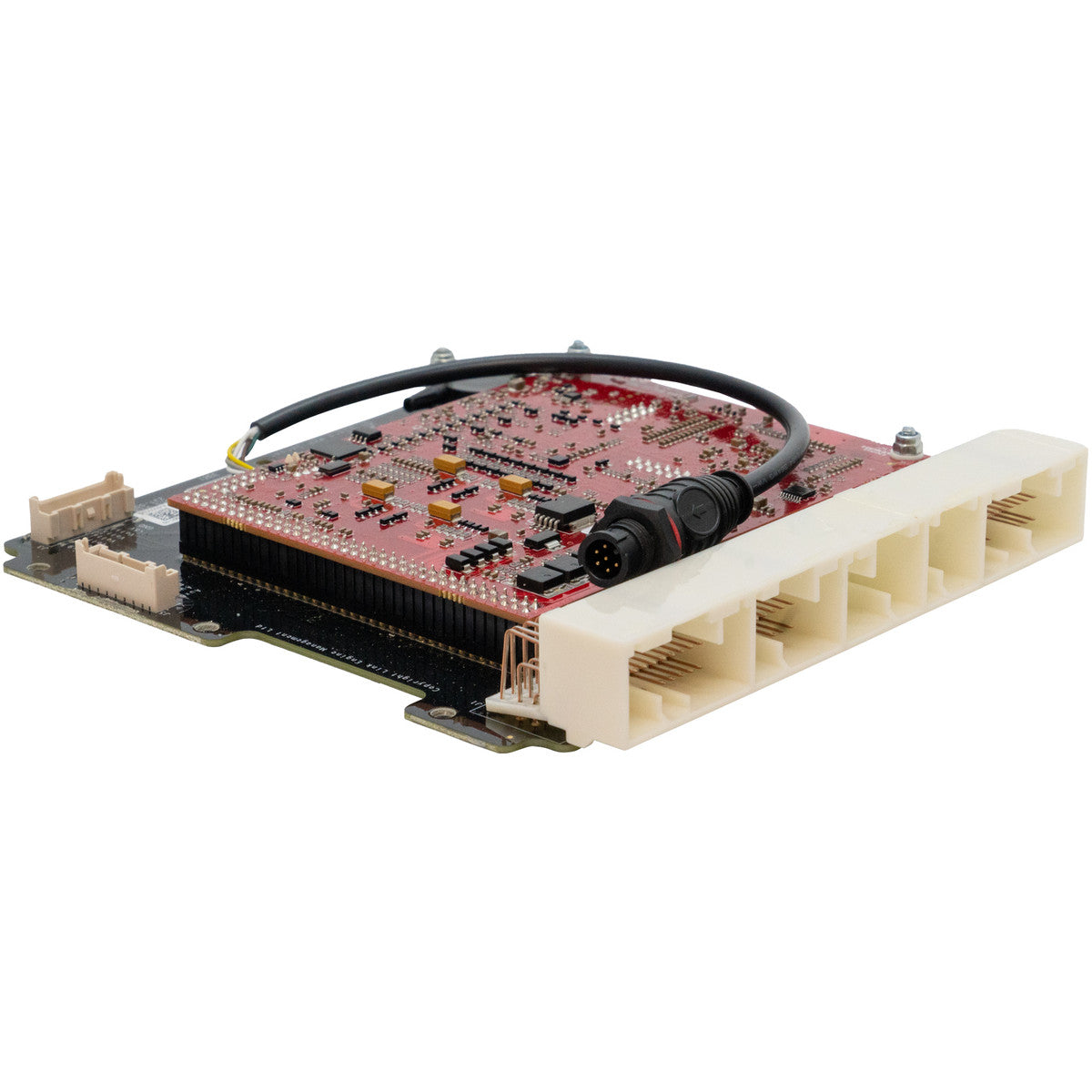

The Link G4X HondaLink K20 ECU is a plug-in standalone ECU designed for Honda and Acura platforms equipped with the K20A, K20A2, K20A3, D17A, or K24A1 engines. This ECU fits directly into the OEM enclosure and connects to the factory wiring harness with no modification required. Built on Link's G4X platform, it delivers precision engine control for street, race, and high-performance applications.
This ECU is designed for manual transmission only vehicles and includes a built-in 7 Bar MAP sensor. It supports most factory features and expands the engine’s potential with advanced tuning options and full control of fuel, ignition, boost, and cam timing.
Note: This ECU includes a new 4-pin powered CAN connector. It is not compatible with the older CANPCB cable. Use the CANJST4 (Code 101-0198) cable to connect CAN devices. This port also supplies 12V power and ground through a 3A self-resetting fuse.
Please ensure your ECU connector matches the product photo before purchasing.
🚗 Vehicle Compatibility:
- Honda Integra Type R DC5 (2002–2004) – K20A / K20A2 / K20A3
- Acura RSX (2002–2004) – K20A / K20A2 / K20A3
- Honda Civic Type R EP3 (2001–2005) – K20A
- Honda Civic Si / SiR (2001–2005) – K20A3
- Honda Civic DX / LX / HX (2001–2005) – D17A1 / A2 / A3
- Honda CR-V (2002–2004) – K24A1
Manual transmission only.
🔧 Key G4X Plug-In Features:
- Plug-in installation with no loom modification
- Up to 6D fuel and ignition mapping
- Closed-loop cam control (up to four cams with independent control)
- Sequential fuel delivery and digital triggering
- OEM idle hardware supported
- 5D boost control with three switchable tables
- Motorsport features: antilag, launch control, flat shift
- Continuous onboard barometric correction
- CAN port with power and ground via CANJST4
- QuickTune – automated fuel tuning
- Individual cylinder correction
- USB tuning cable included
- Gear compensations for spark, boost, and fuel
- Real-time selectable dual maps for fuel, ignition, and boost
- Supports Hall effect, VR, and optical crank and cam sensors
- Boost control by gear, speed, or throttle position
- 512MB internal data logging
- Staged injection
- Knock control with windowing
