Link ECU Honda S2000 AP1 1999-2004 AP2 2005 Non E-throttle Link G4X PlugIn ECU
Link ECU Honda S2000 AP1 1999-2004 AP2 2005 Non E-throttle Link G4X PlugIn ECU
Couldn't load pickup availability

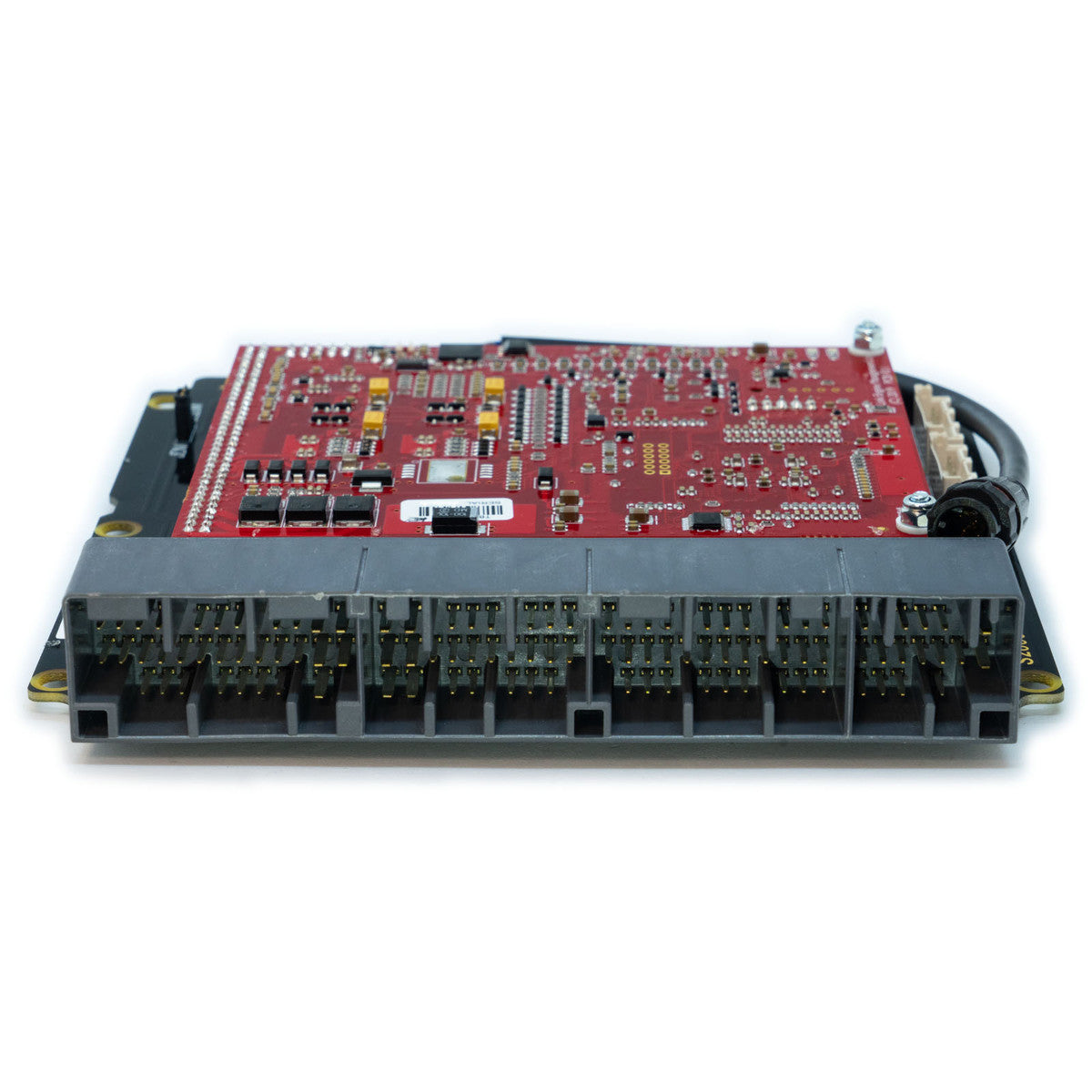

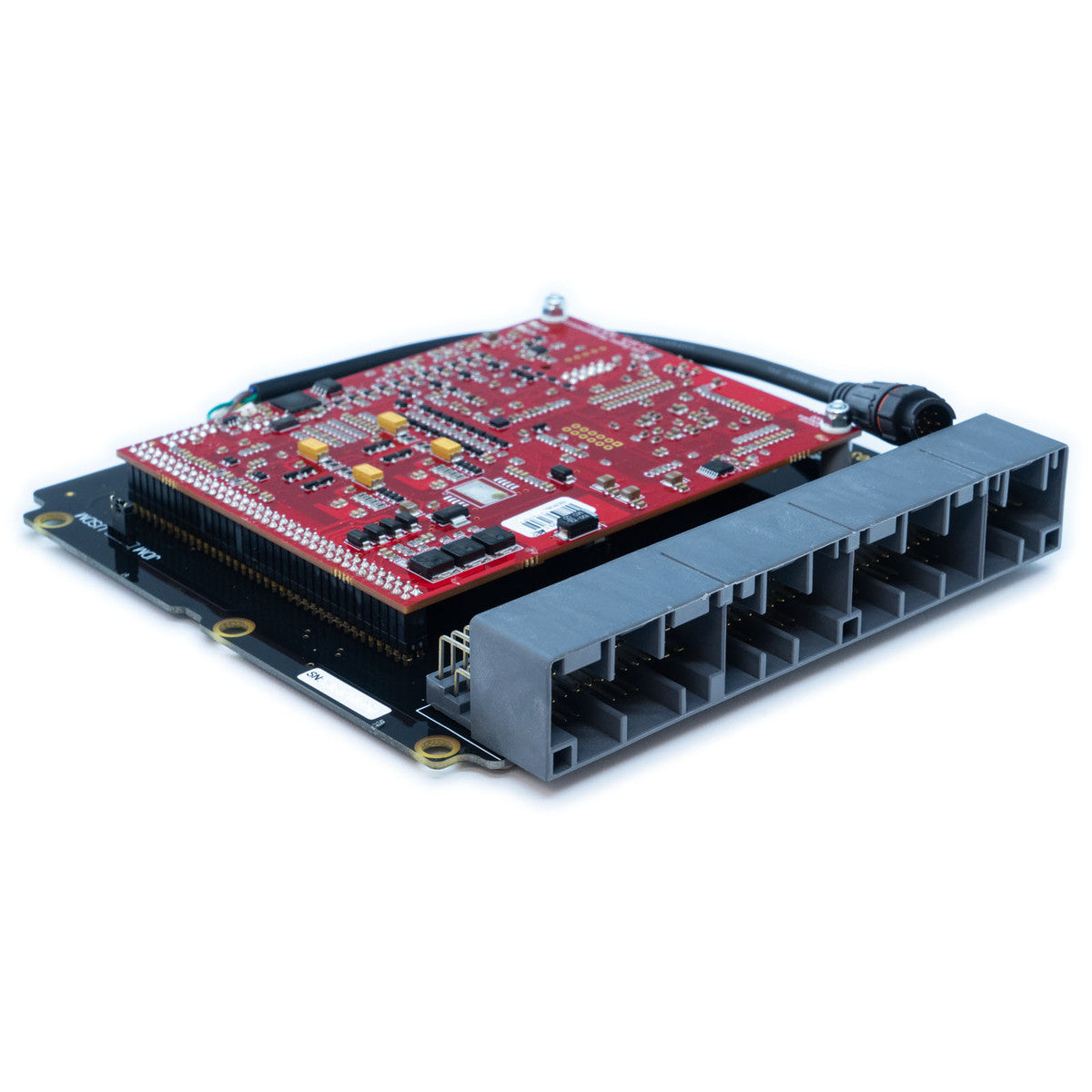

The Link G4X HondaLink AP1 ECU is a plug-in standalone ECU designed specifically for the Honda S2000 AP1 (1999–2004) and AP2 (2005) models with factory cable throttle. It fits inside the OEM ECU enclosure and connects directly to the stock wiring harness. No wiring modification is required, making installation fast and straightforward.
This G4X ECU delivers advanced tuning and engine management capabilities while retaining support for most factory features. Built for manual transmission cars only, it provides tuners with precise control over ignition, fuel, boost, and cam timing — ideal for both street and motorsport builds.
Note: This ECU does not support factory E-throttle models. Before purchase, please confirm that your ECU connector matches the product image. Manual transmission only.
CAN Connector Update: This ECU includes a new 4-pin powered CAN connector. It is not compatible with the older CANPCB cable. Use the CANJST4 (Code 101-0198) cable for connecting CAN devices. This port also provides 12V power and ground with a 3A self-resetting fuse.
🚗 Vehicle Compatibility:
- Honda S2000 AP1 (1999–2004)
- Honda S2000 AP2 (2005, cable throttle only)
Compatible with K20A-style factory wiring. Manual transmission only. Not compatible with E-throttle.
🔧 Key G4X Plug-In Features:
- Plug-in installation with no loom modification
- Up to 6D fuel and ignition mapping
- Closed-loop cam control (up to four cams with independent control)
- Sequential injection and digital triggering
- Support for OEM idle hardware
- 5D boost control with three switchable tables
- Motorsport features: launch control, antilag, and flat shift
- Continuous onboard barometric correction
- CAN port with 12V power and ground via CANJST4
- QuickTune for automated fuel tuning
- Individual cylinder correction
- USB tuning cable included
- Gear compensations for spark, boost, and fuel
- Real-time selectable dual maps for fuel, ignition, and boost
- Compatible with Hall, VR, or optical sensors
- Boost control based on gear, speed, or throttle
- 512MB onboard data logging
- Staged injection
- Knock control with windowing
📈 I/O Expansion Options:
E-Throttle Connector (not supported out of the box)
- E-Throttle 1 – Ground (Signal)
- E-Throttle 2 – +5V Out
- E-Throttle 3 – An Volt 10
- E-Throttle 4 – An Volt 9
- E-Throttle 5 – An Volt 8
- E-Throttle 6 – An Volt 7
- E-Throttle 7 – Aux 10
- E-Throttle 8 – Aux 9
Expansion Connector 1
- Expansion 1 – Ground (Signal)
- Expansion 2 – Aux 11
- Expansion 3 – Aux 6
- Expansion 4 – DI 11
- Expansion 5 – DI 10
- Expansion 6 – DI 9
- Expansion 7 – DI 2
- Expansion 8 – DI 1
Expansion Connector 2
- Expansion 9 – Ground (Signal)
- Expansion 10 – Aux 16
- Expansion 11 – Not connected
- Expansion 12 – Not connected
- Expansion 13 – Not connected
- Expansion 14 – Not connected
- Expansion 15 – An Volt 12
- Expansion 16 – An Volt 6
Please refer to the PCLink Help File for complete installation details.
