Link G4X EVOLink ECU – Mitsubishi Lancer EVO 8 & 9 (3-Plug, EVO9X)
Link G4X EVOLink ECU – Mitsubishi Lancer EVO 8 & 9 (3-Plug, EVO9X)
Couldn't load pickup availability
Easy to install. Affordable. Reliable.
G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car.
This ECU fits inside the factory OEM enclosure. Installation of the processing unit is a breeze, with no alteration of the factory wiring loom required for the models listed below.
This ECU is designed for the EVO 9 4G63 engine.

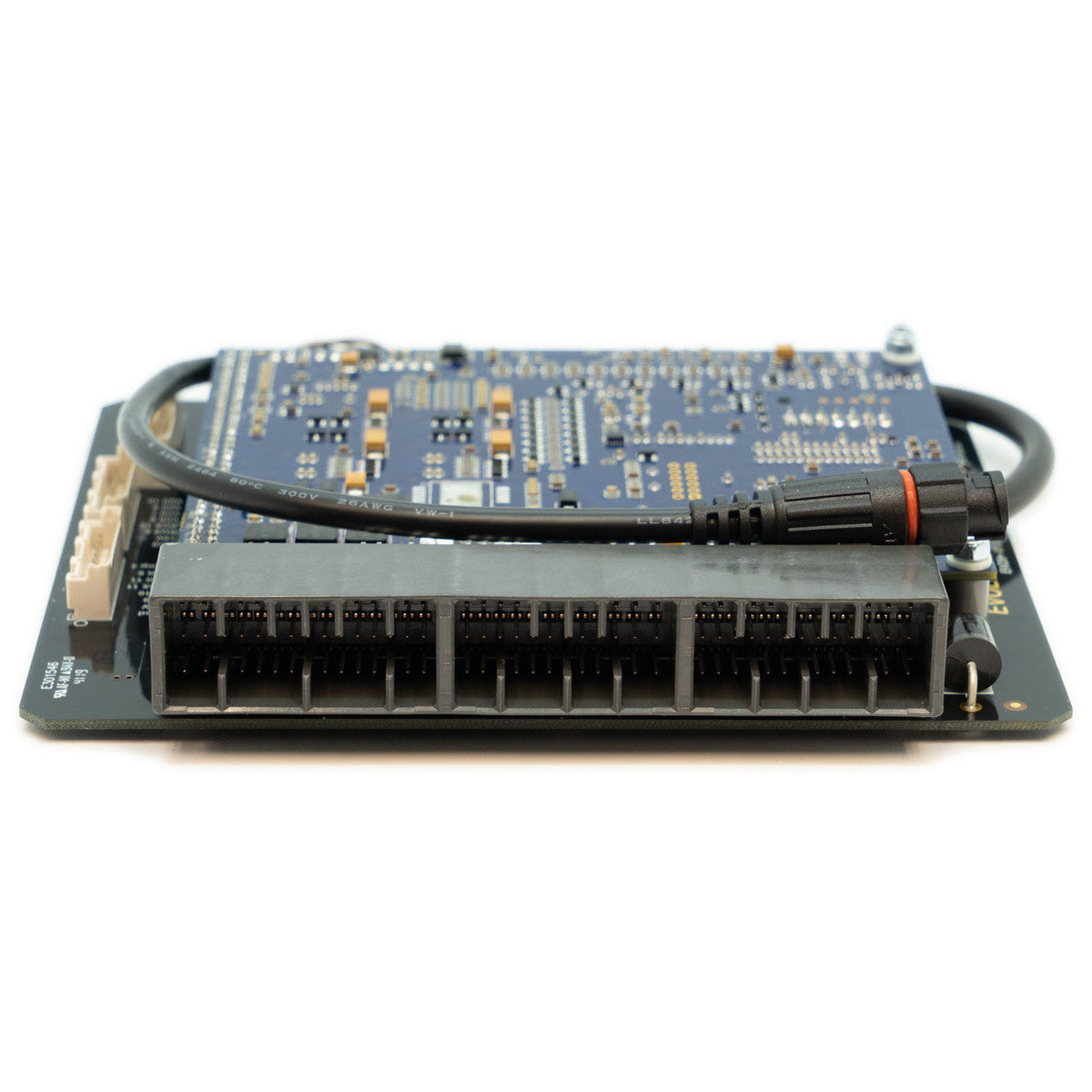

Please check your connector matches the header in the listed photo before purchasing.
This ECU works for manual transmissions only.
Includes onboard 7 bar MAP sensor.
Most factory features are supported.
Check the features tab for I/O input & output expansion options.
🚗 Suitable Applications for 204-4000 Automotive Computer Unit:
- CT9A Lancer Evolution 9 (2005–2007)
- CT9A Lancer Evolution 8 (2003–2005) with 3 plug ECU ONLY
- Any EVO8 car with a 3 plug ECU will also require this ECU.
🔧 G4X PlugIn Key Features (where applicable):
- Up to 6D fuel and ignition mapping
- Precision closed loop cam control (four cam, independent control)
- Sequential fuel delivery
- Digital triggering, all OEM patterns
- OEM idle hardware supported
- 5D boost control with three switchable tables
- Motorsport features – antilag, launch, flat shift
- Continuous barometric correction (on board)
- CAN port
- QuickTune – automated fuel tuning
- Individual cylinder correction
- USB tuning cable included
- Stats recording into on-board memory
- Gear compensations for spark, boost and fuel
- Real time selectable dual fuel, ignition and boost maps
- Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
- Boost control referenced to gear, speed or throttle position
- 512 mega bytes data logging memory within data storage unit
- Staged injection
- Knock with "windowing"
📈 I/O Expansion Options:
The following expansion connector inputs/outputs are provided:
Expansion Connector 1:
Gnd – Sensor Ground Only
+5V Out – Low Current +5V Supply
DI 9 – Digital Input
DI 10 – Digital Input
Aux 11 – Auxiliary Output
An Volt 11 – Analog 0–5V input
An Volt 8 – Analog 0–5V input
An Temp 4 – Temperature sensor input
Expansion Connector 2:
Gnd – Sensor Ground Only
+5V Out – Low Current +5V Supply
Aux 9 – EThrottle (can't be used as an Aux out)
Aux 10 – Auxiliary Output
An Volt 6 – Analog 0–5V input
An Volt 7 – Analog 0–5V input
An Volt 9 – Analog 0–5V input
An Volt 10 – Analog 0–5V input
