Link Engine Management

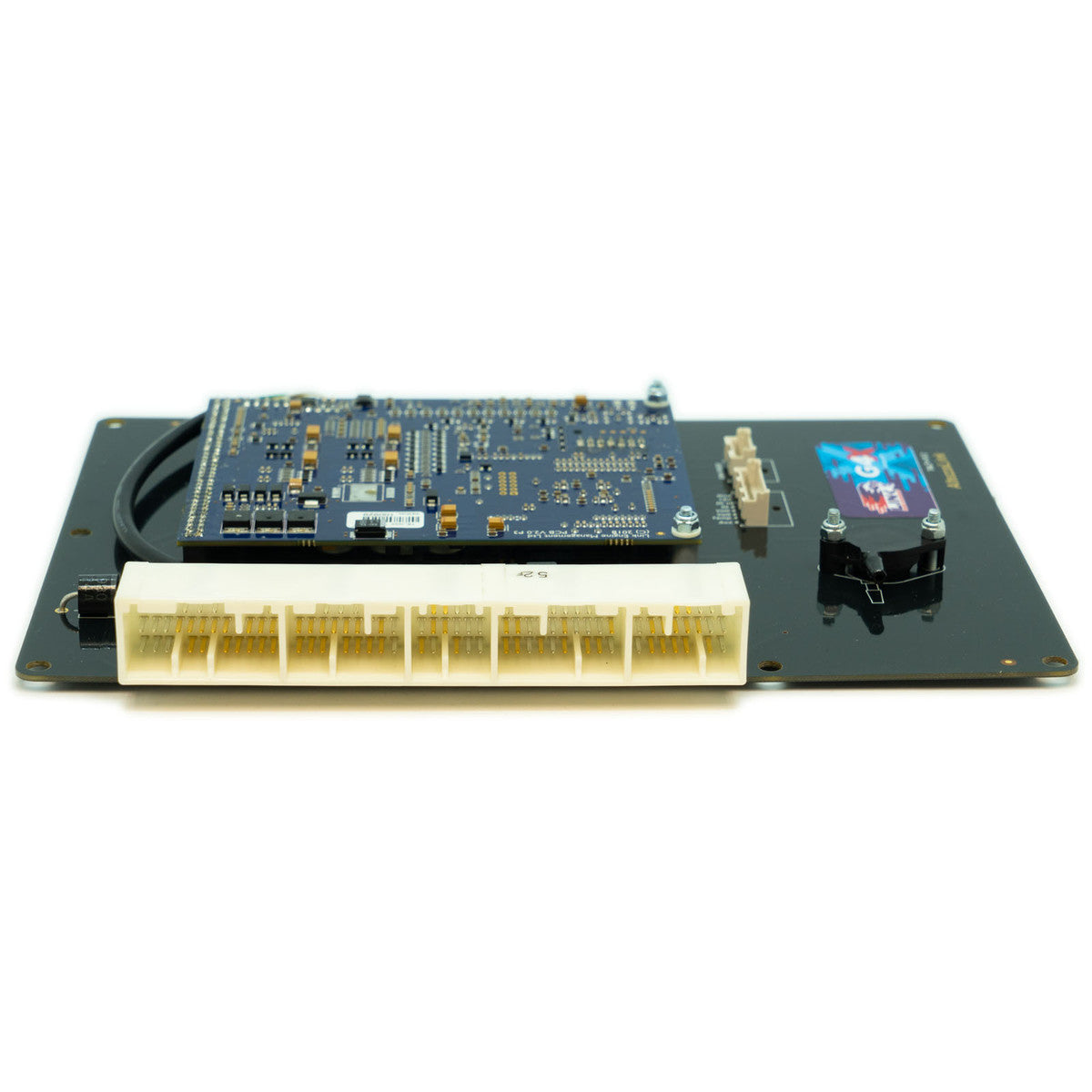

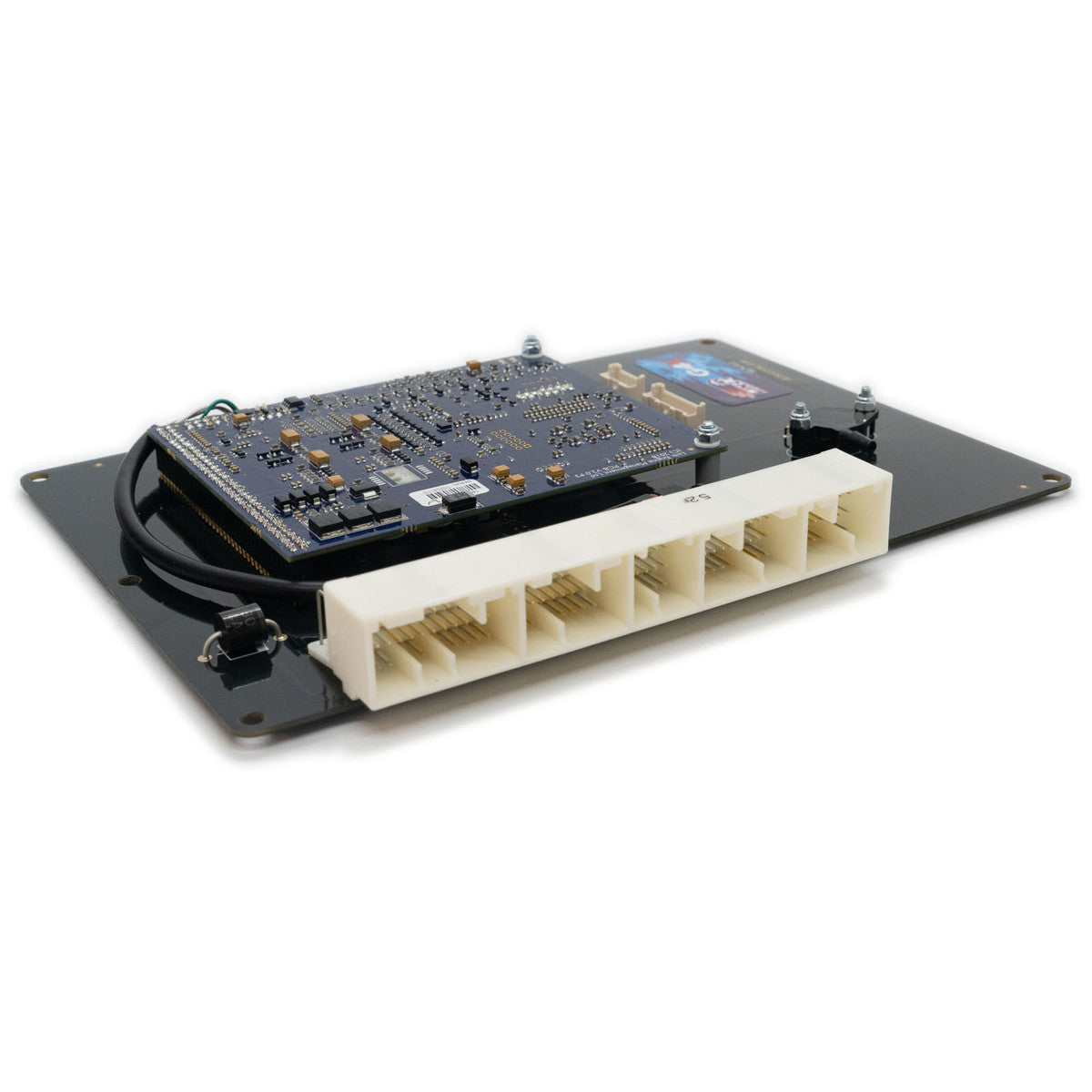

Link G4X AltezzaLink TALTX Plug-In ECU for Toyota 3SGE Beams

Link G4X AltezzaLink TALTX Plug-In ECU for Toyota 3SGE Beams

£1,145.00
£1,145.00
Sale Sold out

Easy to install. Affordable. Reliable.

G4X PlugIn ECUs deliver the latest in engine management technology and are designed to maximise the potential of your car. This ECU fits inside the factory OEM enclosure and installs with no changes to the factory wiring loom for the models listed below.

  • Designed for the 3SGE Beams engine
  • Manual transmission only
  • Onboard 4 bar or 7 bar MAP sensor
  • Most factory features supported
  • Please check your connector matches the header photo before purchasing

Suitable applications

  • 1998–2001 Toyota Altezza (XE10)
  • Lexus IS200 (GXE10)

G4X PlugIn key features

  • Up to 6D fuel and ignition mapping
  • Precision closed loop cam control (four cam, independent control)
  • Sequential fuel delivery
  • Digital triggering for OEM patterns
  • OEM idle hardware supported
  • 5D boost control with three switchable tables
  • Motorsport features: antilag, launch, flat shift
  • Continuous barometric correction (on board)
  • CAN port
  • QuickTune automated fuel tuning
  • Individual cylinder correction
  • USB tuning cable included
  • On-board stats recording
  • Gear compensations for spark, boost, and fuel
  • Real time selectable dual fuel, ignition, and boost maps
  • Supports Hall effect, VR, or optical sensors for sync and crank
  • Boost control by gear, speed, or throttle position
  • 512 MB on-board logging memory
  • Staged injection
  • Knock control with windowing

I/O expansion options

The following expansion connector inputs and outputs are provided:

Gnd         Sensor Ground Only
+5V Out     Low Current +5V Supply
DI 10       Digital Input (switching functions)
DI 9        Digital Input (switching functions)
An Volt 9   Analog 0-5V input
An Volt 8   Analog 0-5V input
An Temp 4   Temperature sensor input
Aux 8       Auxiliary output (2.0 A max to GND, 0.5 A max when driving high)
