Link G4X 300ZLink N300X ECU for Nissan 300ZX Z32 VG30DE / VG30DETT

Link G4X 300ZLink N300X ECU for Nissan 300ZX Z32 VG30DE / VG30DETT

£1,355.00
£1,355.00
Sale Sold out

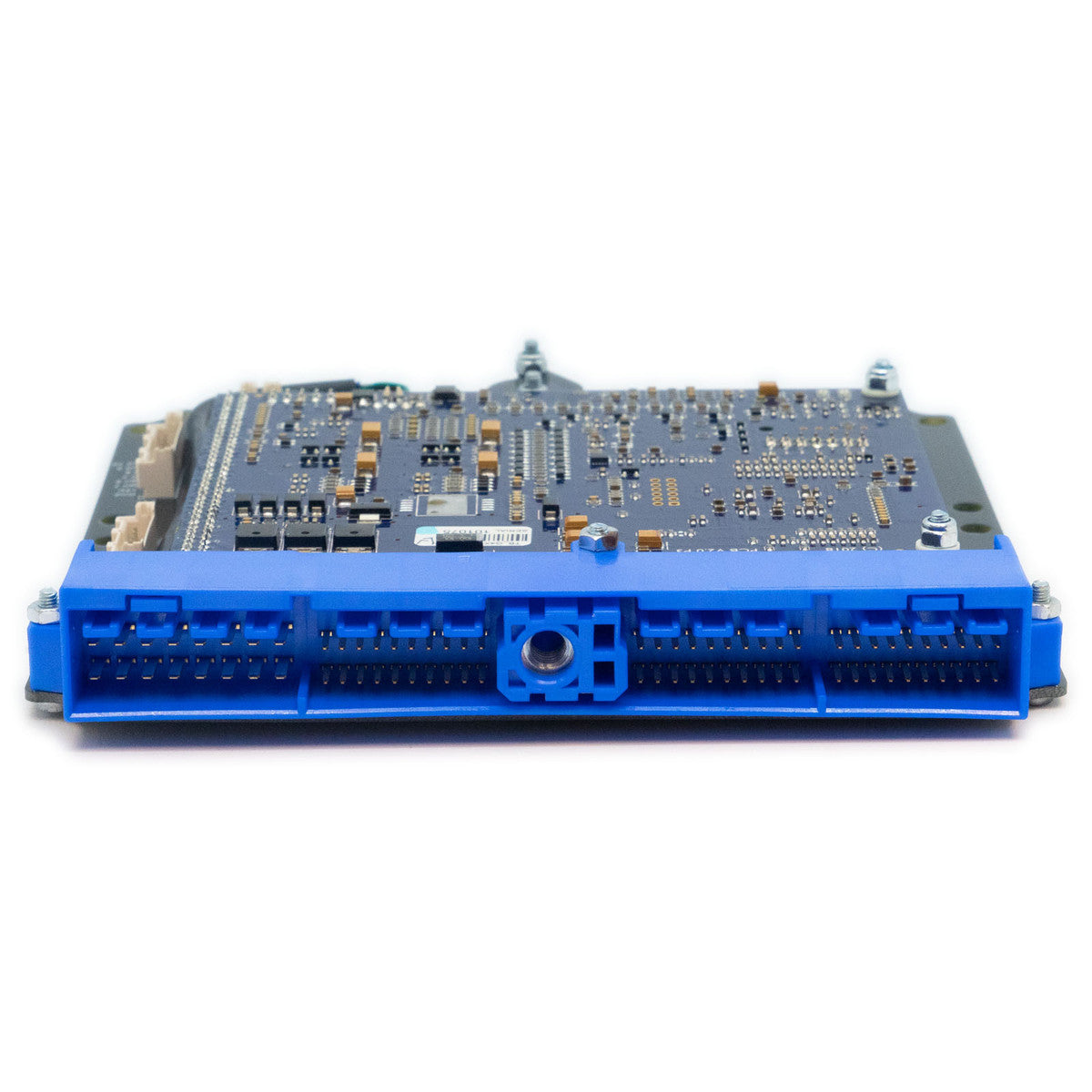

300ZLink N300X: Plug-In ECU for Nissan 300ZX Z32 with VG30DE / VG30DETT Engine

Easy to install. Affordable. Reliable.
Link’s G4X Plug-In ECUs offer the latest in engine management technology, designed to easily maximize the potential of your car. This ECU fits inside the factory OEM enclosure with no alteration to the wiring loom for supported models.

The N300X ECU is designed to suit the VG30DE and VG30DETT engine. Please confirm your connector matches the product image before purchasing.

Important Notes:

  • ✅ Manual transmissions only
  • ✅ Onboard 4 Bar or 7 Bar MAP sensor
  • ✅ Most factory features supported
  • 🔧 Highly recommended to install an IAT sensor
  • ⚙️ Requires modification before E-Throttle is usable

✅ Suitable Applications

  • Nissan 300ZX Z32 VG30DE
  • Nissan 300ZX Z32 VG30DETT

🔧 G4X Plug-In ECU Key Features (where applicable):

  • Up to 6D fuel and ignition mapping
  • Precision closed loop cam control (four cam, independent control)
  • Sequential fuel delivery
  • Digital triggering, all OEM patterns
  • OEM idle hardware supported
  • 5D boost control with three switchable tables
  • Motorsport features: antilag, launch, flat shift
  • Continuous barometric correction (on board)
  • CAN port
  • QuickTune – automated fuel tuning
  • Individual cylinder correction
  • USB tuning cable included
  • Data logging into on-board memory (512MB)
  • Gear compensations for spark, boost, and fuel
  • Real-time selectable dual fuel, ignition, and boost maps
  • Compatible with Hall effect, VR, or optical sensors
  • Boost control by gear, speed, or throttle position
  • Staged injection
  • Knock control with "windowing"

🧩 I/O Expansion Options

The following expansion connector inputs/outputs are provided:

Expansion Connector 1

  • GND – Sensor Ground Only
  • +5V Out – Low Current +5V Supply
  • DI 5 – Digital Input
  • DI 6 – Digital Input
  • Volt 8 – Analog Volt Input
  • Volt 7 – Analog Volt Input
  • Temp 3 – Analog Temp Input
  • Temp 4 – Analog Temp Input

Expansion Connector 2

  • Gnd – Sensor Ground Only
  • +5V Out – Low Current +5V Supply
  • Ign 7 – Ignition 7 Auxiliary Output
  • Ign 8 – Ignition 8 Auxiliary Output
  • DI 7 – Digital Input
  • DI 8 – Digital Input
  • An Volt 9 – Analog 0–5V Input
  • An Volt 10 – Analog 0–5V Input

📘 Downloadable Resources

Need more I/O? Add an XS Expansion Loom for even greater flexibility.
