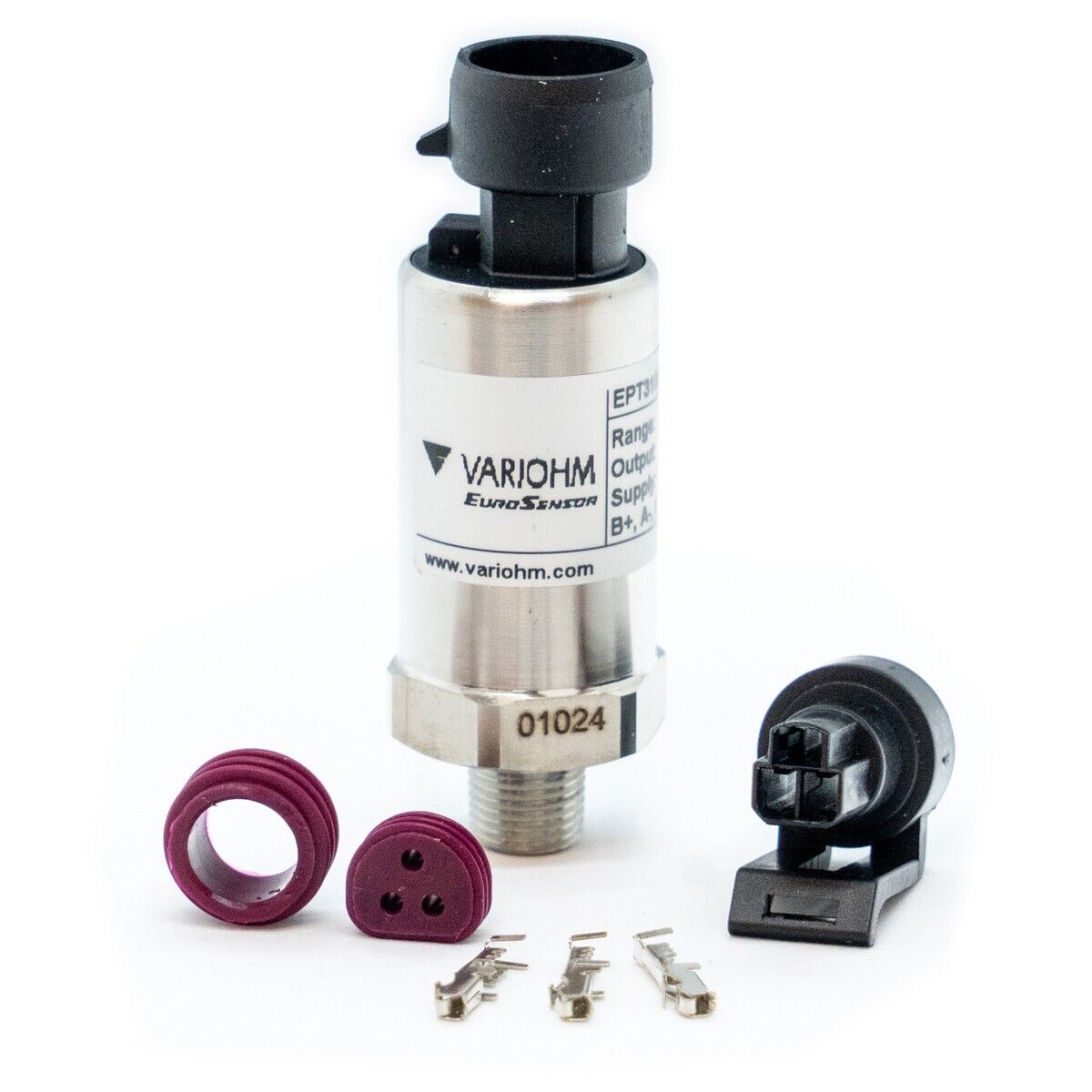

LINK ECU G4 & G4+ & G4X 5 Bar MAP Variohm Eurosensor Sensor EU MAP5EU

The 5 Bar MAP Variohm Eurosensor reads up to 4 Bar absolute pressure.

This means that it is suitable for turbo or supercharged applications running up to 4 Bar (or 58psi) of boost pressure.

• Includes Plug and Pins
• Push wire through connector; crimp on terminal; pull wire/terminal back into connector
• Using Link G4/G4+/G4X ECU’s select the MAP sensor type in PC Link as ‘Variohm 5 Bar’

 Calibration - 0kpa = 0.5v, 500kpa = 4.5v
