Link ECU CAN Bus Keypad Keyboard Switches - 12 button

Link ECU CAN Bus Keypad Keyboard Switches - 12 button

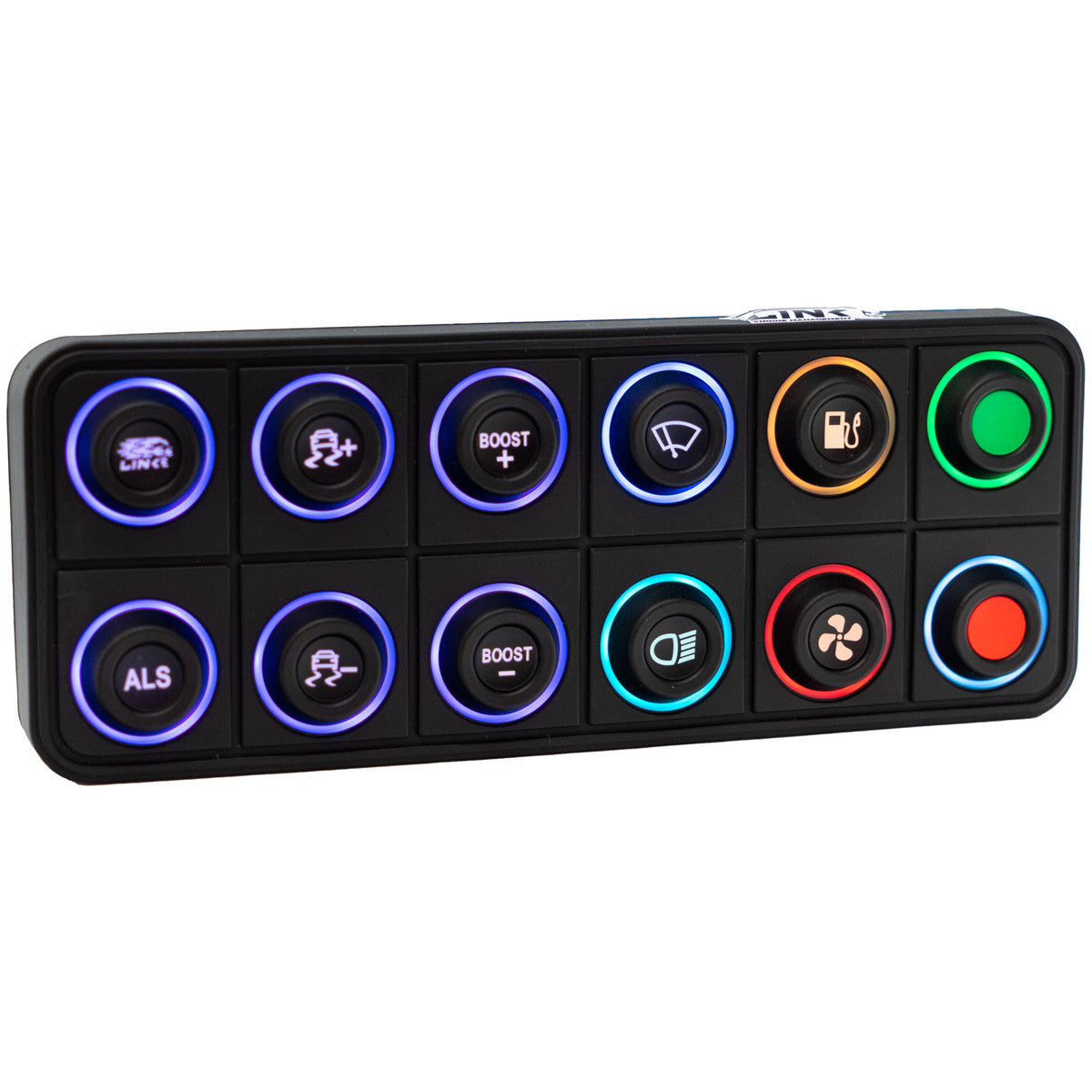

Rugged 12 key CAN Keypad with interchangeable 15mm inserts. Custom button inserts and configurable RGB indicator rings per button allow for extremely flexible set-ups. The keypad is designed for ultimate reliability - IP67/IP69K water and dust resistant, -40 to +70 operating temperature range, UV 400hrs, salt spray resistant and switches rated to 3 million operations. Can be installed both inside and outside, perfect for street, track and off-road use.

Note: Keypad ships with empty button inserts, inserts need to be selected and purchased individually. 1 x Link ECU Logo Button Insert included in box loose.

Features

•CAN Configurable with G4X PC Link – Change LED backlight, Individual button indicator ring colour, programmable to show change in status, Multiple modes including momentary, latched and toggle configurable

•Customizable Button Inserts – The replacement system for individual

inserts makes modifying the keypad layout simple and economical

•IP67/IP69K Waterproof rating – Guaranteed to be dust tight

and sealed against water immersion to a depth of 1 meter for up

to 1 hour. The IP69K rating provides protection against high

pressure water at high temperature spray downs.

•Compatible with all G4X ECU’s

Box Contents

1 x 12 Button CAN Keypad

1 x DTM4 Mating Connector Kit

1 x Link Sticker

1 x Keypad Button Insert – Link Logo
