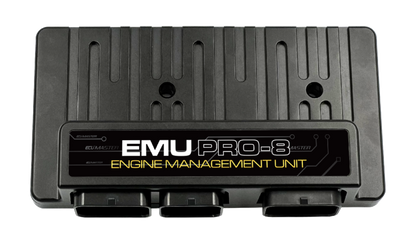

ECUMaster EMU PRO-8 Wire-In ECU

The ECUMaster EMU PRO-8 is a professional motorsport wire-in engine management system designed for advanced engines requiring maximum control and flexibility. It is aimed at high level race and specialist builds where precise calibration and extensive strategy control are critical.

Engine control capability

The EMU PRO-8 supports advanced engine configurations and control strategies:

• Support for up to 8 cylinder engines
• Four-stroke, two-stroke, and rotary engine support
• Sequential fuel injection
• Direct control of passive and smart ignition coils
• Drive by wire throttle control with safety monitoring
• Up to 4 variable valve timing channels

Hardware and platform

• IP65 CNC machined aluminium enclosure
• Automotive grade components rated from -40°C to +105°C
• Integrated wideband lambda controllers (2 × Bosch LSU 4.9)
• Integrated MAP sensor
• Two knock sensor inputs

Inputs and outputs

• 31 total outputs
• 24 total inputs
• 4 EGT inputs or high precision analogue inputs
• Dual drive by wire throttle support
• Flex fuel ethanol content sensor input

Communications

• USB connection for tuning and configuration
• Dual CAN 2.0A/B buses
• LIN bus support
• CAN integration for dashes, keypads, and expansion devices

Data logging

• Logging to external USB memory
• Up to 500 Hz logging frequency
• Live data analysis within EMU PRO software

Software

The EMU PRO-8 runs EMU PRO software and supports free firmware updates.

• Fully configurable table sizes up to 32 × 32
• Advanced fueling models with closed loop correction
• Custom user functions, tables, and logic

Motorsport features

• Launch control and flat shift
• Paddle shift and sequential gearbox strategies
• Advanced traction control
• Anti lag and rolling anti lag
• Comprehensive engine protection strategies

Notes

• Direct injection engines require the ECUMaster GDI Driver expansion module

Recommended applications

The EMU PRO-8 is intended for professional motorsport and high end performance builds where advanced control, extensive I/O, and maximum flexibility are required.

What’s included

• ECUMaster EMU PRO-8 ECU
• USB cable
• ECU connectors and terminal set
