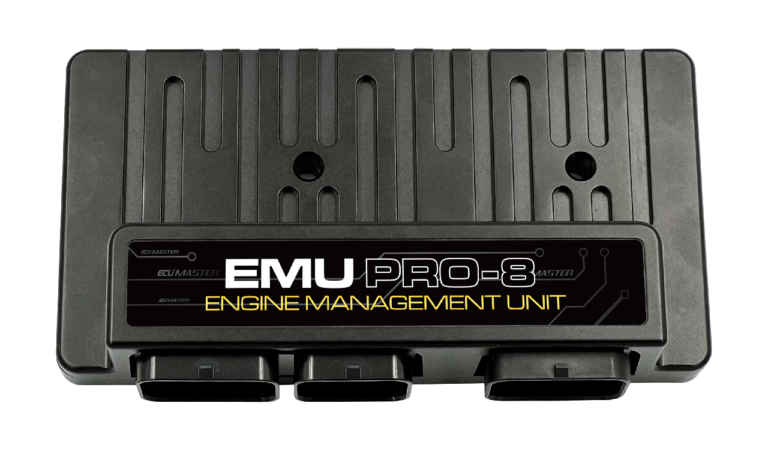

ECUMaster EMU Pro 8 Engine Management System

The ECUMaster EMU Pro 8 is a stand-alone engine management system designed for professional motorsport, delivering precise powertrain control and unparalleled flexibility for the most demanding projects. Ideal for engines up to 8 cylinders, it offers advanced calibration options, a comprehensive feature set, and the durability required for competitive racing environments.

Key Features

• Advanced fueling model with closed-loop short- and long-term trim algorithms and fuel film modeling for exceptional injector control accuracy.
• Highly flexible software with adjustable table sizes (up to 32x32x15) and customizable axis channels and bin values.
• Support for four-stroke, two-stroke, and rotary engines up to 12 cylinders (Pro 8 supports up to 8).
• Dual Bosch LSU 4.9 wideband controllers with support for up to 4 sensors.
• Dual Drive-By-Wire throttle control with auto-calibration.
• Sequential gearbox/paddle-shift strategies with up to 4 closed-loop stages and PWM solenoid control.
• Up to 4 VVT support with auto-calibration.
• 2 x CAN 2.0A/B, 1 x LIN bus communications.
• Logging to external USB memory at up to 500 Hz.
• IP65 water-resistant CNC-machined aluminum enclosure for motorsport durability.

Specifications – EMU Pro 8

• Dimensions: 165 x 95 x 38 mm
• Weight: 464 g
• Outputs: 31 total
• Inputs: 24 total
• EGT Inputs: 4 (or high-precision analog)
• Knock Sensors: 2 channels
• Custom user functions, numbers, tables, and outputs

Downloads

• 📘 EMU Pro 8 Drawing (PDF)
• 🧰 Detailed Wiring Pinout (PDF)
• 🛠️ Simple Wiring Pinout (PDF)
• 📦 CAD Files (ZIP)

Professional installation and calibration are recommended to achieve optimal performance and reliability.
