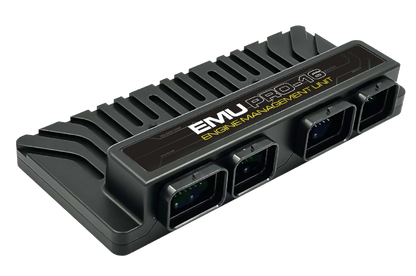

ECUMaster EMU PRO-16 Wire-In ECU

The ECUMaster EMU PRO-16 is a professional motorsport wire-in engine management system designed for the most demanding engine and vehicle control applications. It offers maximum I/O capacity, advanced strategy support, and extreme flexibility for high end race and specialist builds.

Engine control capability

The EMU PRO-16 supports complex engine configurations and advanced control strategies:

• Support for up to 12 cylinder engines
• Four-stroke, two-stroke, and rotary engine support
• Sequential fuel injection
• Direct control of passive and smart ignition coils
• Drive by wire throttle control with advanced safety monitoring
• Up to 4 variable valve timing channels

Hardware and platform

• IP65 CNC machined aluminium enclosure
• Automotive grade components rated from -40°C to +105°C
• Integrated wideband lambda controllers (2 × Bosch LSU 4.9)
• Integrated MAP sensor
• Two knock sensor inputs

Inputs and outputs

• 46 total outputs
• 30 total inputs
• 8 EGT inputs or high precision analogue inputs
• Dual drive by wire throttle support
• Flex fuel ethanol content sensor input

Communications

• USB connection for tuning and configuration
• Dual CAN 2.0A/B buses
• LIN bus support
• CAN integration for dashes, keypads, and expansion devices

Data logging

• Logging to external USB memory
• Up to 500 Hz logging frequency
• Live data analysis within EMU PRO software

Software

The EMU PRO-16 runs EMU PRO software and supports free firmware updates.

• Fully configurable table sizes up to 32 × 32
• Advanced fueling models with closed loop correction
• Custom user functions, tables, and logic

Motorsport features

• Launch control and flat shift
• Paddle shift and sequential gearbox strategies
• Advanced traction control
• Anti lag and rolling anti lag
• Comprehensive engine protection strategies

Notes

• Direct injection engines require the ECUMaster GDI Driver expansion module

Recommended applications

The EMU PRO-16 is intended for professional motorsport and high end performance builds requiring maximum I/O capacity, advanced control strategies, and extensive CAN integration.

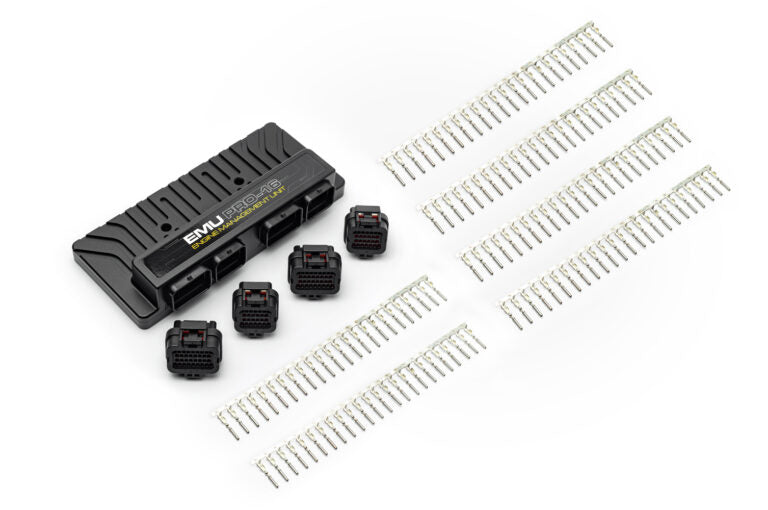

What’s included

• ECUMaster EMU PRO-16 ECU
• USB cable
• ECU connectors and terminal set
