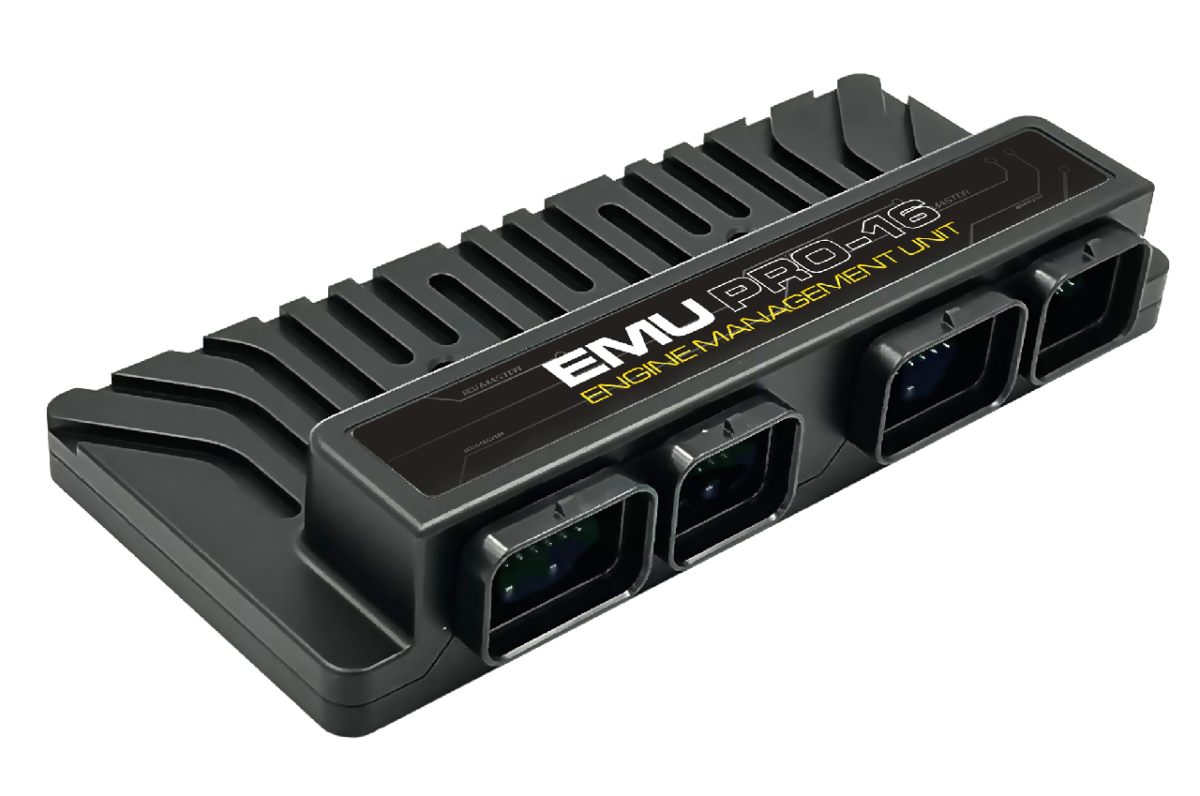

ECUMaster EMU Pro 16 Engine Management System

The ECUMaster EMU Pro 16 is a stand-alone engine management system built for professional motorsport, offering exceptional powertrain control and calibration flexibility for the most demanding projects. With expanded inputs and outputs compared to the Pro 8, the EMU Pro 16 is ideal for high-cylinder-count engines and advanced motorsport builds.

Key Features

• Advanced fueling model with closed-loop short- and long-term trims plus fuel film compensation
• Adjustable table sizes up to 32×32×15 with fully configurable axes and bin values
• Custom functions, channels, and CAN inputs/outputs for complete flexibility
• Sequential gearbox/paddle-shift strategy with up to 4 closed-loop stages and PWM solenoid control
• Supports four-stroke, two-stroke, and rotary engines (up to 12 cylinders)
• Dual Bosch LSU 4.9 wideband controllers with support for up to 4 sensors
• Dual drive-by-wire throttle control with auto-calibration
• Up to 4 VVT cam control channels with auto-calibration
• 2 × CAN 2.0A/B, 1 × LIN bus
• USB logging up to 500 Hz in an IP65 CNC-machined aluminium enclosure

Specifications – EMU Pro 16

• Dimensions: 197 × 95 × 38 mm
• Weight: 561 g
• Outputs: 46 total
• Inputs: 30 total
• EGT inputs: 8 (or high-precision analog)
• Knock sensors: 2 channels

Downloads

• 📘 EMU Pro 16 Drawing (PDF)
• 🧰 Detailed Wiring Pinout (PDF)
• 🛠️ Simple Wiring Pinout (PDF)
• 📦 CAD Files (ZIP)

Professional installation and calibration are recommended for optimal performance and reliability.
