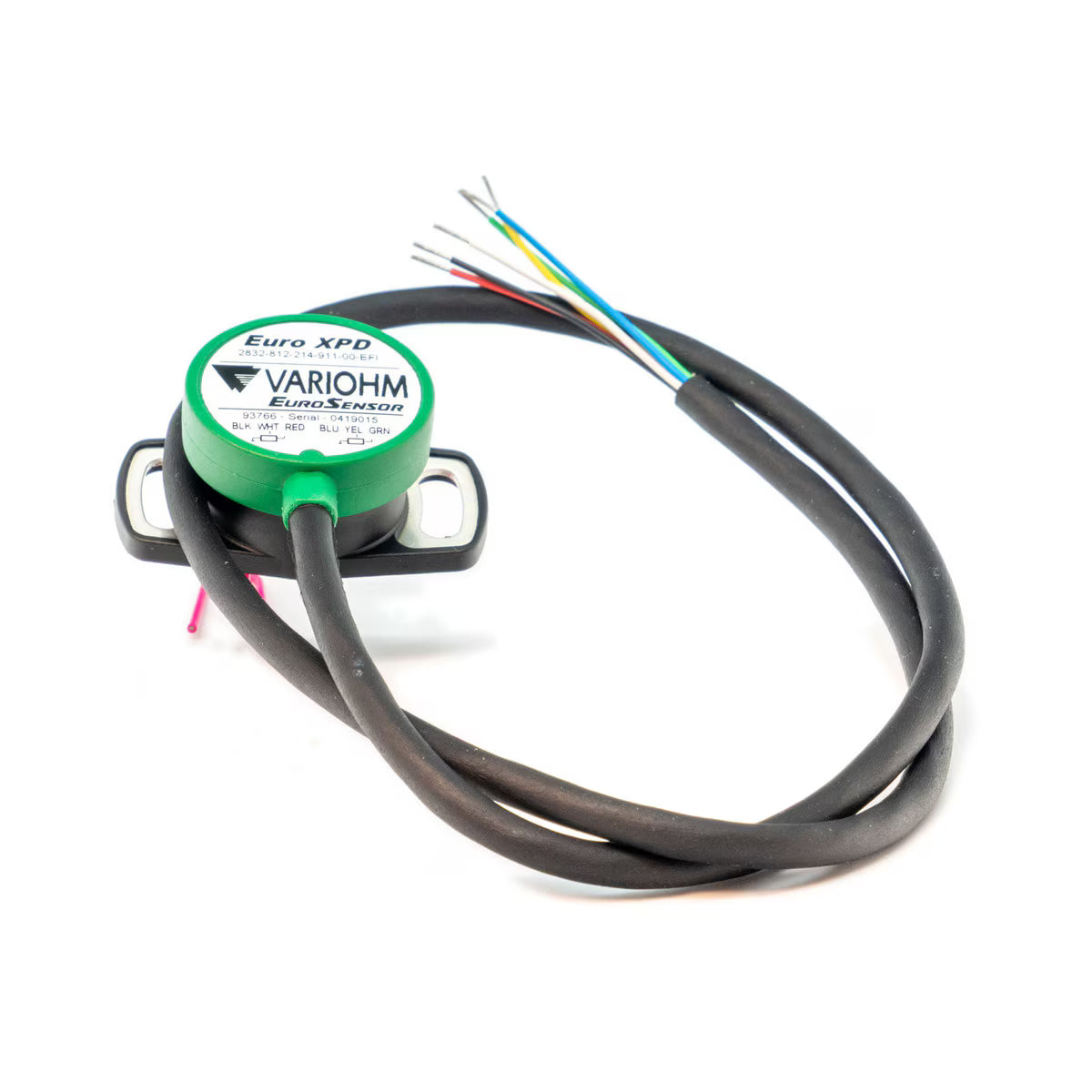

Link Throttle Position Sensor (TPS CW/CCW)

The Link Throttle Position Sensor (TPS) is a non-contact rotary sensor designed for accurate throttle position measurement. It supports both clockwise and counter-clockwise installations and is suitable for motorsport and high-performance applications.

What it’s used for

• Measuring throttle position for fuel and ignition control
• Drive-by-cable throttle setups
• Custom throttle body installations

Compatibility

• Link G4
• Link G4+
• Link G4X
• Link Wire-In ECUs
• Link Plug-In ECUs
• PCLink software

Notes

• Supports clockwise and counter-clockwise rotation
• Wiring instructions supplied in the box

Specifications

• Sensor type: Hall effect, non-contact
• Output type: Redundant analogue outputs
• Shaft type: 8 mm D-shaft
• Mounting pattern: 32 mm PCD
• Protection rating: IP68
• Wiring: 6 wire flying lead
• Design: Long life, high durability
