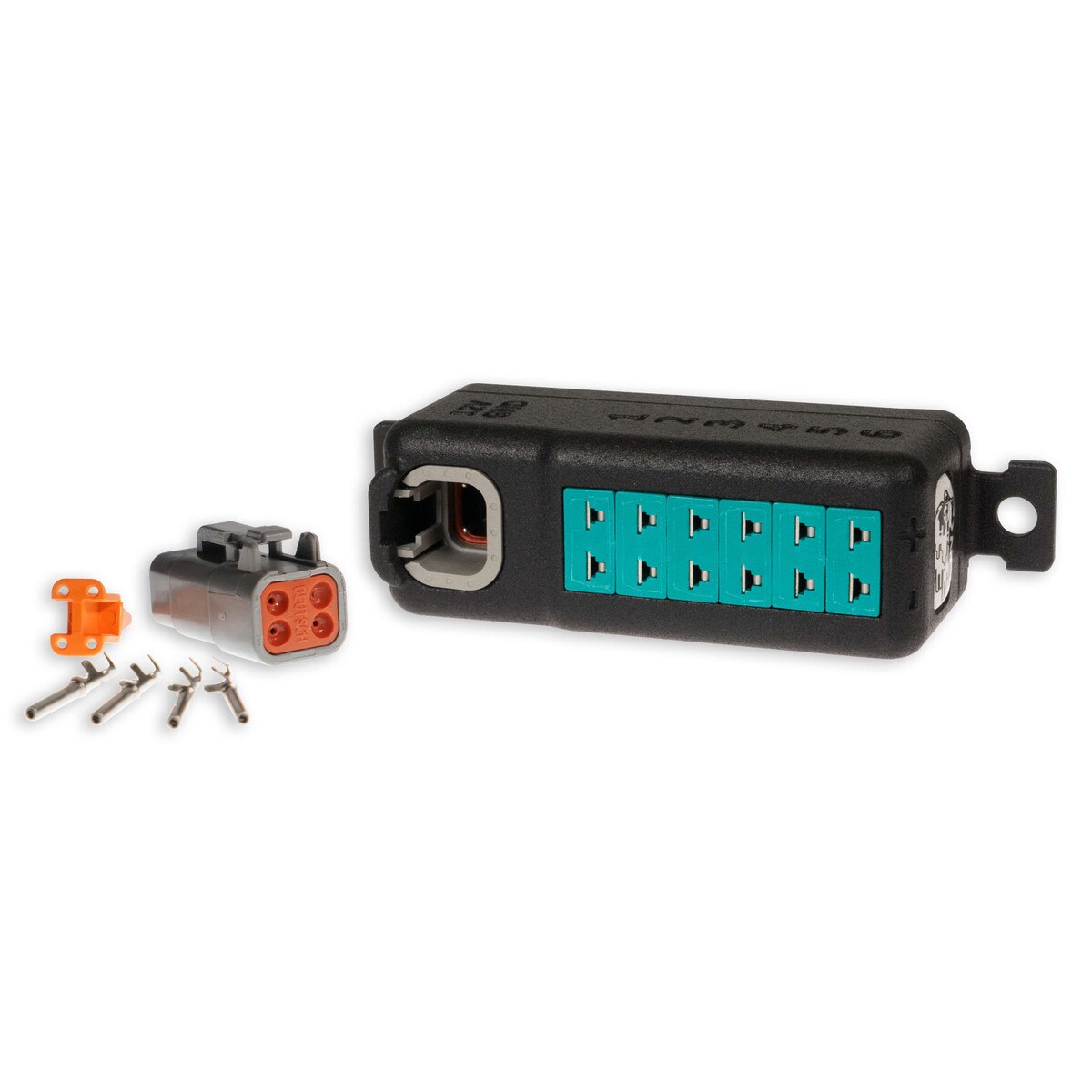

Link TCC06 6 Channel EGT to CAN Module

The Link TCC06 is a six channel EGT to CAN module that allows up to six Type K thermocouples to be read and transmitted over the CAN bus. It is pre configured for Link ECUs and supports wireless setup and monitoring.

What it’s used for

• Monitoring exhaust gas temperature across up to six channels
• Sending temperature data to the ECU via CAN bus
• Wireless configuration and diagnostics during setup

Compatibility

• Link G4
• Link G4+
• Link G4X
• PCLink software
• CAN 2.0A and CAN 2.0B networks

Notes

• Requires Type K thermocouple probes
• EGT probes are sold separately
• CAN termination may be required depending on network layout

Specifications

• Inputs: 6 x Type K thermocouples
• Measurement range: 0°C to 1250°C
• Resolution: 0.25°C (14 bit)
• Cold junction compensation: Yes
• Maximum sample rate: Up to 100 Hz
• Accuracy: Maximum 2% deviation
• CAN speeds supported: 125 kbps, 250 kbps, 500 kbps, 1 Mbps
• CAN standards: CAN 2.0A and CAN 2.0B
• Connector: 4 pin DTM (Link CAN pinout compatible)
• Thermocouple connectors: Miniature Type K sockets
• Wireless configuration and monitoring supported
• Dimensions: 97.3 x 31.5 x 34.6 mm

CAN wiring

• Pin 1: 12V
• Pin 2: Ground
• Pin 3: CAN Low
• Pin 4: CAN High
