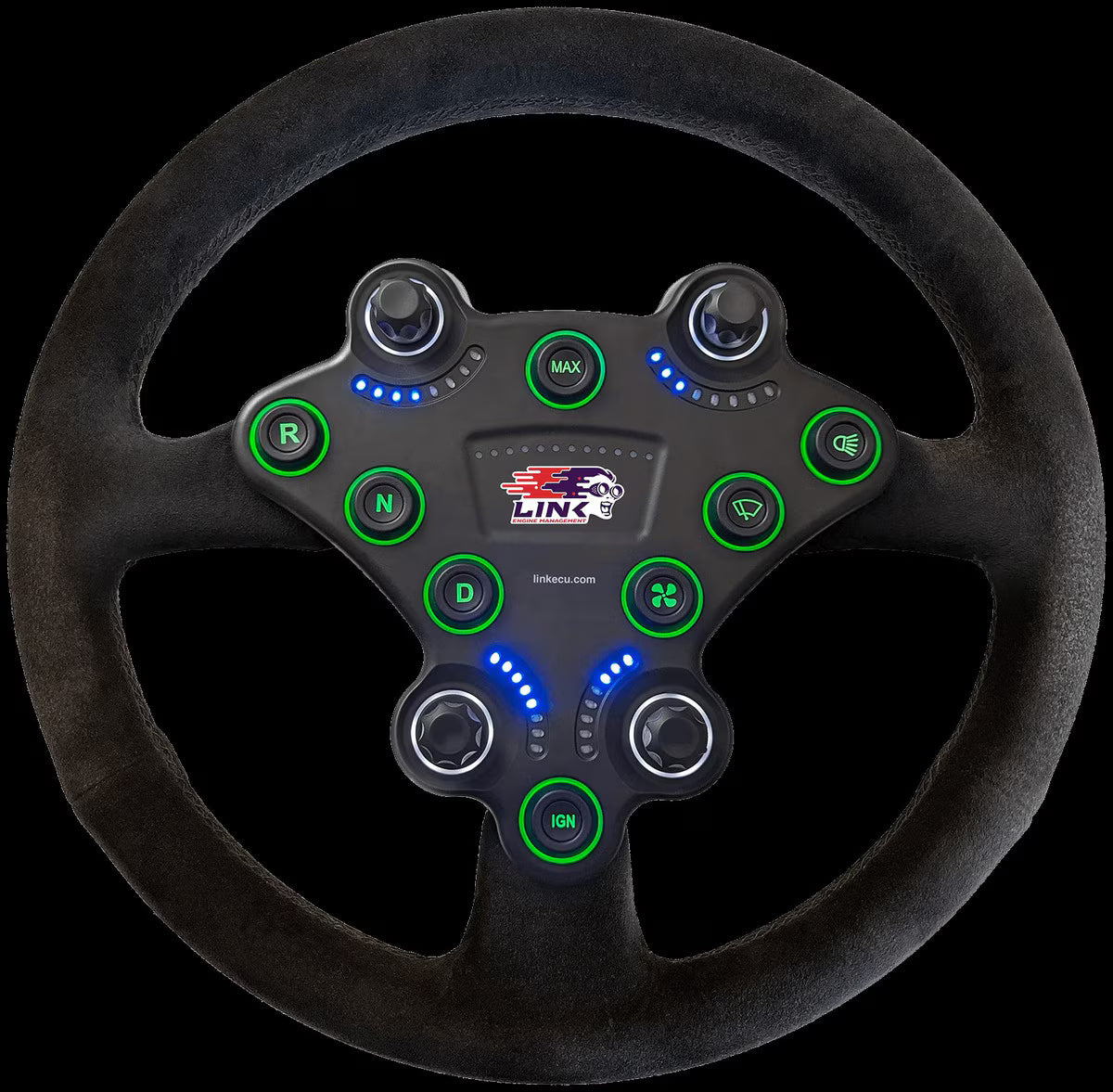

Link RacePad Steering Wheel CAN Keypad

The Link RacePad is a CAN-based steering wheel keypad designed to provide direct driver control of ECU functions from the wheel. It combines push buttons, rotary knobs, analogue inputs, and configurable LEDs in a compact steering wheel-mounted panel.

What it’s used for

• Controlling ECU functions from the steering wheel
• Adjusting parameters using rotary knobs
• Providing driver feedback using configurable LEDs
• Connecting additional sensors or switches via analogue inputs

Compatibility

• Link G4X ECUs
• Link G5 ECUs
• PCLink software
• CAN networks

Notes

• Steering wheel is not included
• Ships with empty button inserts
• Button inserts are sold separately
• One Link logo button insert is included loose in the box

Specifications

• Buttons: 8 backlit CAN buttons with RGB LED rings
• Rotary knobs: 4 with blue LED indicators
• Fixed LEDs: 12 centre LEDs for configurable feedback
• Analogue inputs: 4 inputs for additional sensors or switches
• Switch life: 3 million operations
• Default CAN baud rate: 1 Mbit/s
• Chemical resistance: Deet, engine cleaner, isopropyl alcohol, suntan lotion, multipurpose cleaner, citrus cleaner, muriatic acid
• UV resistance: UVB 400 hours
• Salt spray resistance: ASTM B117
• Weight (RacePad only): 110 g
• Dimensions: 197 x 180 mm (front view)
• Thickness: 36.2 mm excluding knob height

CAN and analogue wiring

• DTM4 connector for CAN and power
• Red: Power
• Black: Ground
• White: CAN High
• Blue: CAN Low
• Molex connector for analogue inputs

Mounting

• Includes mounting plate adapter
• Supports common steering wheel bolt patterns
• MOMO 6 x 70 mm
• Nardi 6 x 74 mm

Box contents

• RacePad steering wheel CAN keypad
• Mounting bracket
• DTM4 mating connector kit
• Molex mating connector kit
• Link sticker
• Keypad button insert (Link logo)
