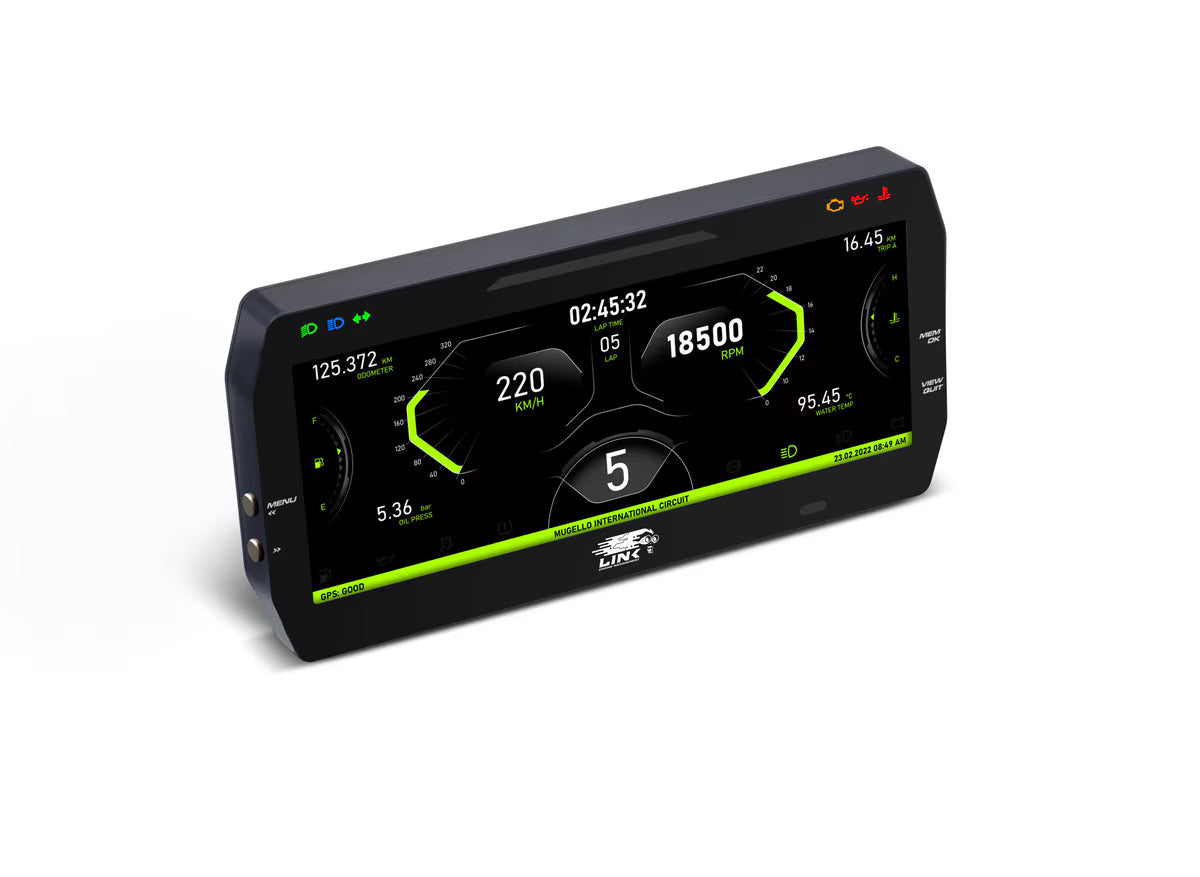

Link MXT Strada 10-inch CAN Dash Display

Full colour 10 inch CAN based dash display powered by AIM and pre-configured for Link ECUs. The Link MXT Strada is available in Street and Race editions to suit road and motorsport applications.

What it’s used for

• CAN dash display for Link ECU equipped vehicles
• Displays real time ECU data including RPM, speed, temperatures, pressures, and warnings
• User configurable layouts, shift lights, and alarms

Compatibility

• All Link G4+, G4X, and G5 wire-in ECUs
• All Link G4+, G4X, and G5 plug-in ECUs
• CAN connection required

Edition differences

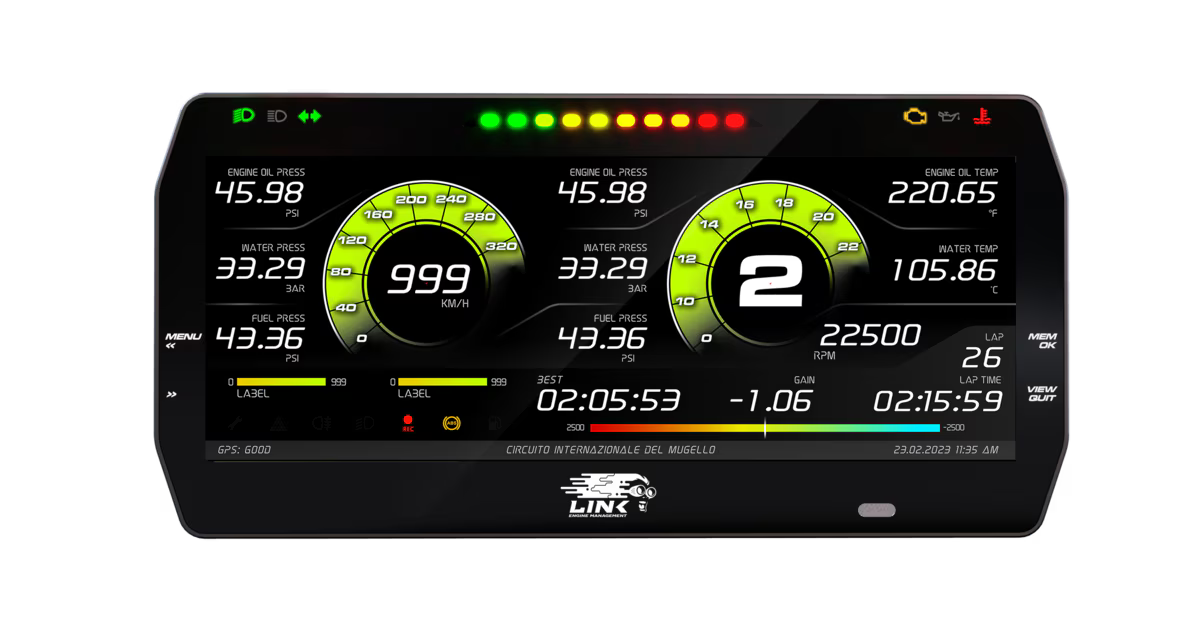

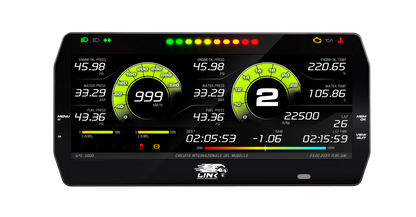

• Street Edition: road legal dash with fixed street warning icons

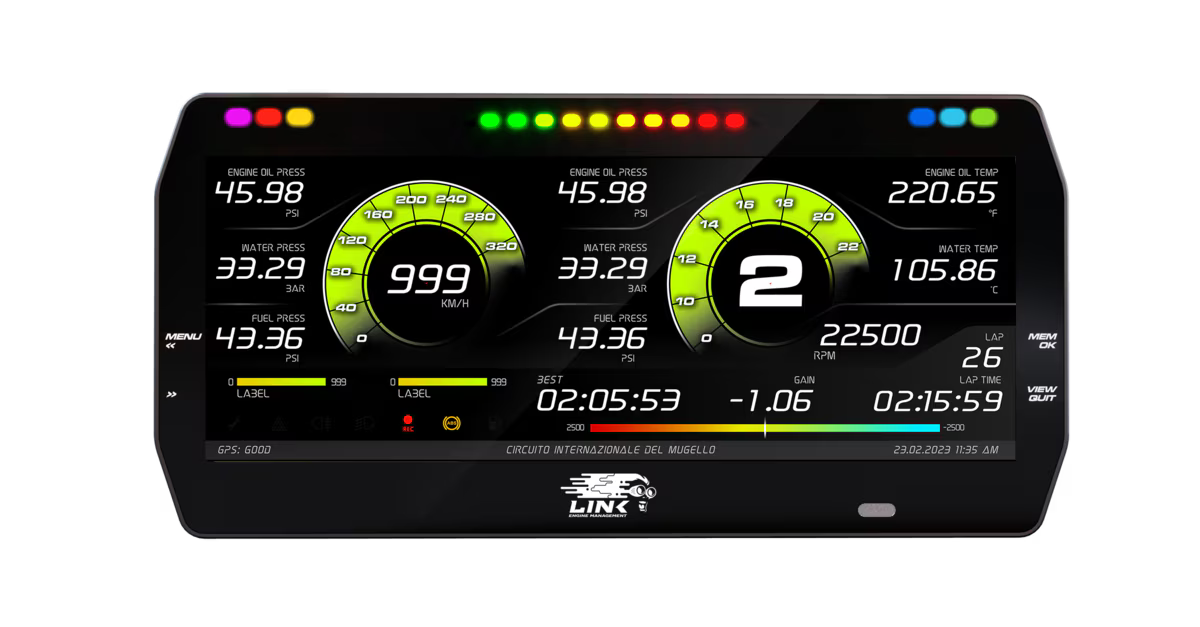

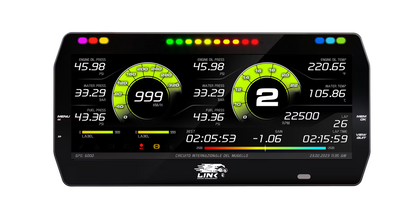

• Race Edition: motorsport focused dash with fully configurable RGB alarm LEDs

Notes

• GPS module available separately
• Dash configuration via Link PCLink and AIM Race Studio 3 software

Features

• 10 inch high contrast TFT display
• 10 configurable RGB shift lights
• Ambient light sensor with automatic brightness adjustment
• Side mounted buttons for display navigation
• Multiple preset and configurable display layouts

Specifications

• Display: 10 inch TFT
• Resolution: 1280 x 480 pixels
• Brightness: 700 cd/m²
• Contrast ratio: 1000:1
• Alarm LEDs: 6 RGB
• Shift lights: 10 RGB LEDs
• CAN connections: 3
• Analog inputs: 8 configurable, up to 1000 Hz
• Digital inputs: 1 speed input, coil RPM input
• Digital outputs: 1 (1 A max)
• Power consumption: 400 mA
• Waterproof rating: IP65
• Body: anodized aluminium
• Dimensions: 278 x 135 x 43.2 mm
• Weight: 1200 g

What’s included

• Link MXT Strada 10 inch dash
• USB cable
• 14 pin standard wiring
• 23 pin connector with contacts
