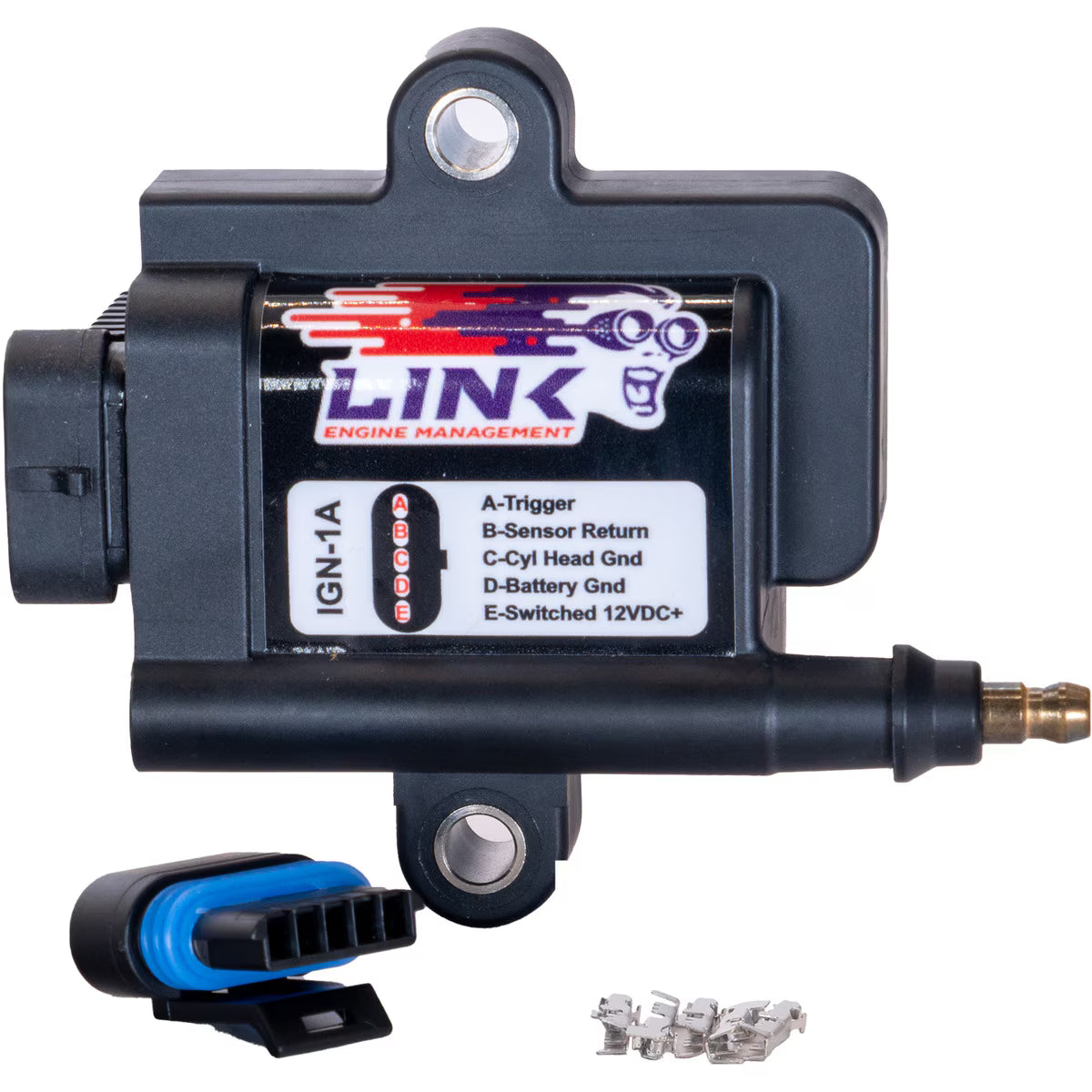

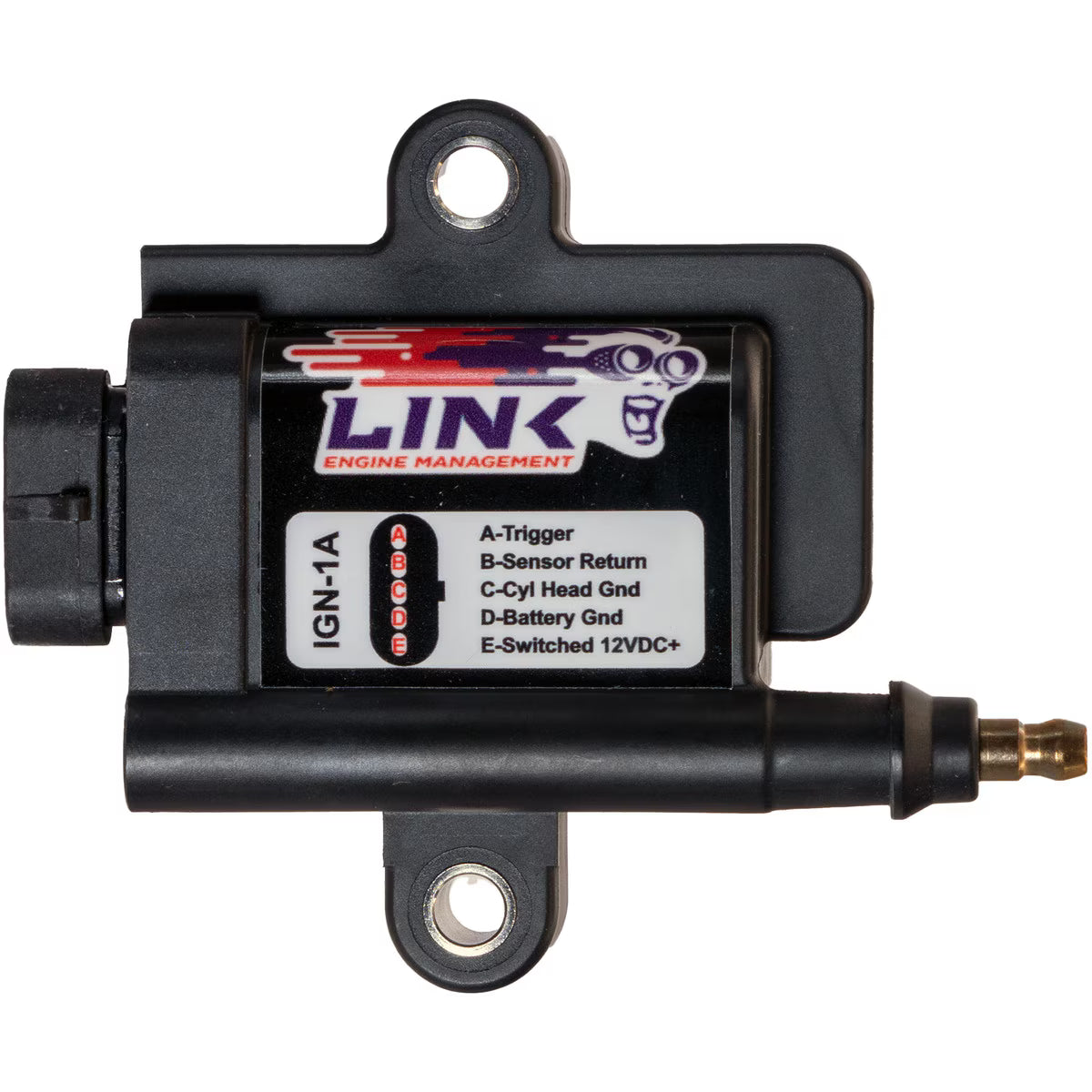

Link IGN1A High Powered Inductive Smart Coil

High powered inductive smart ignition coil with an integrated ignitor. Designed for high energy spark output with long spark duration.

What it’s used for

• Ignition coil for performance and motorsport engines
• Provides high spark energy with long spark duration
• Suitable for ECU controlled ignition systems

Compatibility

• All Link ECUs with suitable ignition drive capability
• Applications requiring HEI type plug wire ends or boots
• Compatible with most brands of HT leads

Notes

• Built-in ignitor with external heat sink required
• Includes mating connector kit
• No manufacturer warranty is provided
• Excessive dwell or duty cycle may cause coil failure

Specifications

• Minimum output voltage: 40,000 V (no load at recommended dwell)
• Maximum output voltage: up to 81,000 V
• Output energy: 103 mJ
• Spark duration: 2.9 ms
• Primary resistance: 0.5 ohms
• Primary inductance: 4.8 mH
• Secondary resistance: 8,500 ohms
• Secondary inductance: 22.5 H
• Turns ratio: 71.1
• Maximum current: 19 amps
• Maximum battery voltage: 17 volts
• Nominal dwell: 3.0 ms

Connector pinout

• Pin A: ignition signal from ECU
• Pin B: logic ground, connect to ECU ground
• Pin C: spark wire ground, connect to cylinder head
• Pin D: power ground, connect to battery negative
• Pin E: 12 volt power supply

View Link IGN1A User Guide
