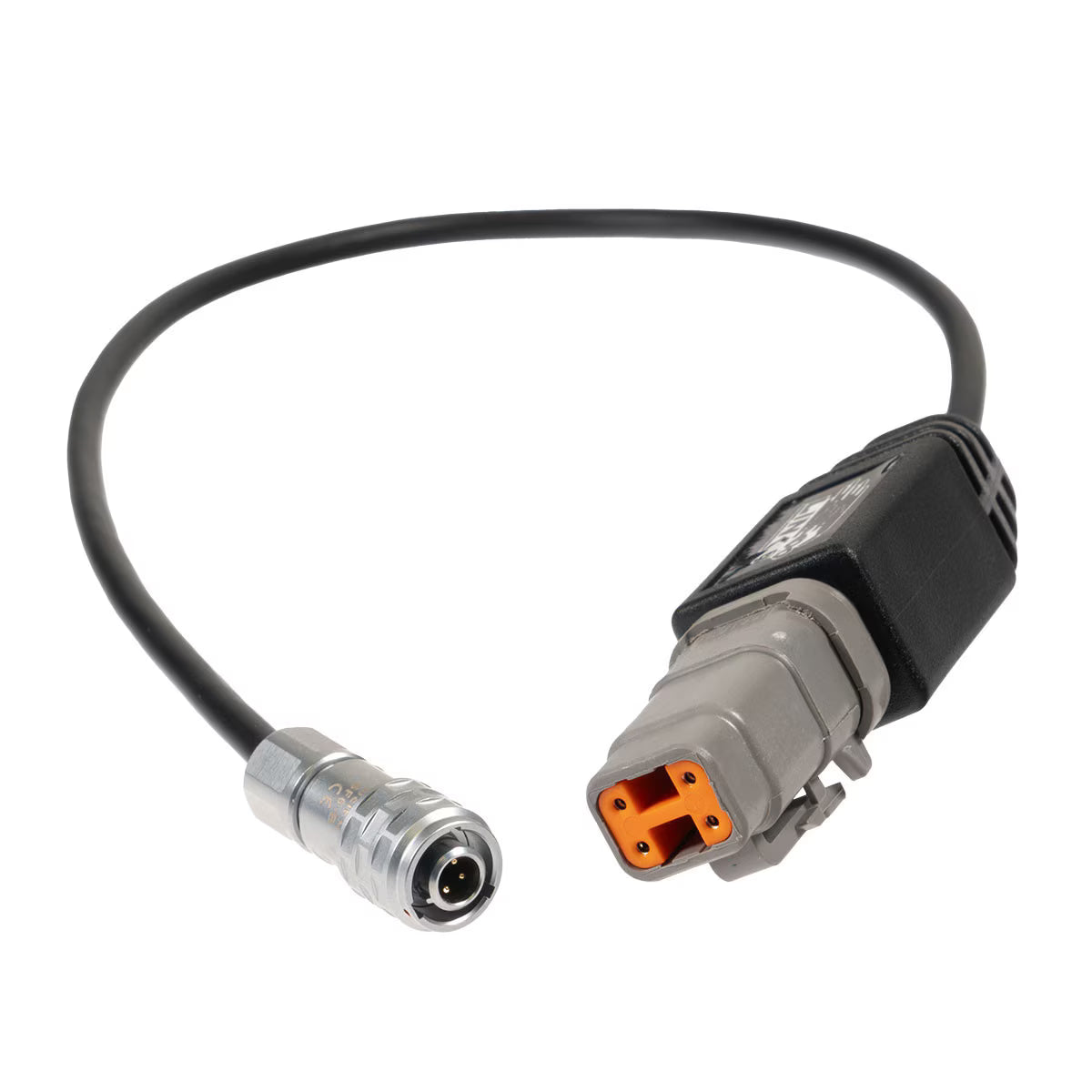

Link G5 CAN Connection Cable 300 mm

The Link G5 CAN Connection Cable is used to add CAN 1 communication to Link G5 Voodoo Neo ECUs. It connects directly to the 4 pin round Weipu CAN connector on the front of the ECU and provides CAN and power via a DTM4 connector.

What it’s used for

• Adding CAN 1 communication to Link G5 Voodoo Neo ECUs
• Connecting CAN devices such as modules, splitters, and accessories
• Providing CAN high, CAN low, power, and ground from the ECU

Compatibility

• Link G5 Voodoo Neo ECU (CAN 1)

Notes

• Power for CAN devices is supplied directly from the ECU via this cable
• Plugs into the front mounted 4 pin round Weipu CAN connector

Specifications

• Cable type: CAN connection cable
• Length: 300 mm
• ECU connector: Weipu SF610B/P4 (4 pin round CAN connector)
• CAN connector: DTM4 male

DTM4 pinout

• Pin 1: 12V
• Pin 2: Ground
• Pin 3: CAN Low
• Pin 4: CAN High
