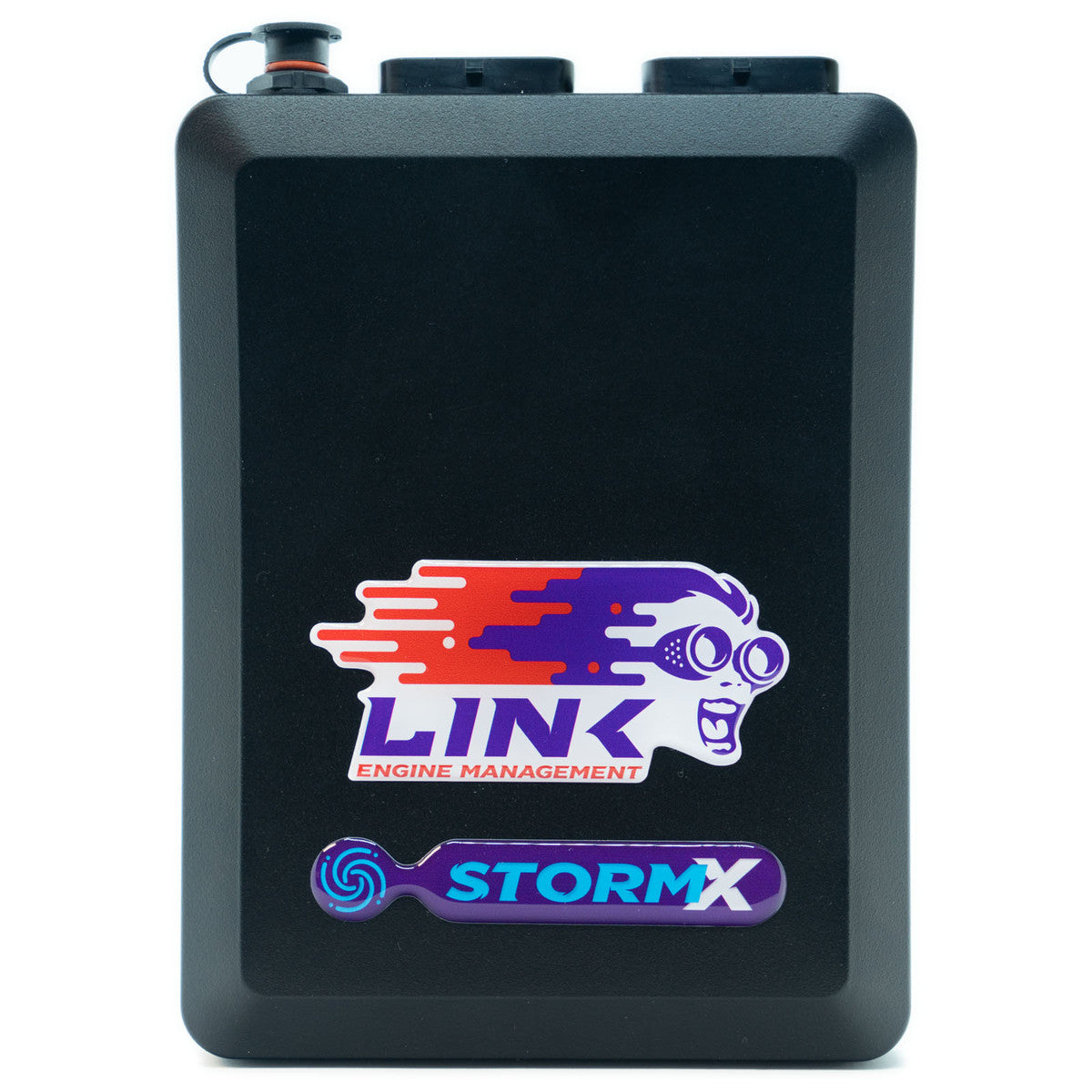

Link G4X StormX ECU
The G4X StormX is Link’s mid-sized performance ECU, offering advanced tuning features at an affordable price. It supports sequential injection and direct spark for up to 8 cylinders or 4 rotors and includes powerful features like onboard Knock Control, Boost Control, and advanced motorsport functions such as Full Gear Shift Control, Antilag, and Launch Control.
With expanded data logging, a built-in trigger oscilloscope, and faster USB communication, the StormX is a significant upgrade over the G4+ Storm. It’s ideal for high-performance builds that demand flexibility and control — without stepping up to the Xtreme or Fury models.

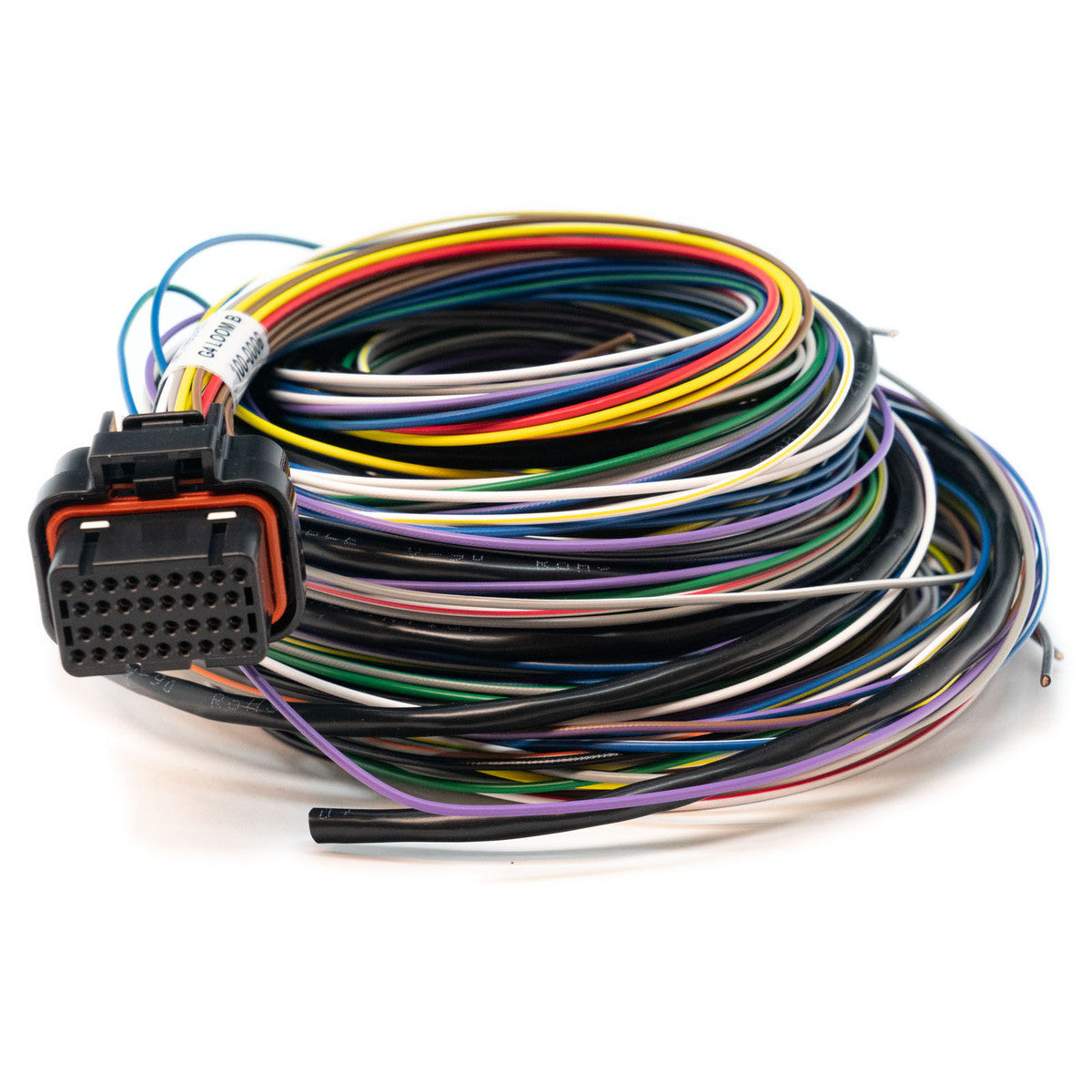

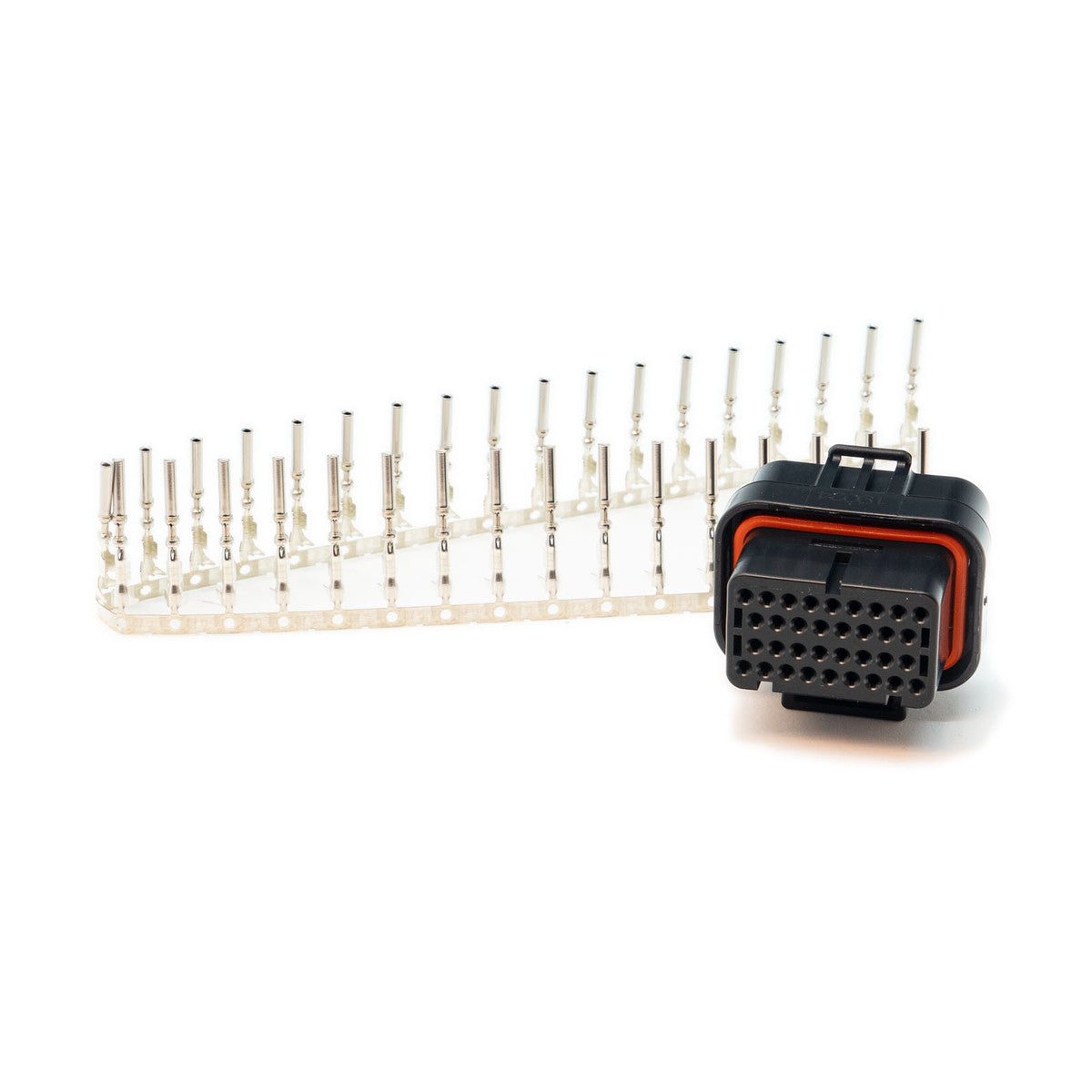

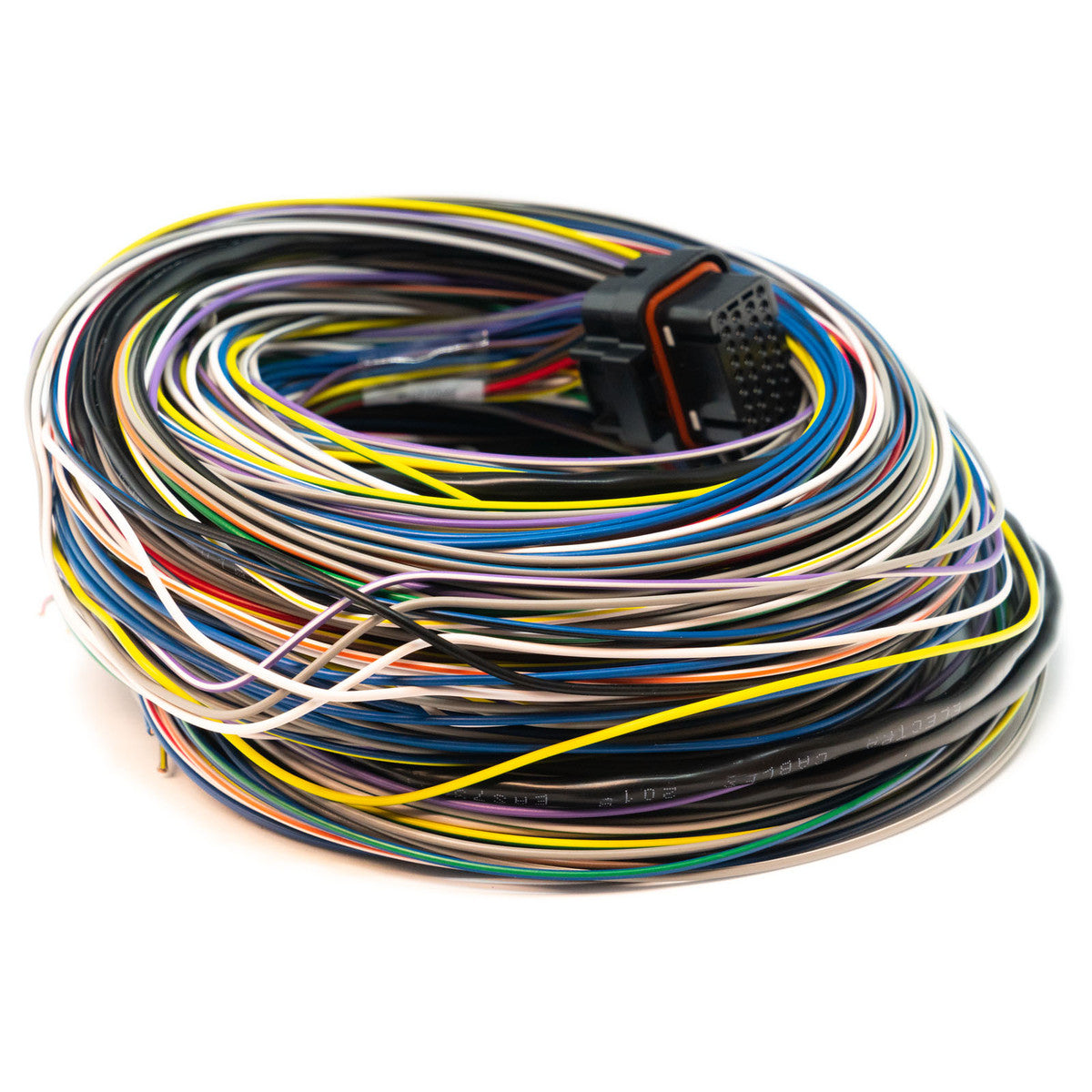

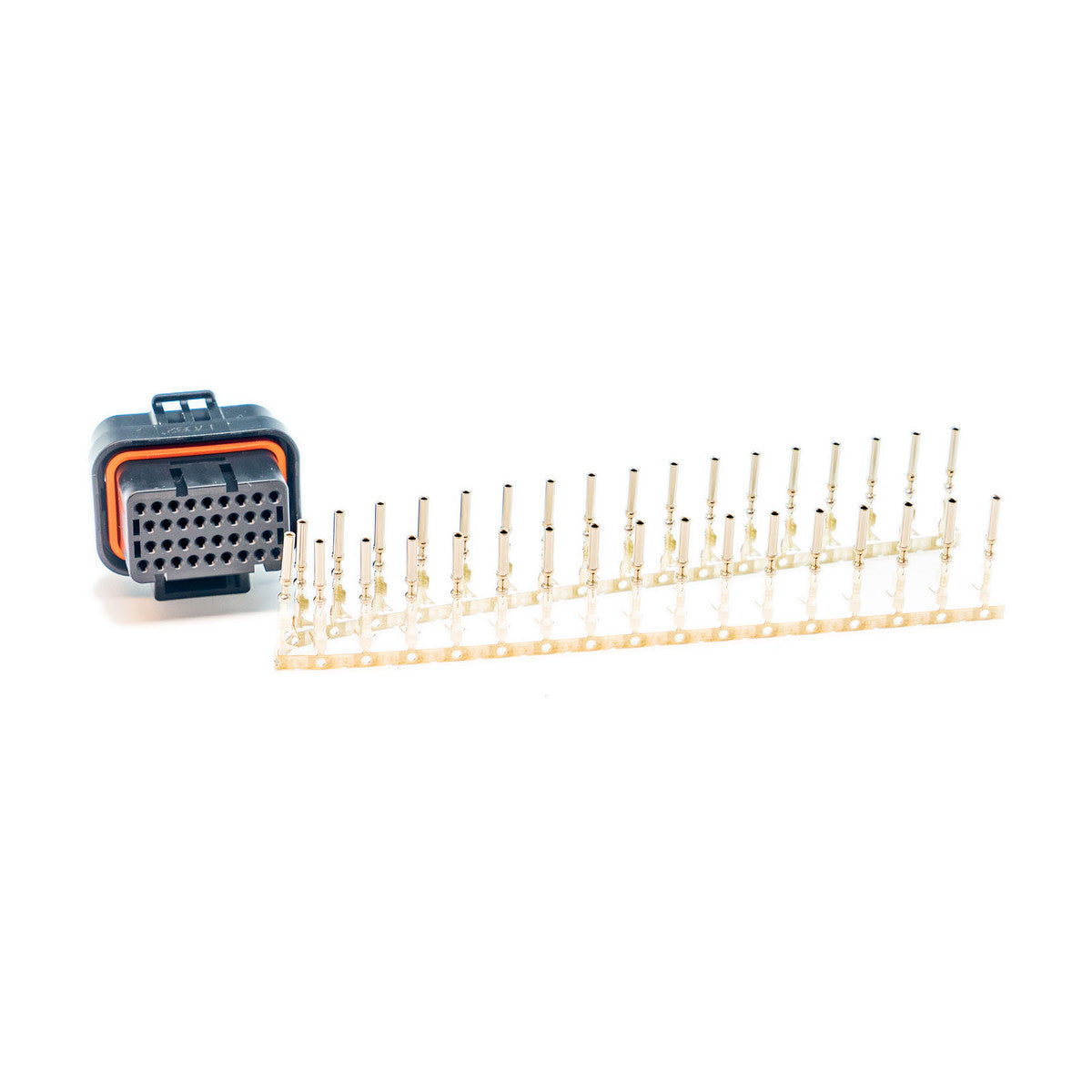

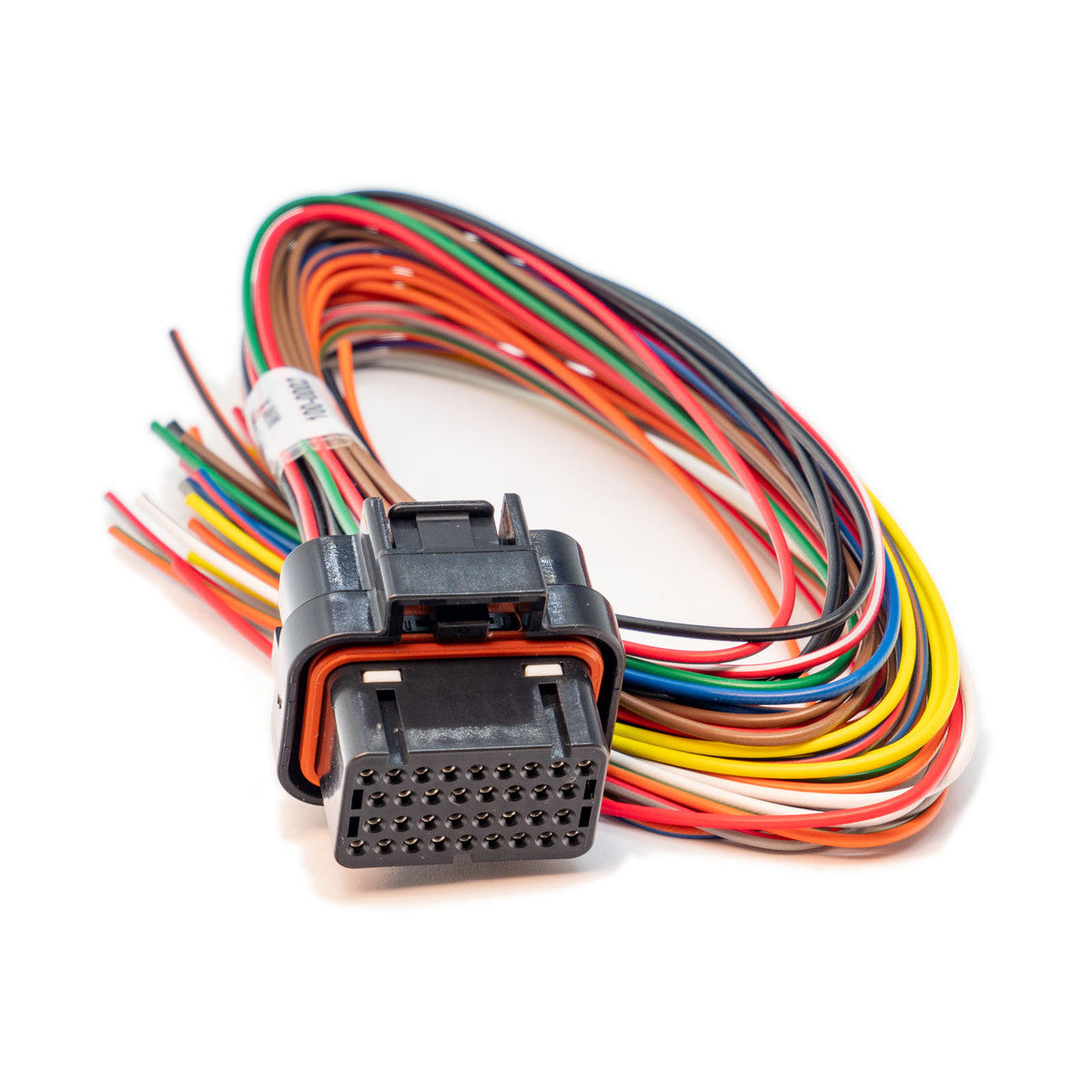

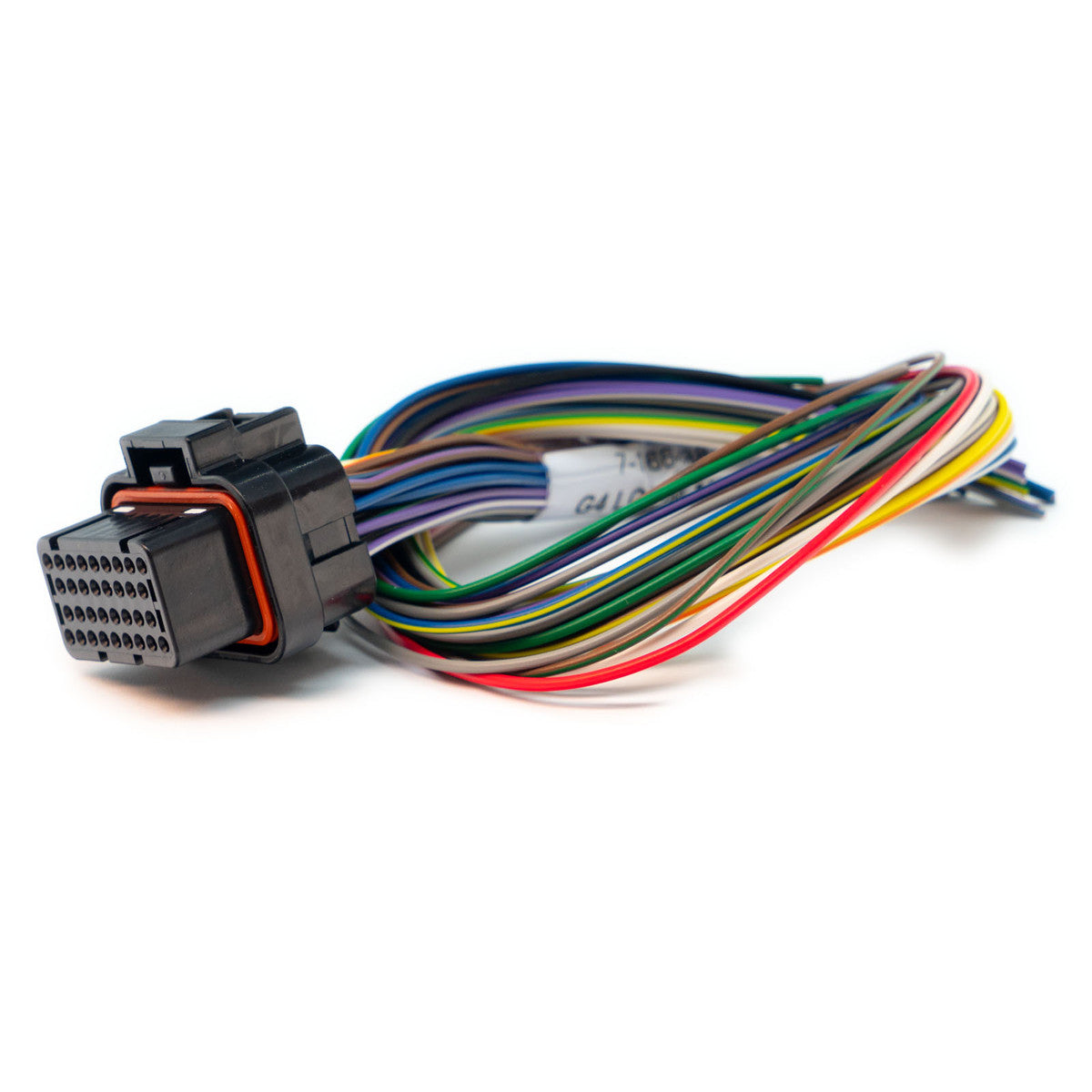

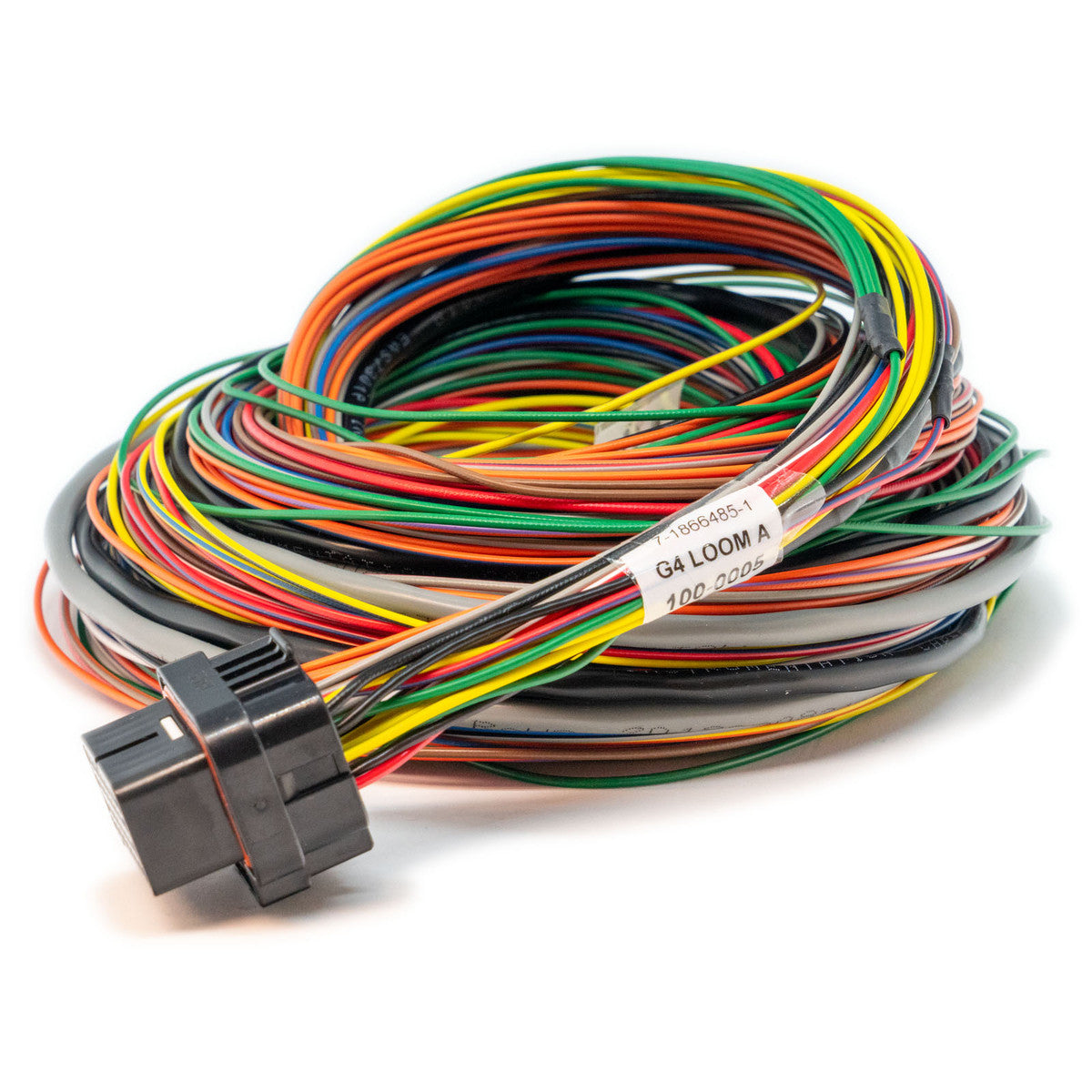

Requires “A” & “B” looms or connector kits (sold separately).
Note: For traction control, peak & hold injectors, or e-throttle, consider the XtremeX or FuryX models.
🔧 Key Features:
- Sequential injection and direct spark for up to 8 cylinders or 4 rotors
- Onboard Knock Control – no external amplifier required
- Built-in Trigger Oscilloscope and Rotary Oil Metering Pump Control
- Supports open and closed loop boost control with multiple tables
- Most motorsport functions: Launch, Antilag, Gear Shift Control, VVT, etc.
- 512MB internal data logging (up to 250 channels @ 1kHz)
- High-speed USB tuning and 1 x CAN bus
🔌 Inputs & Outputs:
- 8 x Injector Drives
- 8 x Ignition Drives
- 8 x Auxiliary Outputs (PWM capable)
- 8 x Digital Inputs (up to 10kHz)
- 3 x Temperature Inputs
- 8 x Analog Inputs (0–5V)
- 2 x Trigger Inputs
- 2 x Knock Inputs
- +5V and +8V Sensor Power Outputs
⚙️ Engine Compatibility:
- 1–12 Cylinder Distributed / Wasted Spark / Direct Spark
- Odd Fire, Rotary, 2-Stroke, and 4-Stroke engines
- Custom and OEM trigger pattern support
- Configurable TDC points and firing order
⛽ Fuel & Ignition Control:
- Traditional, Modelled, and Multi-Fuel tuning strategies
- Up to 440-zone 6D fuel & ignition maps
- Dual closed-loop Lambda, AFR correction, overrun fuel cut
- Injector and ignition trim by cylinder, IAT/ECT correction
- Support for staged injection, asynchronous injection, and more
🏁 Motorsport Features:
- Launch control with 3D ignition and fuel trim support
- Antilag with dual 3D enrichment, ignition cut/retard, and cyclic idle
- Gear shift control (digital input, lever force, or barrel position)
- Closed-loop boost control with switchable tables and boost-by-gear
- Up to 4 closed-loop VVT cams with advanced PID control
- Rotary Oil Metering Pump & Stepper Idle Valve support
- Knock detection with per-cylinder tuning and frequency filtering
📐 Dimensions & Specifications:
- Operating Voltage: 8V – 22V
- Internal Temperature Range: -10°C to 85°C
- Ambient Temperature Range: -30°C to 90°C
- 150 MHz Engine Management Processor
- 12-bit ADC, 32-bit floating point processing
- 20000+ RPM capable
📦 What’s Included:
- Link G4X StormX ECU
- Wiring & Installation Instructions
- USB Tuning Cable
- 2 x Large Link Stickers
- 2 x Small Link Stickers
