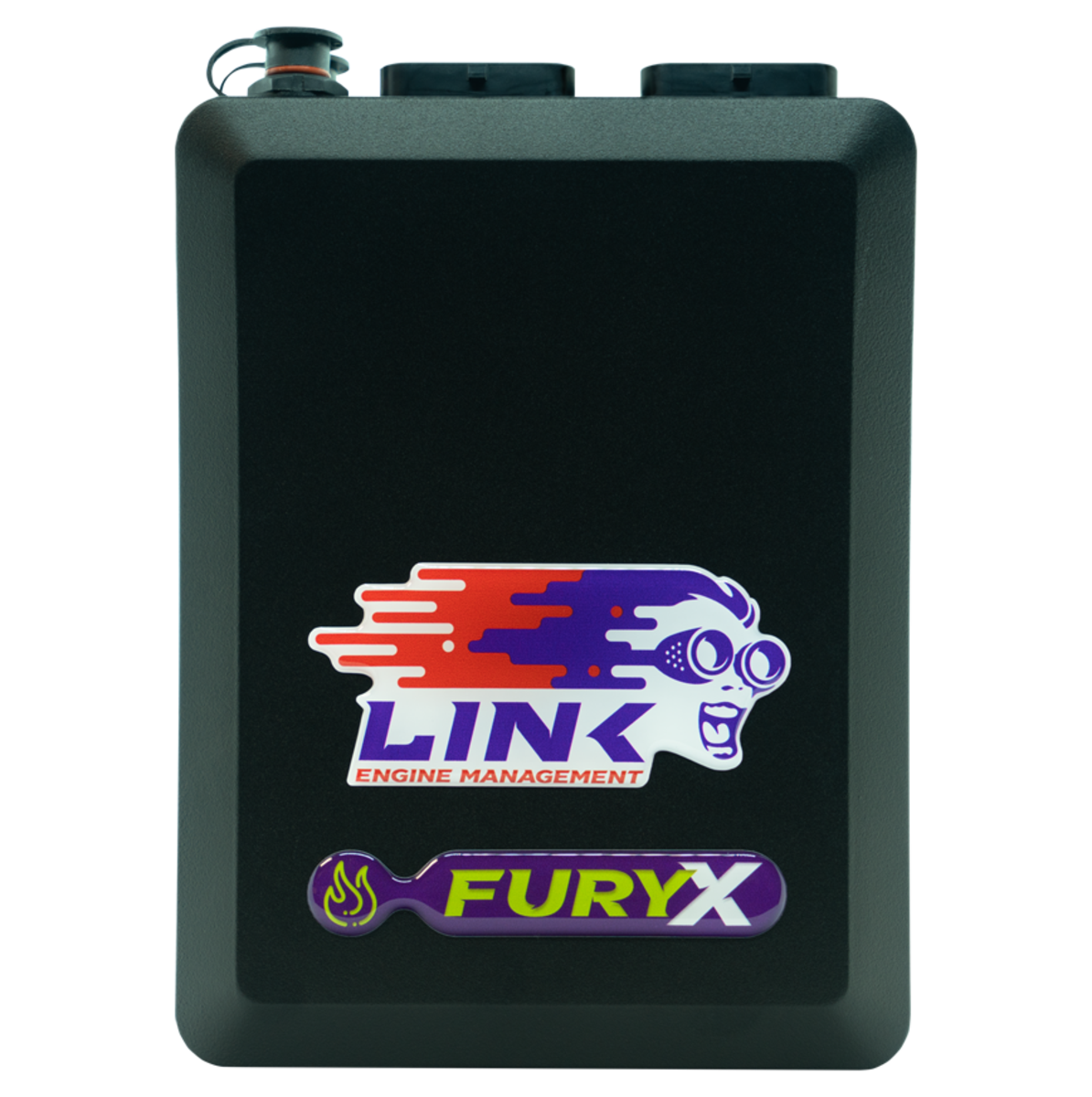

Link G4X FuryX Wire-In ECU – Motorsport-Grade Standalone Engine Management

The Link G4X FuryX Wire-In ECU is a professional-grade standalone engine management system designed for tuners and motorsport teams needing extensive I/O, high-speed logging, and advanced control strategies. Ideal for 4–12 cylinder performance applications, it includes a built-in wideband controller, dual knock control, e-throttle support, and advanced CAN communications.

🔧 Key Features:

• 8 Injection Drives & 6 Ignition Channels (expandable as auxiliary outputs)
• 10 Auxiliary Outputs (PWM capable, incl. stepper motor support)
• Built-in Wideband Lambda Controller (LSU 4.9 support)
• Dual CAN Bus, USB, and Serial Communication
• 3-Axis Accelerometer & Onboard Barometric Pressure Sensor
• Built-in E-Throttle and VVT Control
• 512MB Internal Logging (up to 250 channels @ 1kHz)
• Advanced Motorsport Features: Anti-Lag, Launch Control, Traction Control, Gear Shift Control

⚙️ Inputs & Outputs:

• 8/10 Digital Inputs* (frequency up to 10kHz)
• 9 Analog Inputs (0–5V, fully configurable calibration)
• 4 Temperature Inputs
• 2 Knock Inputs, 2 Trigger Inputs
• +5V and +8V Sensor Power Supplies

*DI 9 and 10 share physical pins with CAN 2 High and Low on the header. Only one function can be used at a time: either DI 9/10 or CAN 2. CAN 1 is available separately via the CAN F connector.

🏎️ Engine Compatibility:

• 1–12 Cylinder Distributed / Wasted Spark / Direct Spark Ignition
• Rotary and Odd-Fire Engine Support
• Multiple Injection Modes: Sequential, Staged, Semi-Sequential, Group, etc.

📈 Fuel & Ignition Control:

• Up to 6D Fuel & Ignition Tables with Trim Maps
• Closed Loop Lambda with Individual Cylinder Trim
• Injector Deadtime & Short Pulse Width Compensation
• Dwell Time, Spark Edge, and Advance Controls

🧠 Motorsport Functions:

• Launch Control with RPM Targets, Fuel/Ignition Cut
• Anti-Lag with Cyclic Idle, Dual 3D Maps, and E-Throttle Override
• Traction Control with 3D Slip Tables and Torque Management
• Flat Shift, Gear-Based Boost Control, Adjustable RPM Limits

📐 Dimensions & Specs:

• 185mm (L) × 130mm (W) × 40mm (H)
• Weight: 680g
• Operating Voltage: 8–22V | Internal Temp: -10 to 85°C
• Microprocessor: 150 MHz Engine Management CPU, 32-bit float

📦 What’s Included:

• Link G4X FuryX ECU
• USB Tuning Cable
• Mounting Bracket
• 2 Large & 2 Small Link Stickers
• Installation Instructions

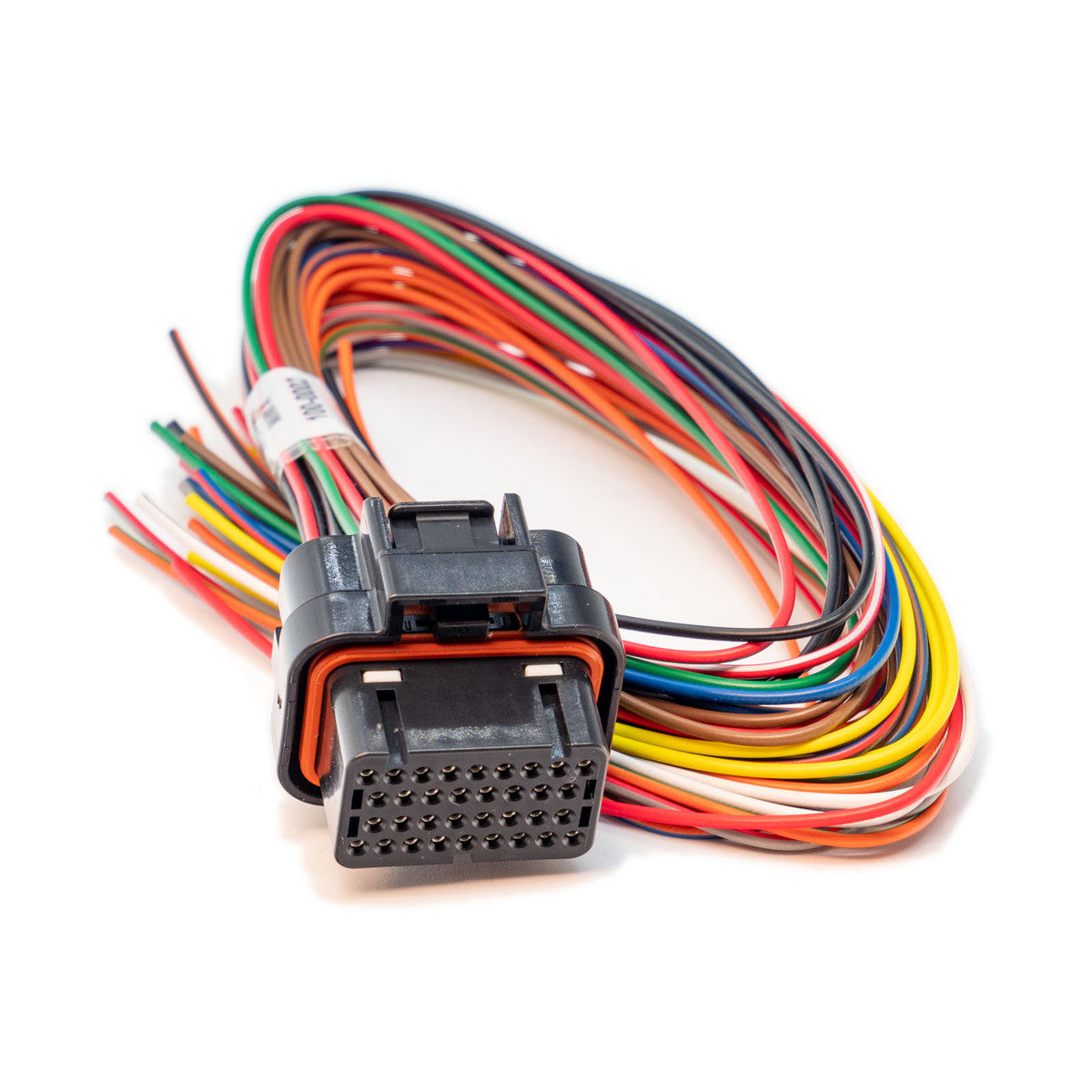

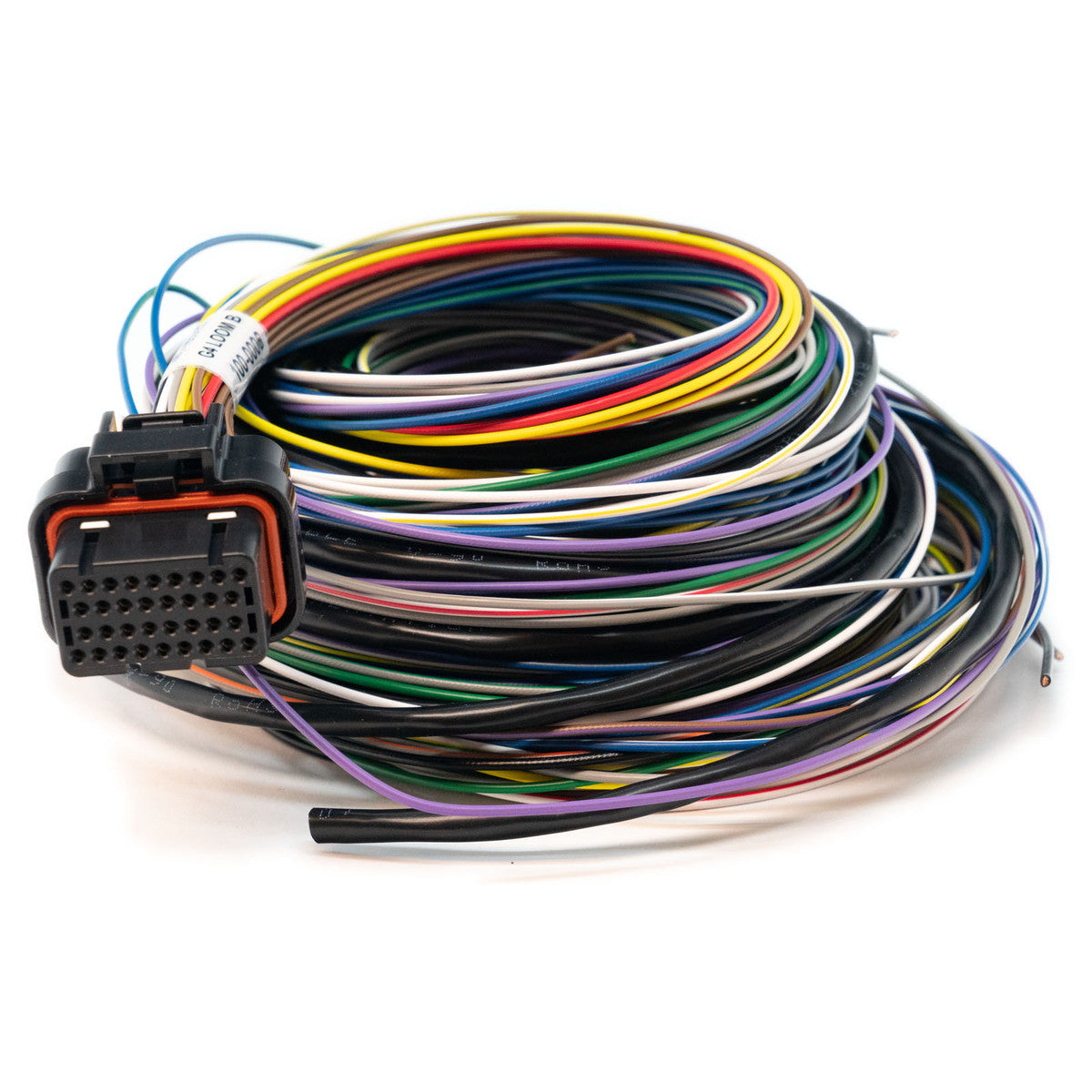

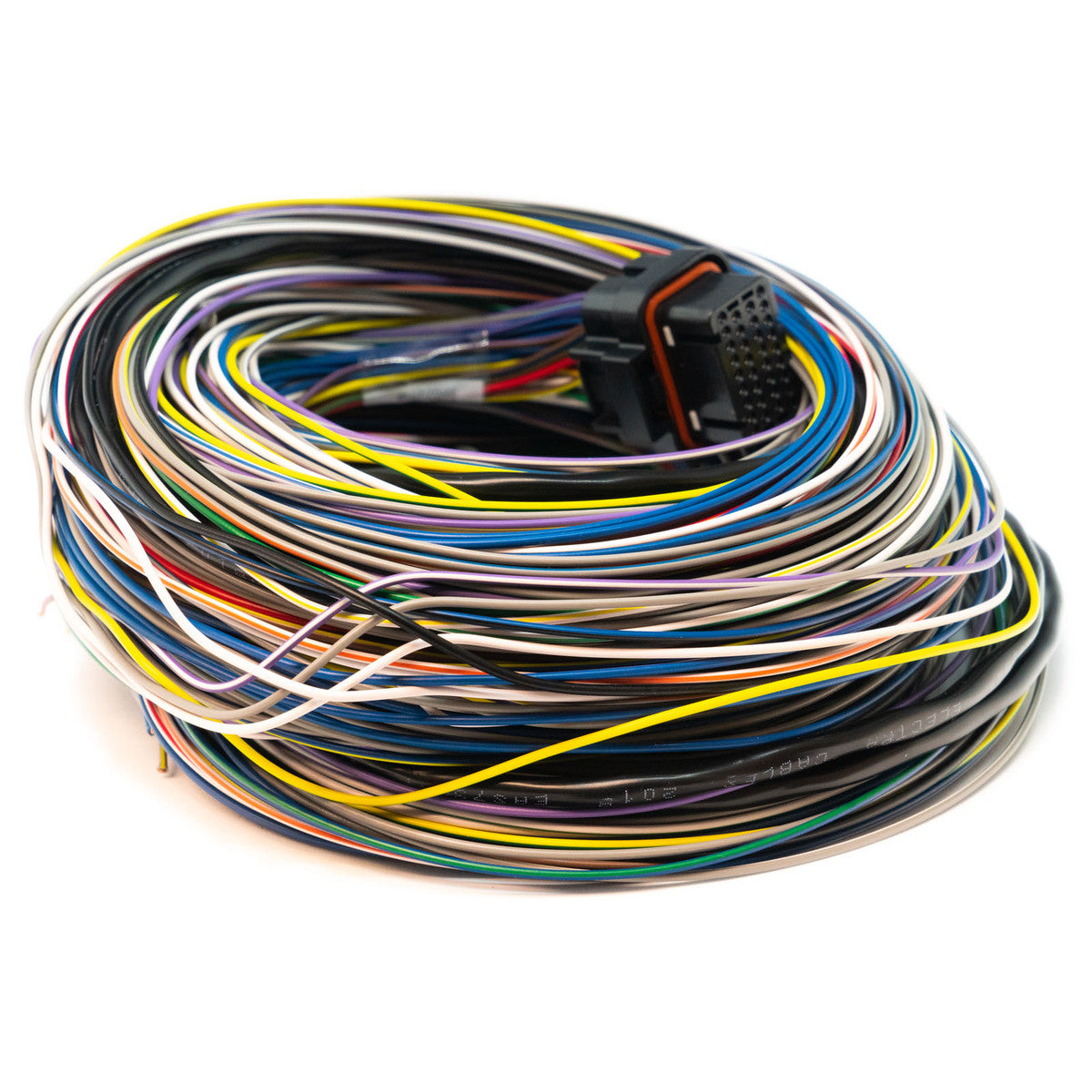

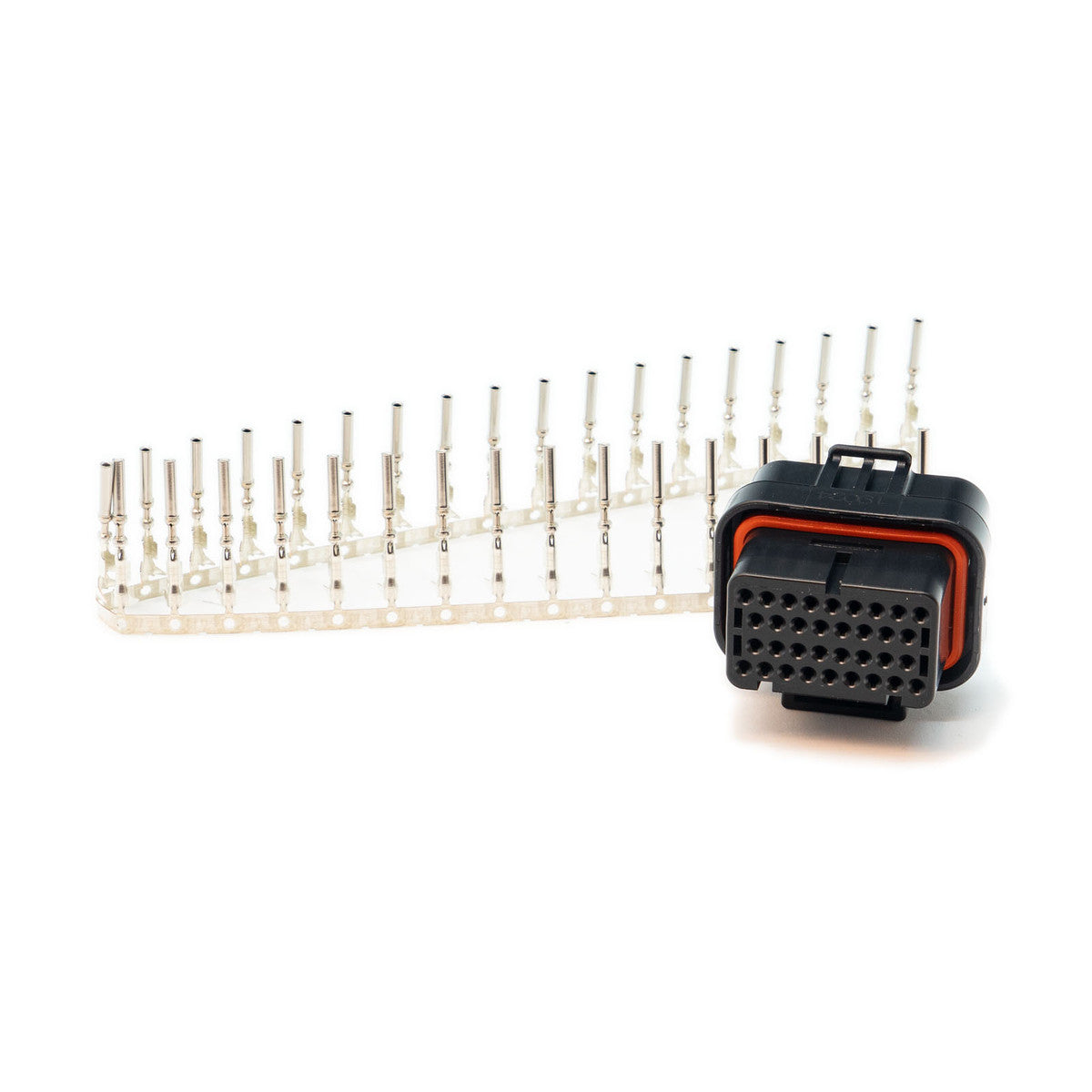

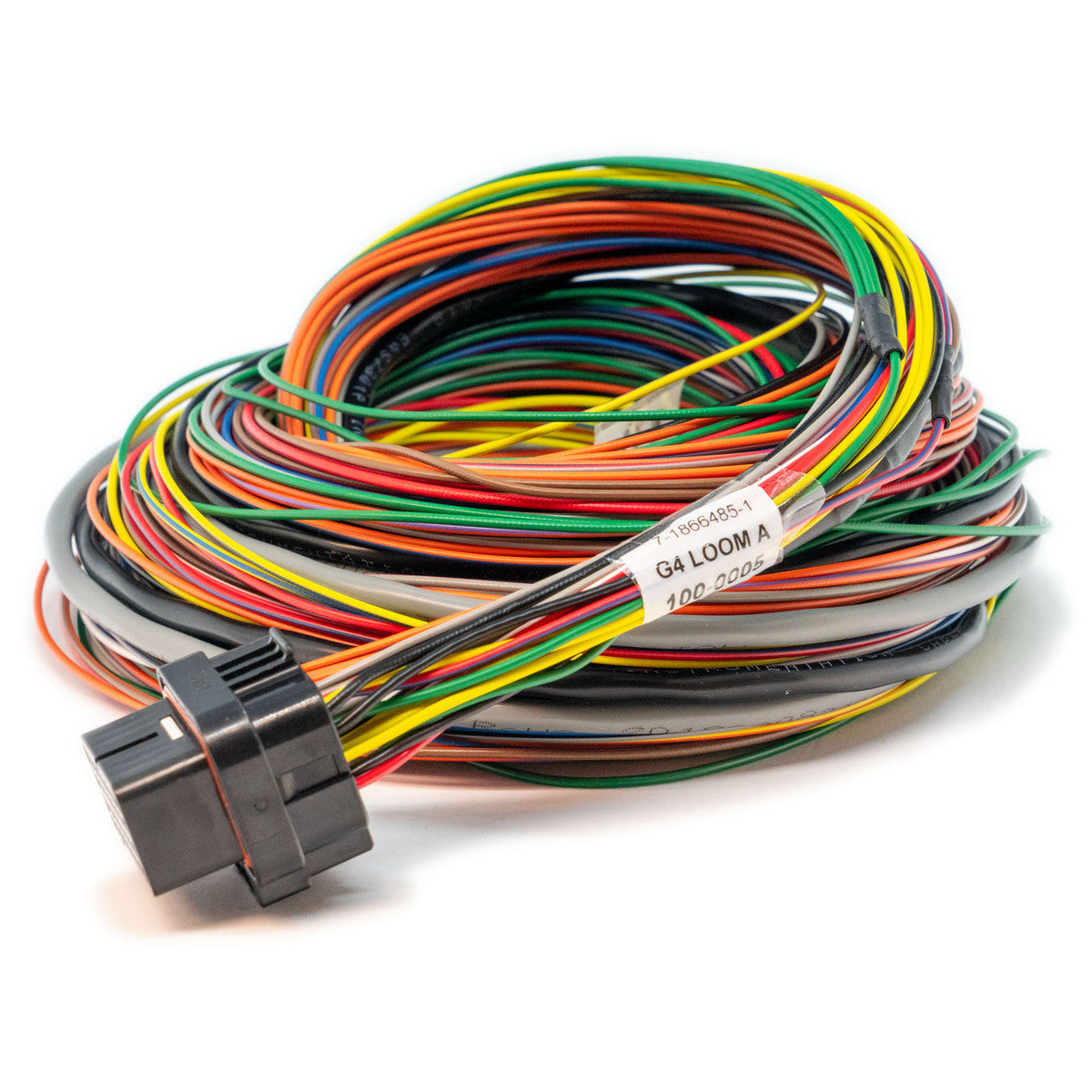

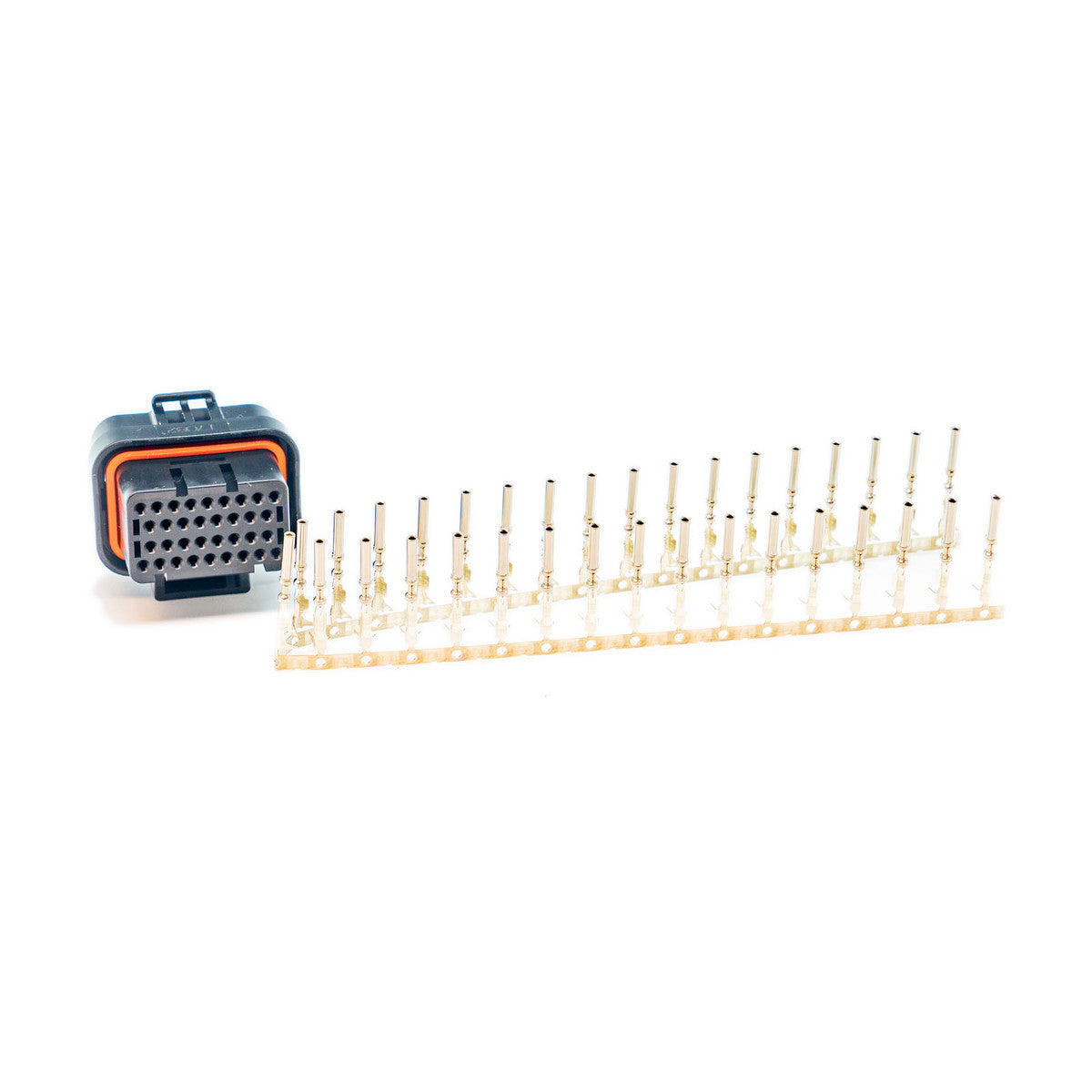

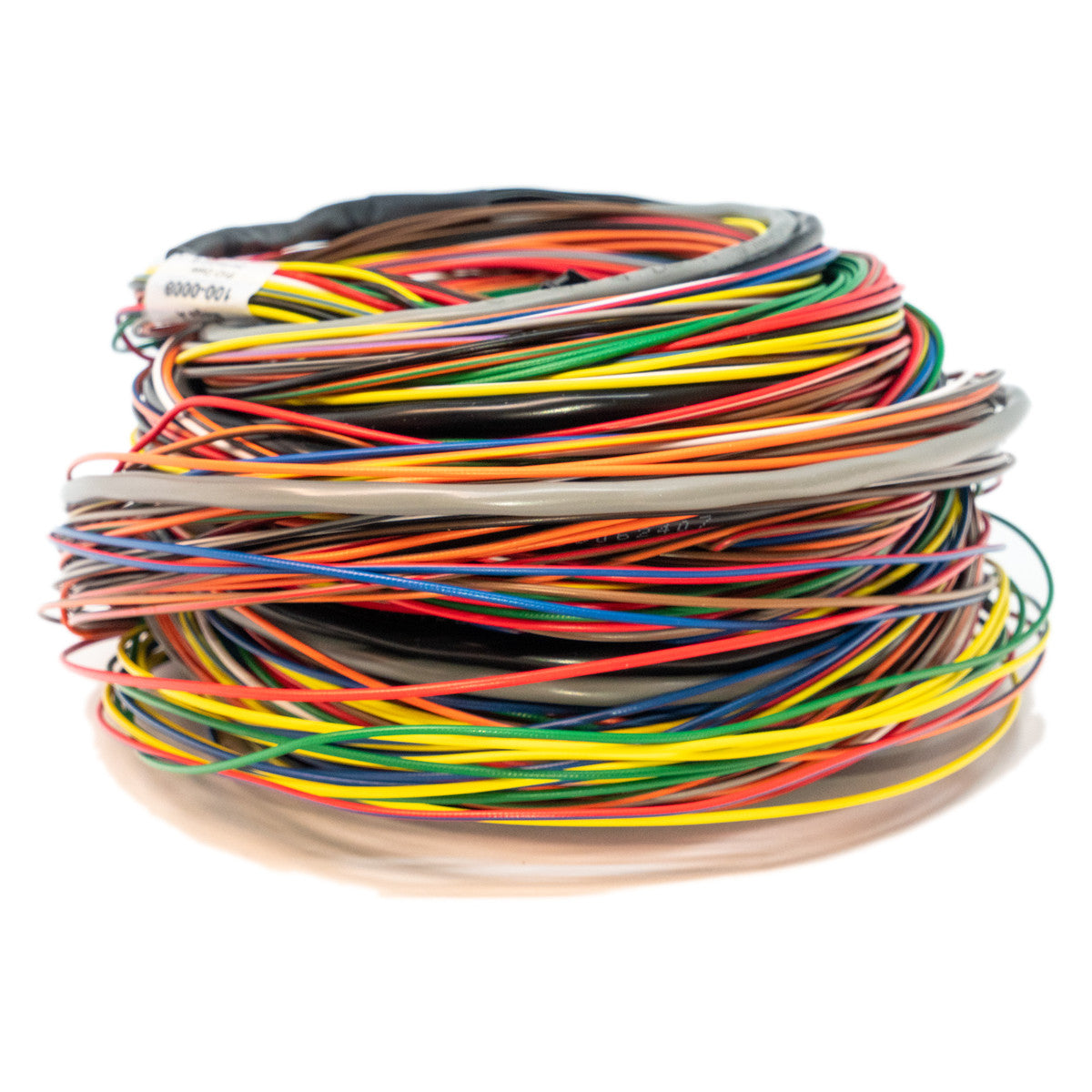

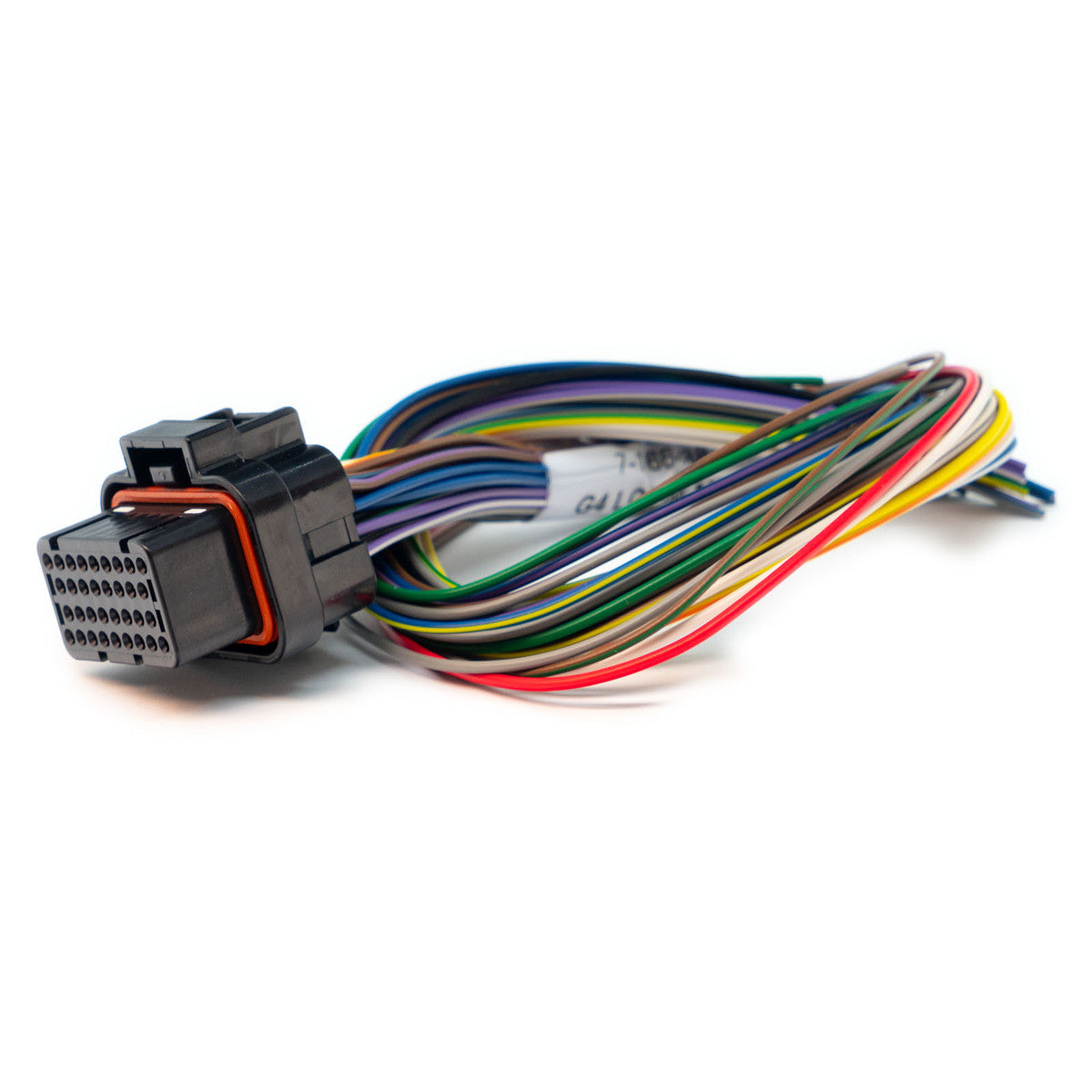

*Connector Kits or Looms A & B sold separately.

📁 Downloads & Resources:

• Quick Start Guide (PDF)
• Installer I/O Table (PDF)
• Wiring Diagram / Pinout (PDF)

More Link ECU documentation is available on our Link ECU Resources hub.
