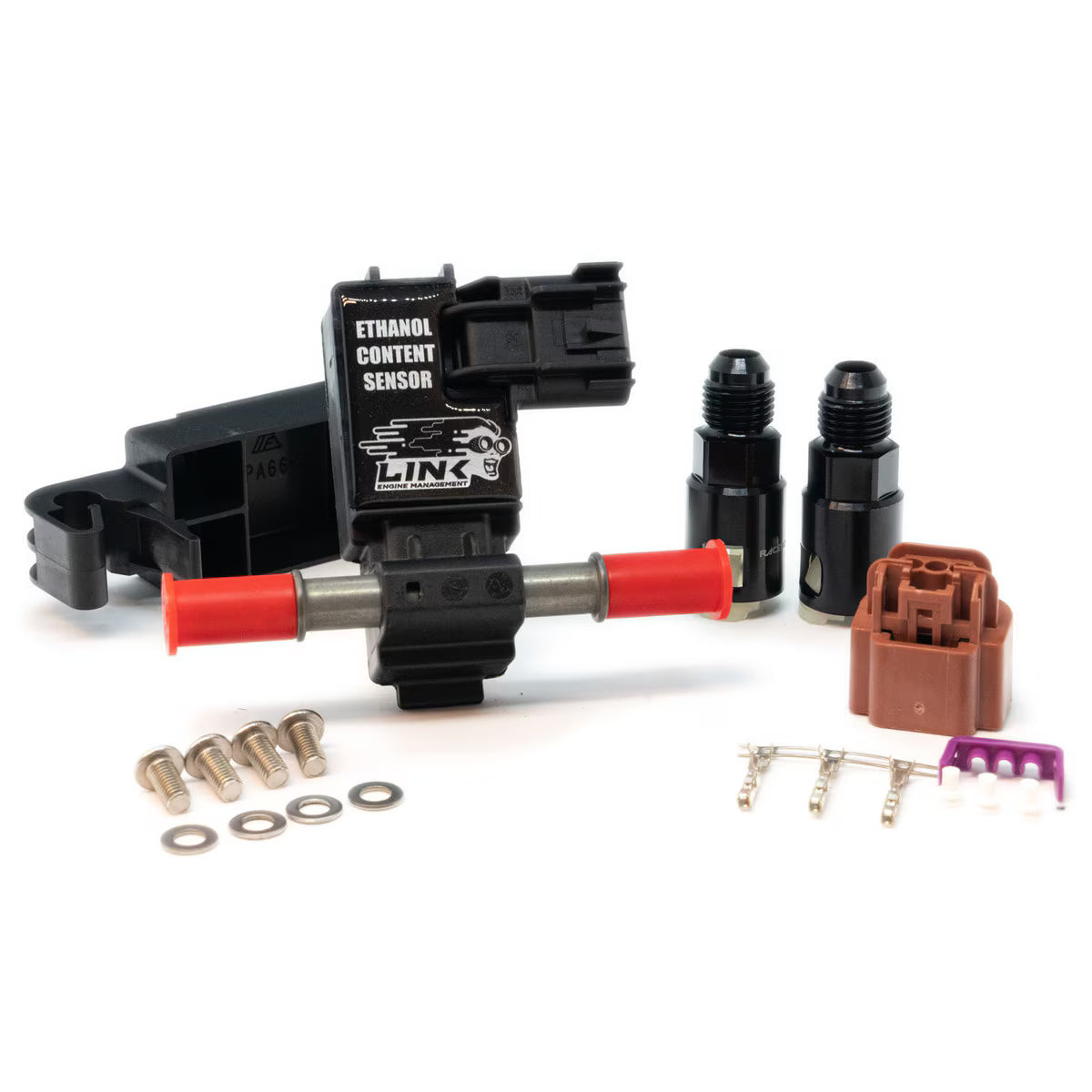

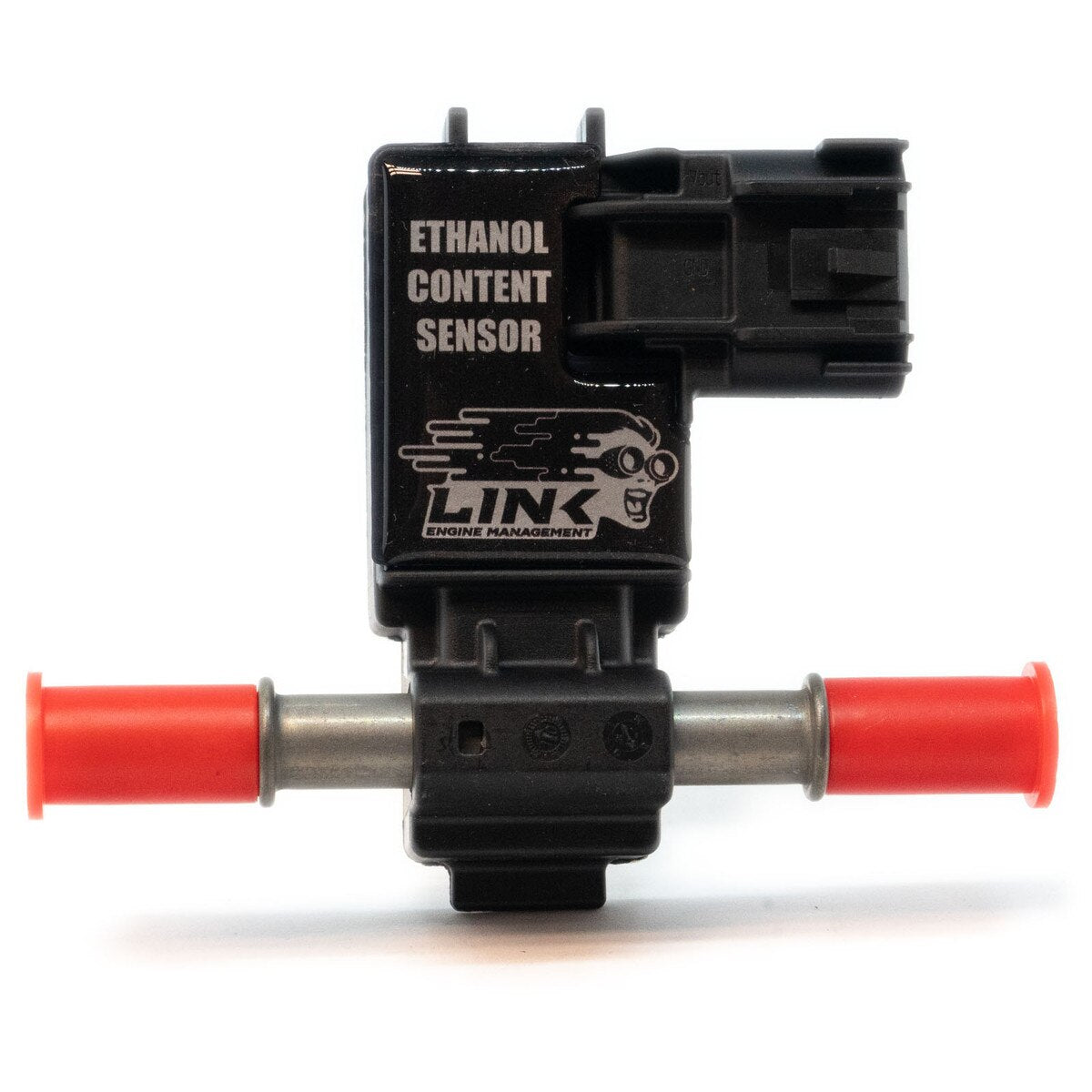

Link Ethanol Content Sensor (ECS)

The Link Ethanol Content Sensor (ECS) allows accurate flex fuel operation by measuring the ethanol percentage in petrol-based fuels. It also provides real-time fuel temperature data to the ECU.

What it’s used for

• Flex fuel tuning with petrol and ethanol blends
• Automatic fuel, ignition, and boost compensation based on ethanol content
• Monitoring fuel temperature

Compatibility

• Link G4
• Link G4+
• Link G4X
• Link Wire-In ECUs
• Link Plug-In ECUs
• PCLink software

Notes

• Uses one digital input on the ECU
• Installed in the fuel return line between the fuel pressure regulator and fuel tank

Specifications

• Measures ethanol content percentage
• Measures fuel temperature

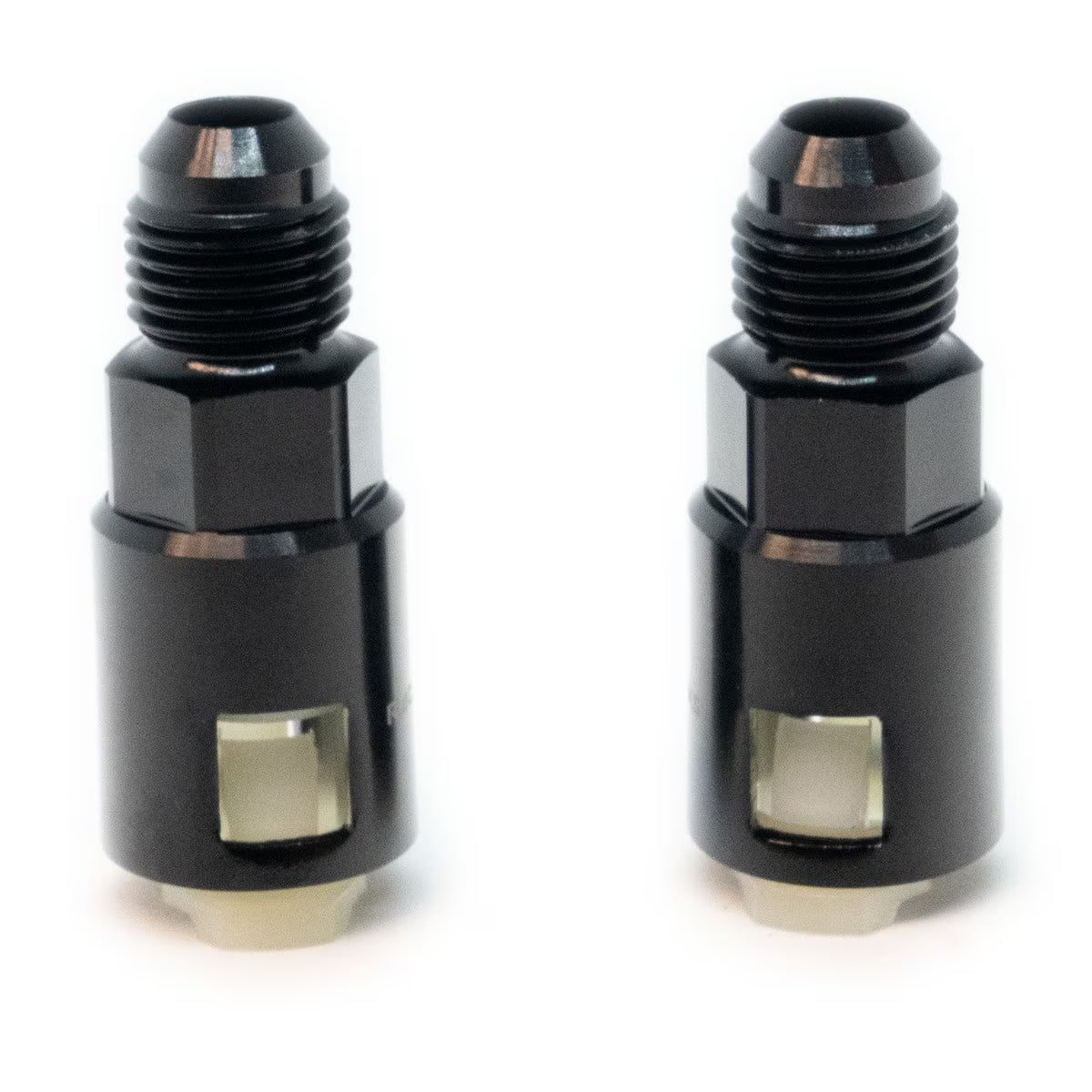

• AN-6 fuel fittings
• 12V powered sensor
• Digital frequency output

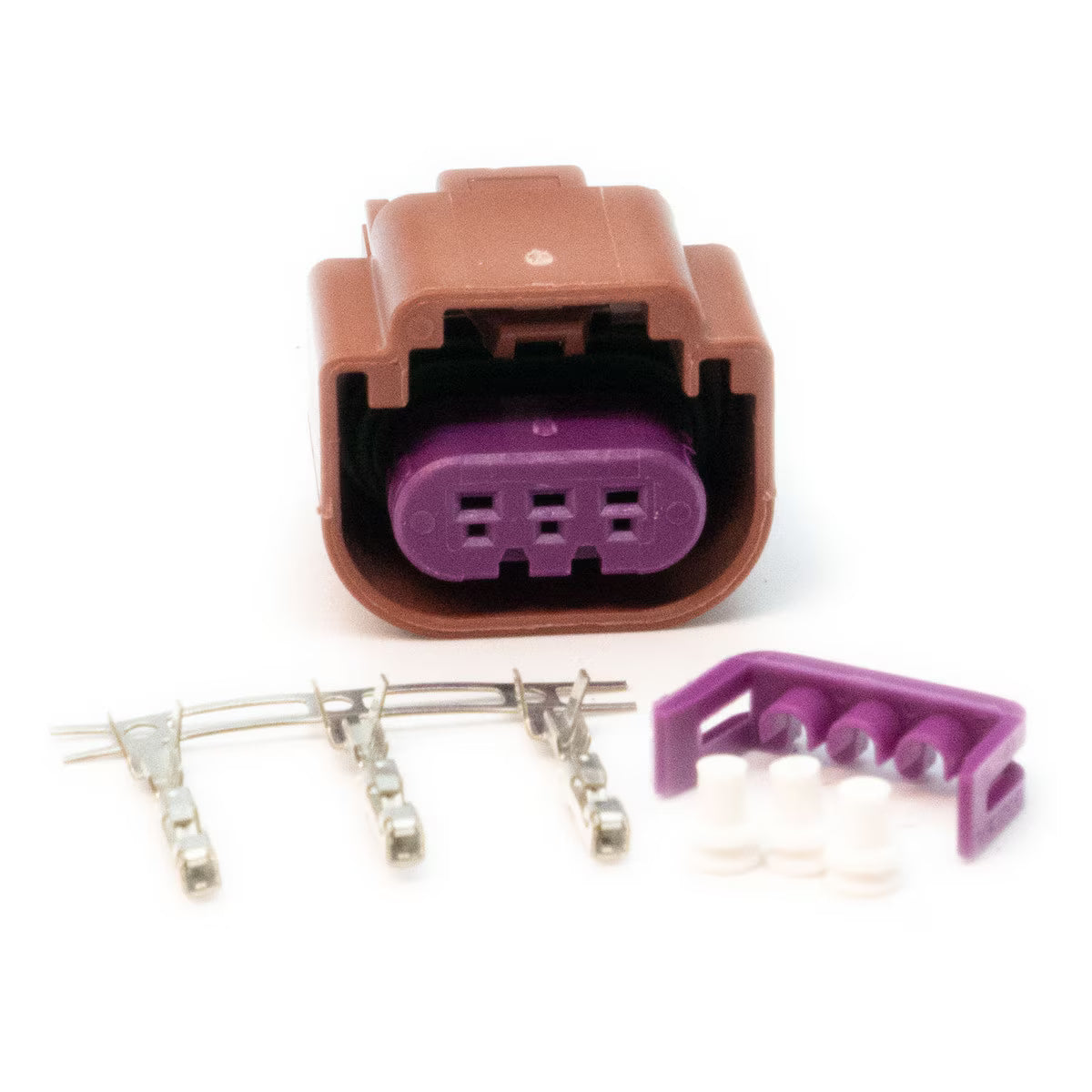

• Includes plug and pin kit

Pinout (viewed looking into the sensor connector):

• Pin 1: Vcc (+12V supply)
• Pin 2: Ground
• Pin 3: Vout (digital signal output)
