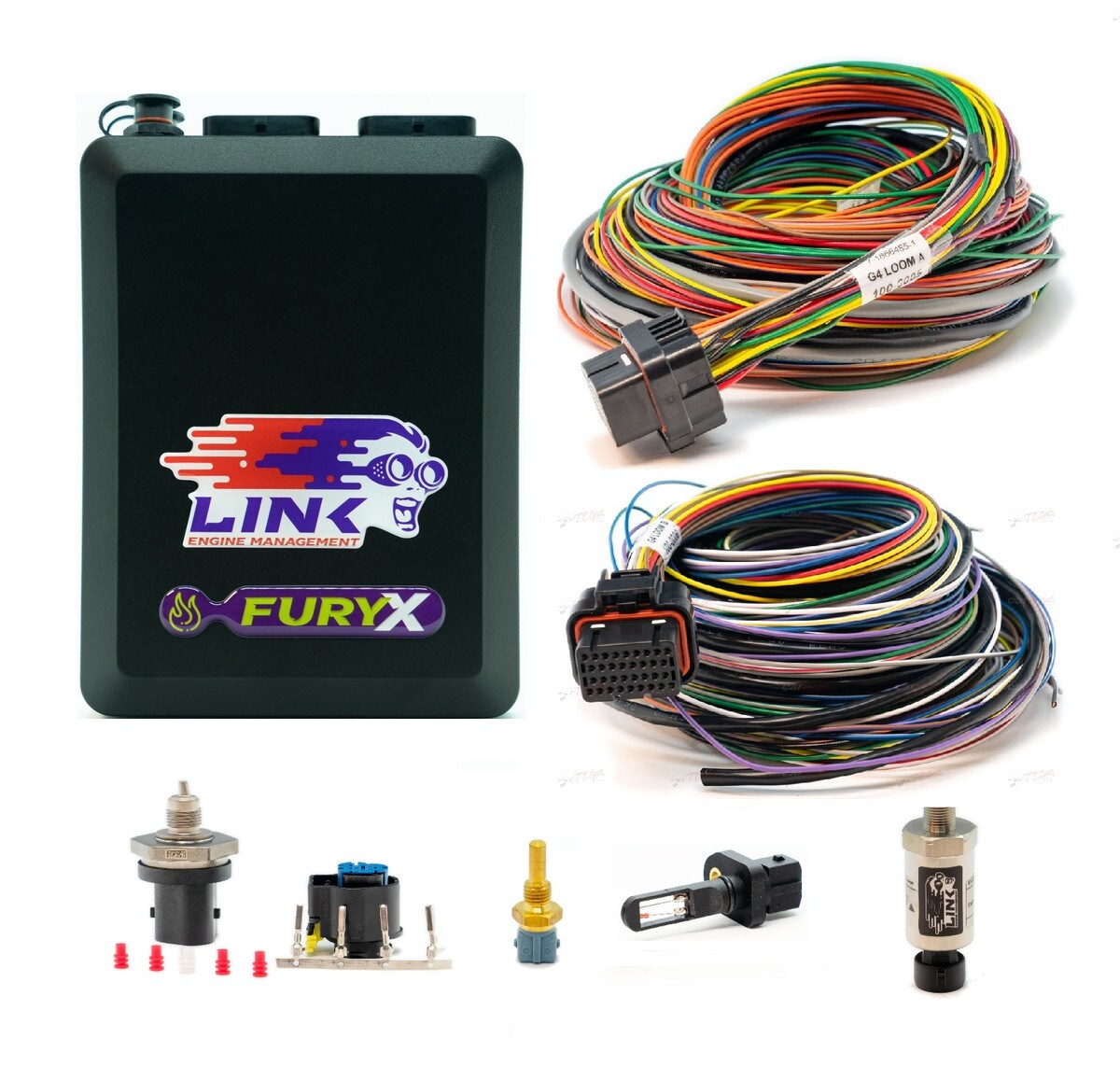

G4X Fury Motorsport Bundle. Everything you need to get started wiring a Link G4X FuryX into your chosen beast!

This is the ideal package for engines with up to six cylinders and wanting to run onboard digital wideband lambda control.

• G4X FuryX - A premium ECU with Onboard Digital Wideband.
• A loom medium - 2.5 m long 'A' loom to suit G4X (FuryX)
• B loom medium - 2.5 m long 'B' loom to suit G4X (FuryX)
• Air Temperature Sensor IATB
• Coolant Temperature Sensor  NTC12
• Pressure sensor - for oil or fuel pressure up to 10 bar PS150
• Combined pressure and temperature sensor CPTS

A premium ECU with Onboard Digital Wideband.

The Fury X is a premium ECU, but with added Onboard Digital Wideband Lambda Control. The Fury X features a faster processor, faster communications & a huge 512 megabytes of data logging!

It has a 8 injector drives and 6 ignition drives. It can control up to 3 rotors or 6 cylinders with sequential injection and direct spark, making it an excellent choice for professional level motorsport or more demanding road car applications.

The added benefit of a Onboard Digital Wideband Lambda Controller means higher accuracy of the unit, plus a simple setup.

The Fury X comes supplied with  a quickstart guide, a mounting bracket and a USB tuning cable.

These are Perfect for all custom wiring jobs utilising Link WireIn ECUs. The A & B Loom has a Link A & B ECU connector at one end and unterminated wires at the other. All wires are colour coded to match the manual. This loom is also available in 400mm, 2.5M and 5m lengths.

2.5 & 5m Looms include:

-Shielded Dual Core wires for trigger signals

-Added ground and 5V wires spliced in with labels suggesting pin use

SPEC OVERVIEW:

Inputs

-8/10* x Digital inputs

-4 x Temperature inputs

-9 x Analog inputs

-2 x Trigger inputs

-2 x Knock inputs

-1 x LSU 4.9 Wideband lambda sensor input

Outputs

-8 x Injection drives

-6 x Ignition drivers

-10 x Auxiliary outputs^

-+5V Sensor power supply

-+8V Sensor power supply

-^unused fuel and ignition drives can be used as additional Aux outputs

Communications

-2* x CAN bus

-1x Serial (RS232) connection

-1x USB tuning connection

Physical

-Dimensions: 185mm(L) x 130mm(W) x 40mm(H) (without looms)

-Mass: 680grams

*DI 9 & 10 pins used by second CAN Bus

What's in the box?

Supplied with USB tuning cable and mounting bracket.

Manufacturing Standard

ISO 13485
