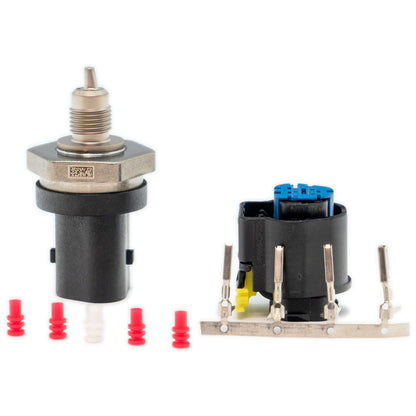

Link 10 Bar Combined Pressure and Temperature Sensor (CPTS)

A combined liquid pressure and temperature sensor providing two measurements in a single unit. Designed for monitoring fuel, oil, and transmission systems when used with Link ECUs.

What it’s used for

• Measuring liquid pressure and temperature simultaneously
• Fuel pressure and temperature monitoring
• Engine oil or transmission oil pressure and temperature monitoring

Compatibility

• Link G4 ECUs
• Link G4+ ECUs
• Link G4X ECUs
• PCLink software

Notes

• Suitable for diesel, gasoline, E85, engine oil, and transmission oil
• Not suitable for water or coolant
• Combined sensor reduces the need for multiple fittings

Specifications

• Liquid pressure range up to 10.0 bar (145 PSI / 1000 kPa)
• Liquid temperature range −40 to 140 °C (−40 to 284 °F)
• 45 degree cone seat
• M10 x 1 fitting

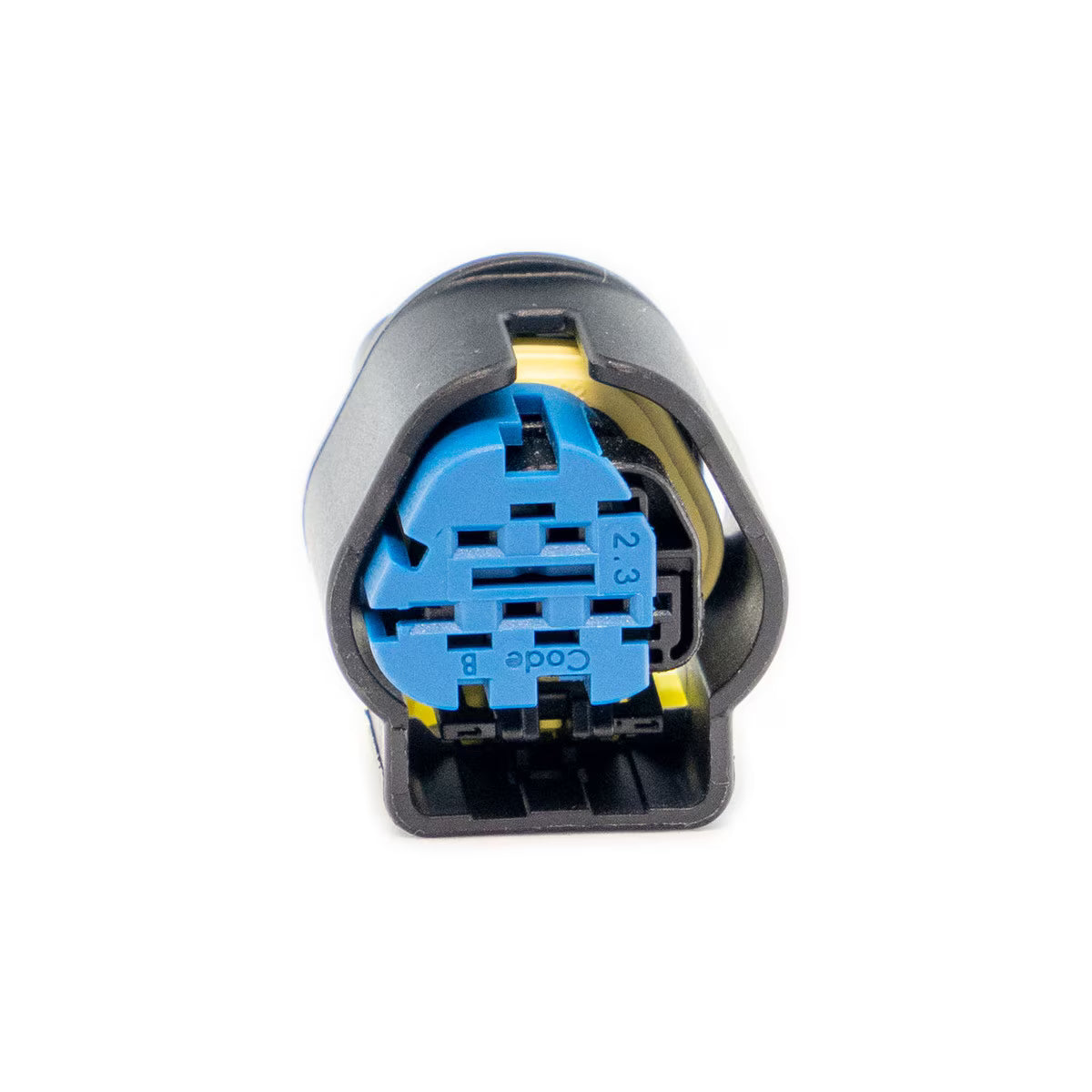

• Includes Bosch Trapez 4-pin mating connector kit
