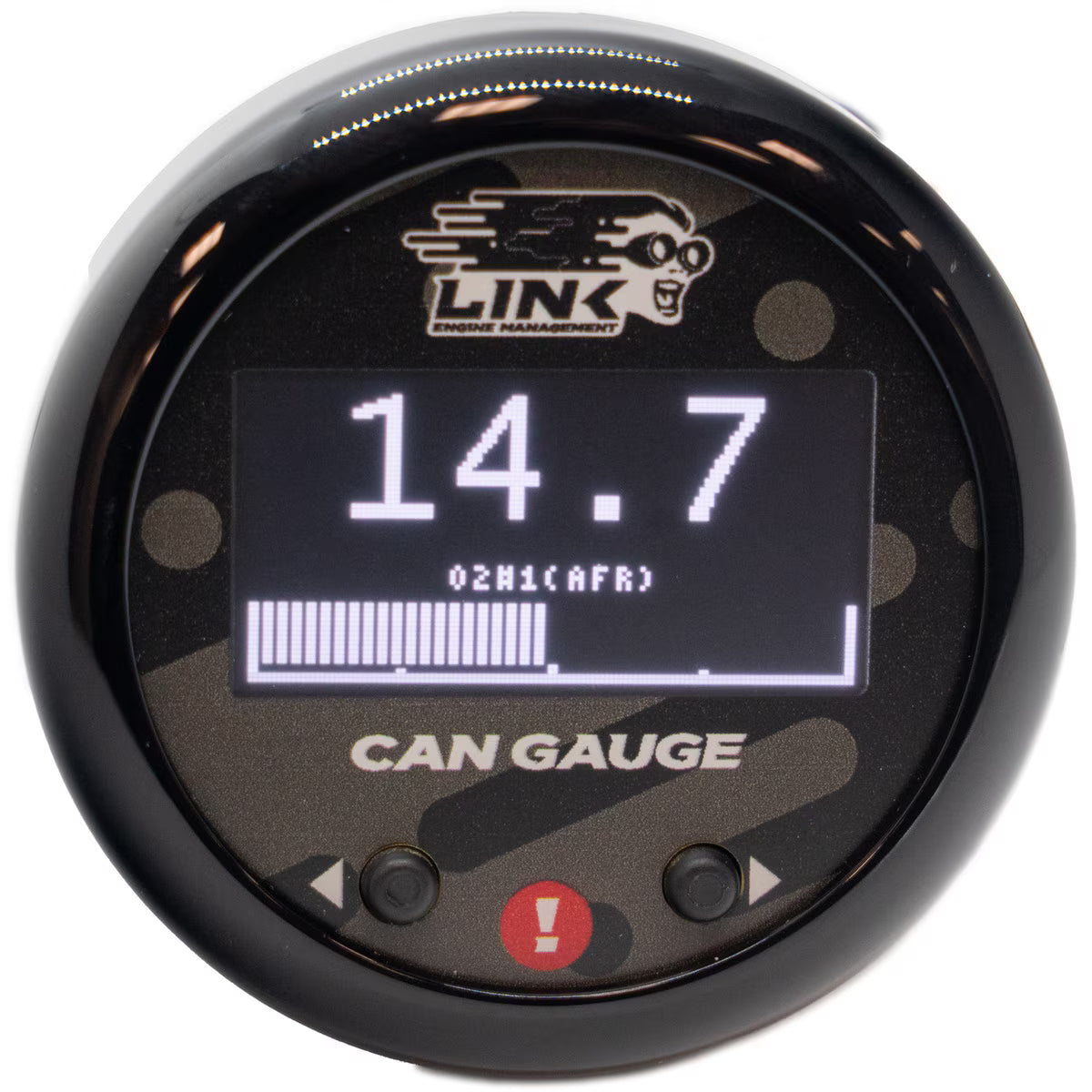

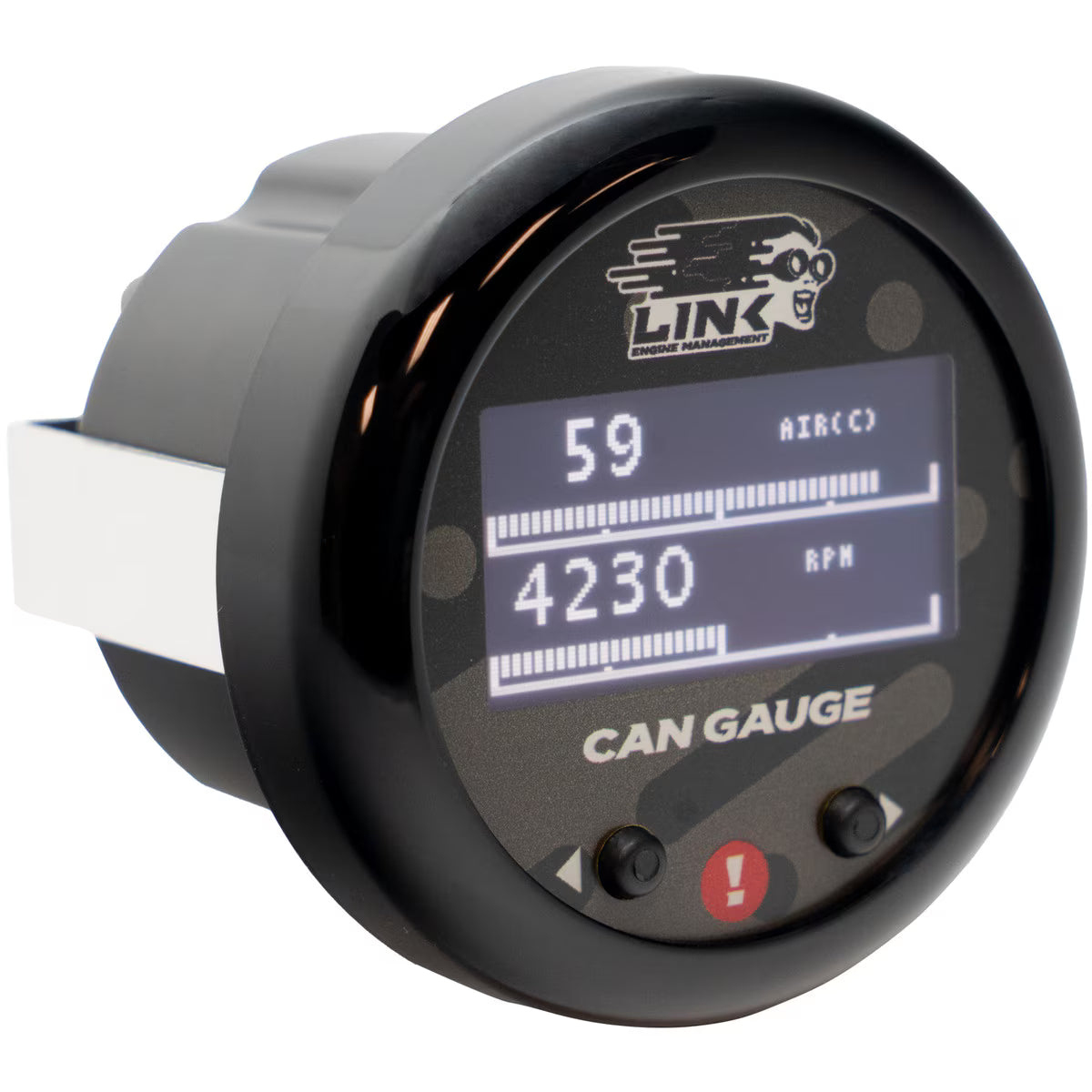

Link CAN Gauge OLED 52mm

Compact 52 mm CAN based OLED gauge for displaying real time data from a Link ECU. The Link CAN Gauge reads data directly from the ECU CAN stream and displays it on a high contrast OLED screen.

What it’s used for

• Displaying real time ECU data via CAN
• Monitoring parameters such as boost pressure, air fuel ratio, coolant temperature, fuel pressure, and ethanol content
• Providing configurable warning alerts for critical engine conditions

Compatibility

• All Link G4+, G4X, and G5 wire-in ECUs
• All Link G4+, G4X, and G5 plug-in ECUs
• Link CAN networks using compatible CAN connection cables

Notes

• Gauge configuration via free smartphone app
• Supports daisy chaining of multiple Link CAN Gauges
• OLED display automatically dims for night use

Features

• High contrast OLED display
• Configurable 1, 2, or 4 gauge layouts
• Up to 10 configurable display pages
• Customisable warning screens and LED alerts
• Front mounted buttons for page navigation

Specifications

• Display type: OLED
• Gauge size: 52 mm (2 inch)
• Housing: injection moulded
• CAN connection: Link CAN

What’s included

• 1 x 52 mm OLED CAN Gauge

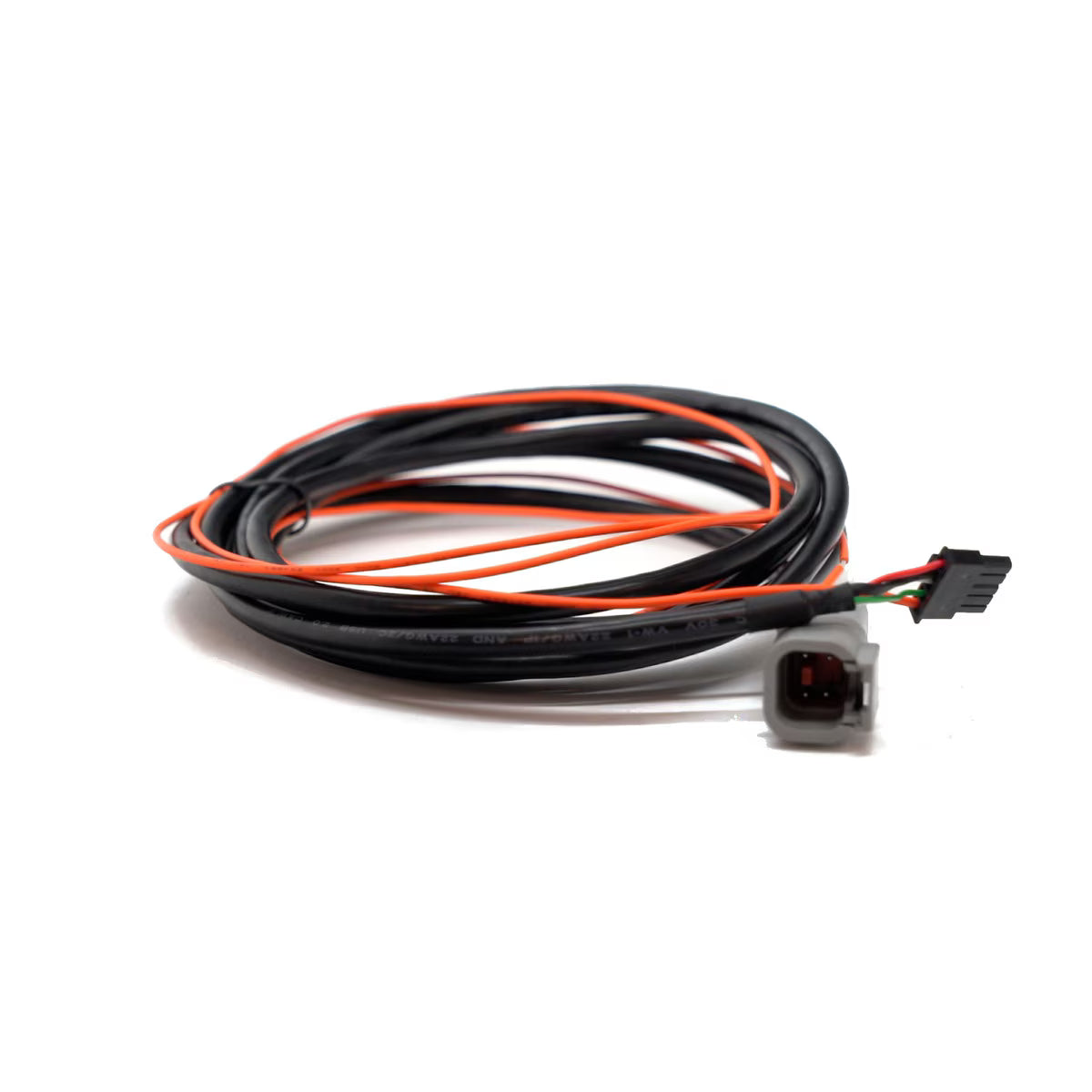

• 1 x DTM4 CAN Gauge connection cable

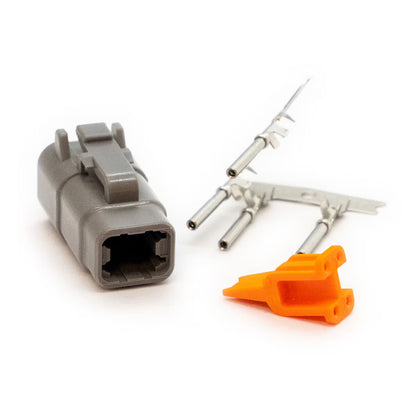

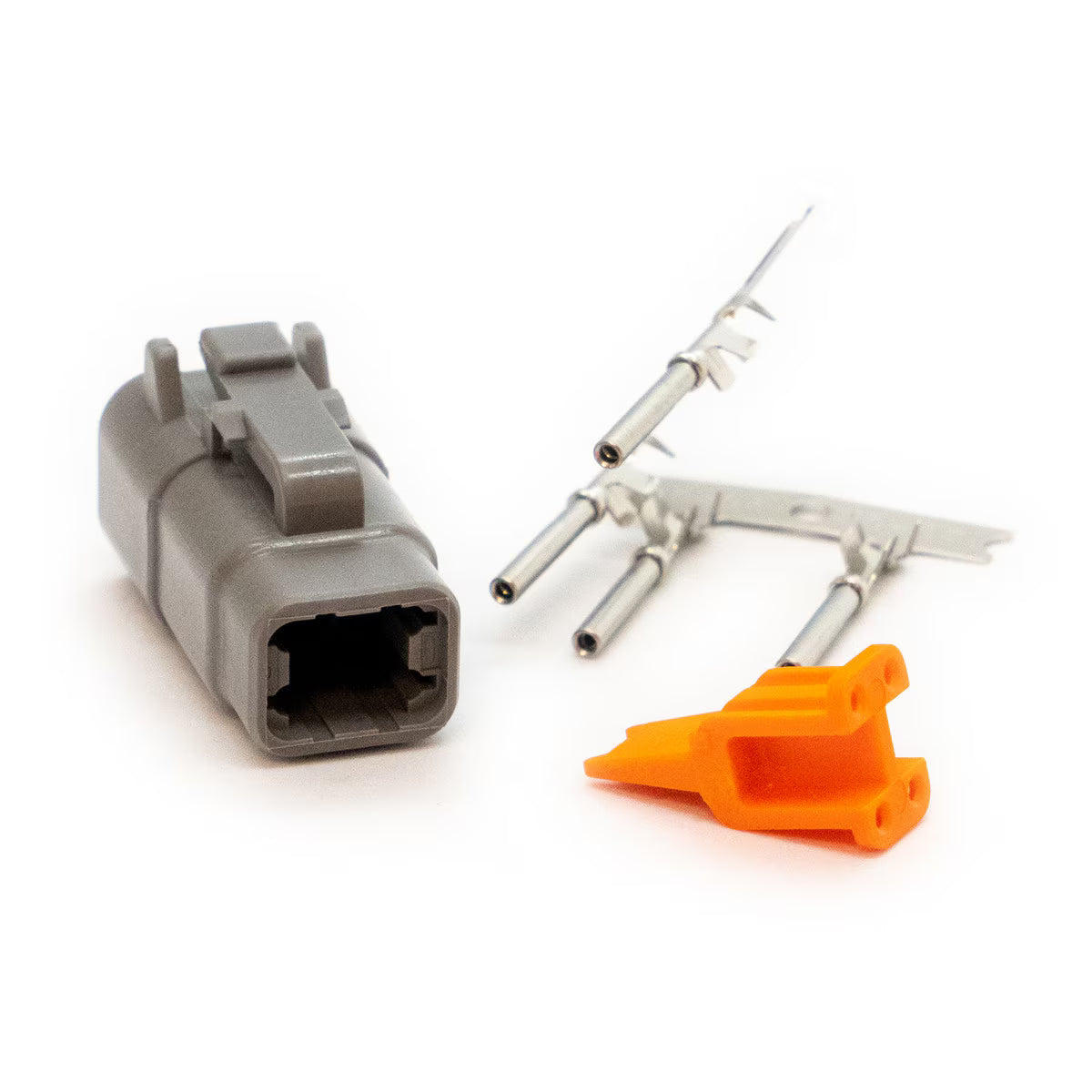

• 1 x DTM4 mating connector kit
• 1 x mounting bracket
• 1 x quick start guide
