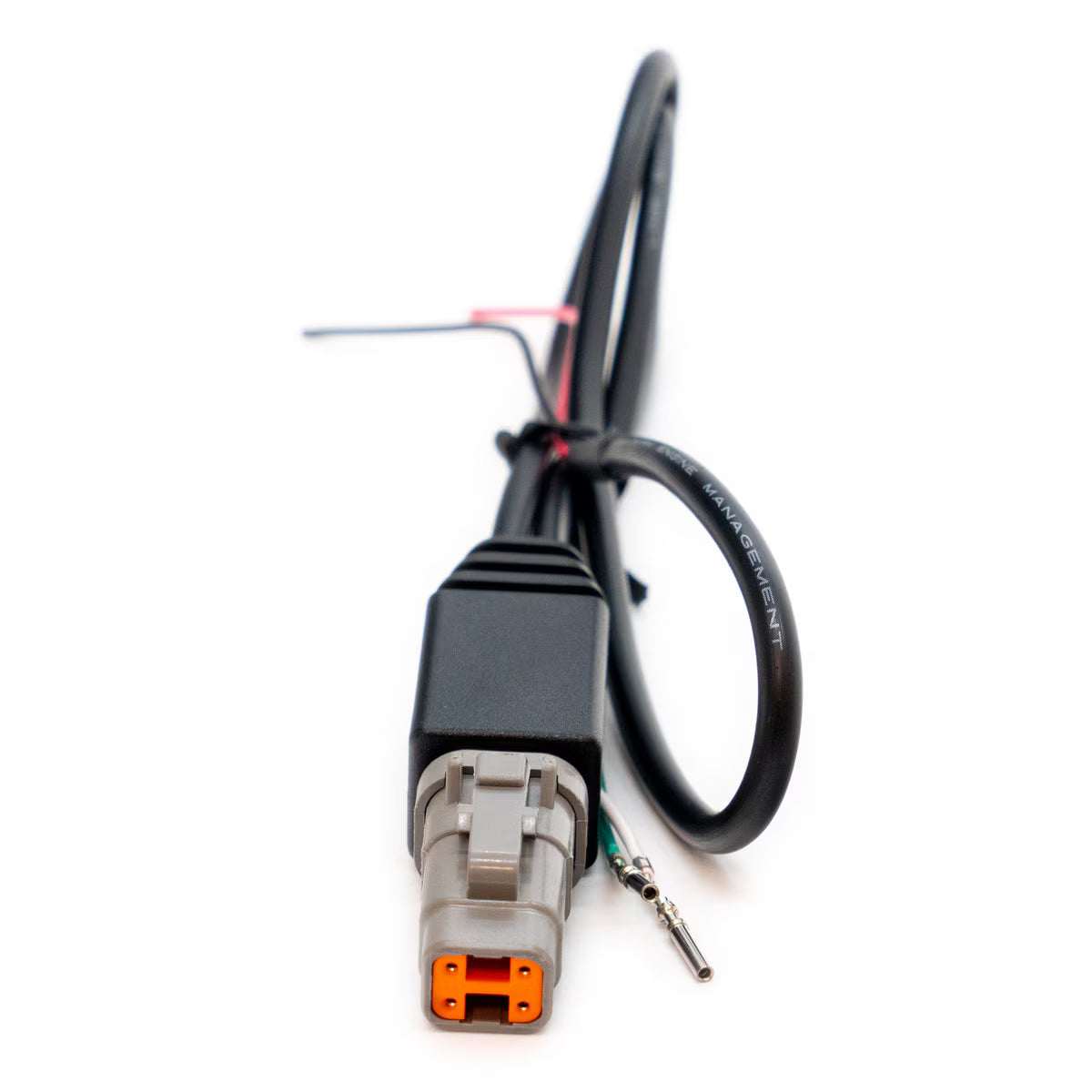

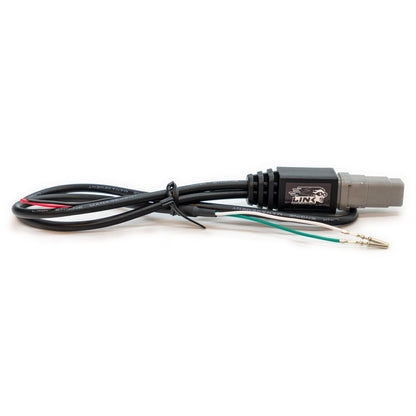

Link CAN Connection Cable for Wire-In ECUs (CANSS)

The Link CAN Connection Cable (CANSS) is used to add CAN communication to Link Wire-In ECUs where CAN is accessed via the ECU header. It provides CAN high, CAN low, power, and ground for connecting CAN accessories.

What it’s used for

• Adding CAN communication to compatible Wire-In ECUs
• Connecting CAN devices such as dashes, lambda controllers, and EGT modules
• Providing CAN and power wiring from the ECU header

Compatibility

• Link G4X and G4+ Atom (CAN1)
• Link G4X and G4+ Monsoon (CAN1)
• Link G4X and G4+ Storm (CAN2)
• Link G4X and G4+ Xtreme (CAN2)
• Link G4X and G4+ Fury (CAN2)
• Link G5 Voodoo Pro (CAN1)
• Link G4+ Force (CAN2)
• Link G4+ Thunder (CAN2)

Notes

• Designed for Wire-In ECUs with CAN available on the ECU header
• CAN high and CAN low are terminated with Superseal terminals
• 12V and ground are provided via flying leads

Specifications

• Cable type: CAN connection cable for Wire-In ECUs
• ECU connector: Header connection
• CAN connector: DTM4 male
• CAN loom length: 300 mm
• Flying lead length: 500 mm
• Provides CAN high, CAN low, 12V, and ground

DTM4 pinout

• Pin 1: 12V
• Pin 2: Ground
• Pin 3: CAN Low
• Pin 4: CAN High
