Link CAN Connection Cable for Plug-In ECUs (CANJST)

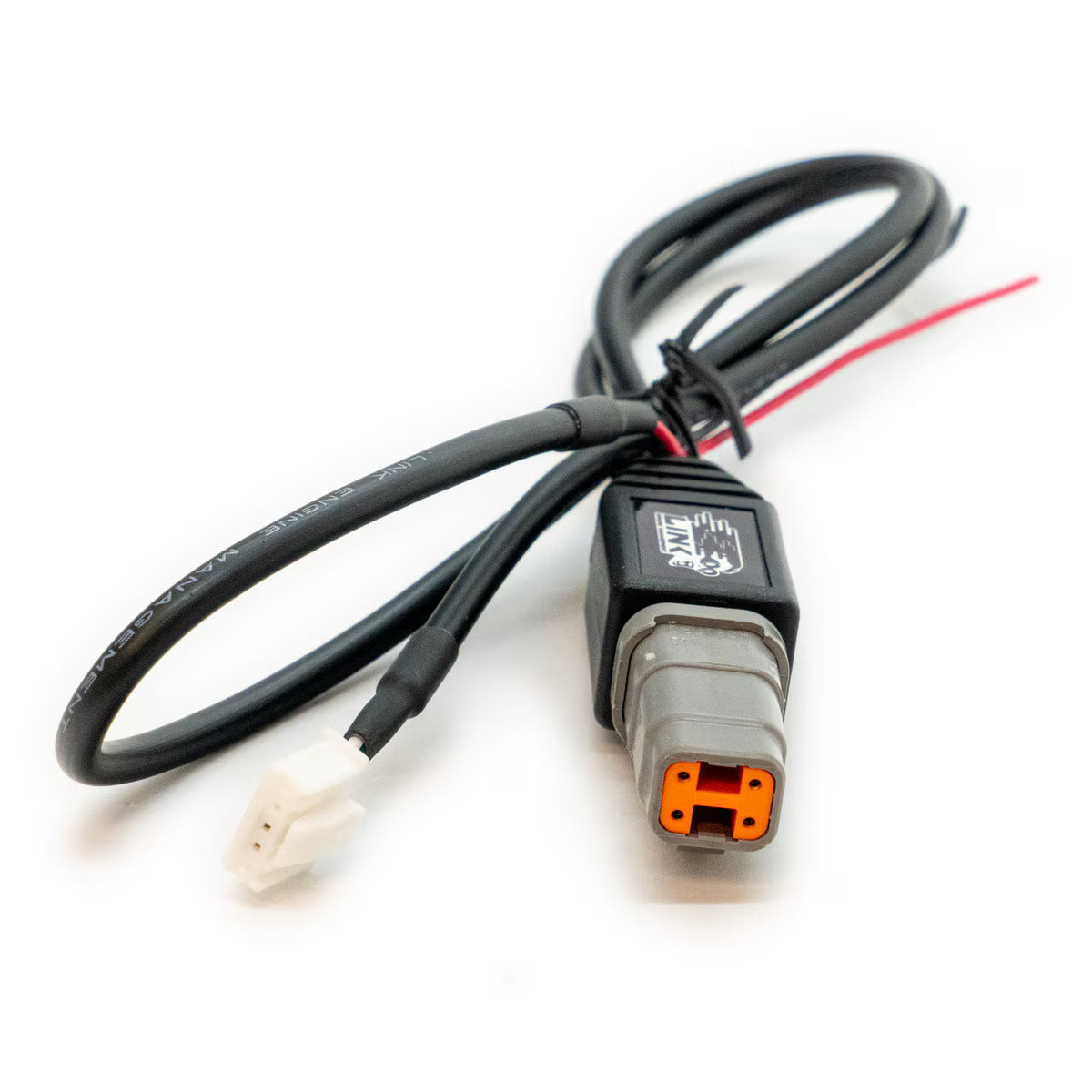

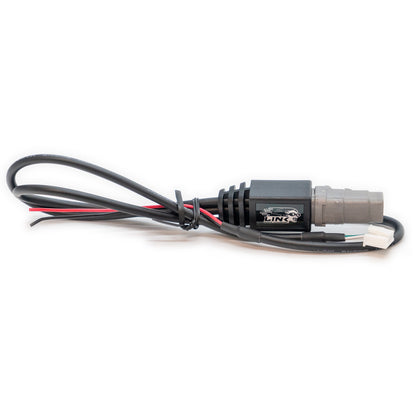

The Link CAN Connection Cable (CANJST) is used to add CAN communication to compatible Link G4+ and G4X Plug-In ECUs fitted with a 5 pin CAN connector. It plugs directly into the ECU CAN socket and provides CAN and power via a DTM4 connector.

What it’s used for

• Adding CAN communication to supported Plug-In ECUs
• Connecting CAN devices such as splitters, modules, and accessories
• Providing CAN high, CAN low, power, and ground from the ECU

Compatibility

• Link G4+ Plug-In ECUs with 5 pin CAN connector
• Link G4X Plug-In ECUs with 5 pin CAN connector

Notes

• Plugs directly into the ECU CAN socket on the PCB
• 12V and ground are provided via flying leads
• Terminates to a DTM4 male connector compatible with Link CAN accessories
• Not compatible with certain Plug-In ECUs that require the CANJST4 cable

Specifications

• Cable type: CAN connection cable for Plug-In ECUs
• ECU connector: JST (5 pin)
• CAN connector: DTM4 male
• Length: 300 mm
• Provides CAN high, CAN low, 12V, and ground

DTM4 pinout

• Pin 1: 12V
• Pin 2: Ground
• Pin 3: CAN Low
• Pin 4: CAN High
