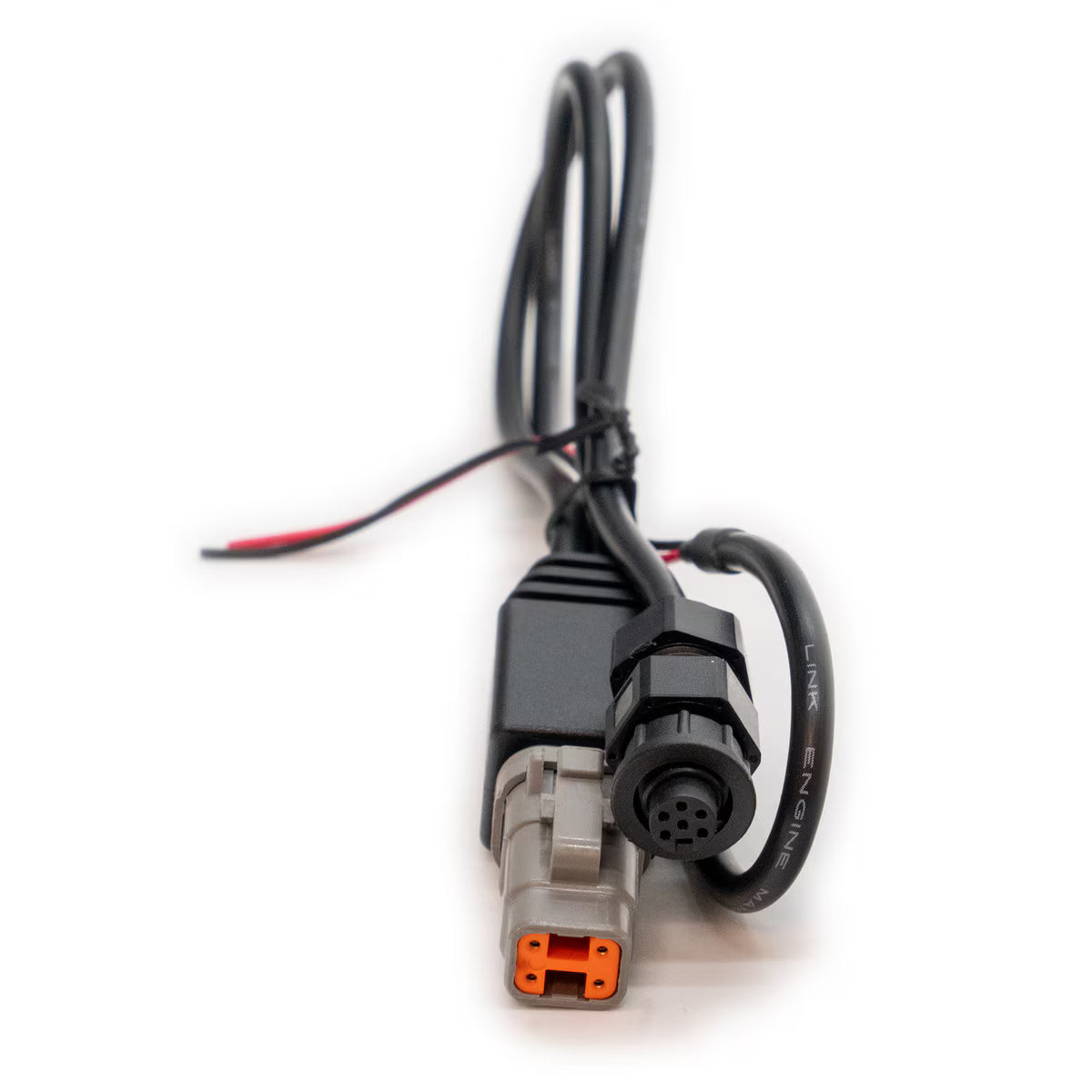

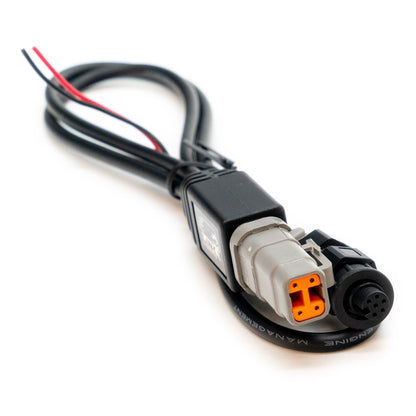

Link CAN Connection Cable for WireIn ECUs (CANLTW)

This cable is used to add CAN communication to Link WireIn ECUs that provide CAN access via the 6 pin round CAN connector on the front of the ECU.

What it’s used for

• Adding CAN communication to supported Link WireIn ECUs
• Connecting CAN devices to ECUs using the front 6 pin CAN connector

Compatibility

• G5 Voodoo Pro (CAN1)
• G4X Xtreme (CAN1)
• G4+ Xtreme (CAN1)
• G4X Fury (CAN1)
• G4+ Fury (CAN1)
• G4+ Force (CAN1)
• G4+ Thunder (CAN1)

Specifications

• DTM4 male connector to LTW 6 pin connector
• CAN loom length: 300 mm
• Flying lead length: 500 mm
• Includes 12V and ground flying leads
• DTM4 pinout:
  • Pin 1: 12V
  • Pin 2: Ground
  • Pin 3: CAN L
  • Pin 4: CAN H
