Link B Loom Medium 2.5 m (2LB)

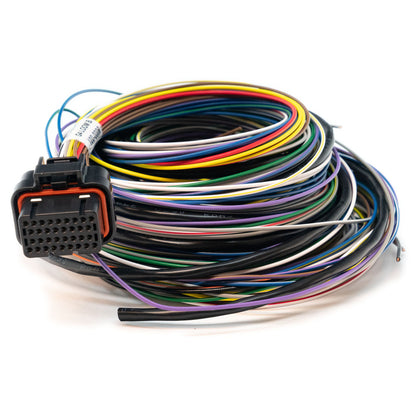

This B loom is a 2.5 metre unterminated wiring loom designed for custom wiring installations using Link WireIn ECUs.

What it’s used for

• Building custom wiring looms for Link WireIn ECUs
• Providing additional ECU connections via the B connector
• Extending wiring for custom engine and vehicle installations

Compatibility

• Link G4X Storm (Loom A also required)
• Link G4X Fury (Loom A also required)
• Link G4+ Fury (Loom A also required)
• Link G4X Xtreme (Loom A also required)
• Link G4+ Xtreme (Loom A also required)
• Link G4+ Thunder (Loom A and connector kits C and D may also be required)
• Link G4+ Storm Black (Loom A also required)
• Vipec V88 (Loom A also required)
• Vipec i88 (Loom A also required)

Notes

• Loom B is not required for older silver or blue G4 or G4+ Storm models
• This loom is also available in shorter and longer lengths

Specifications

• Length: 2.5 metres

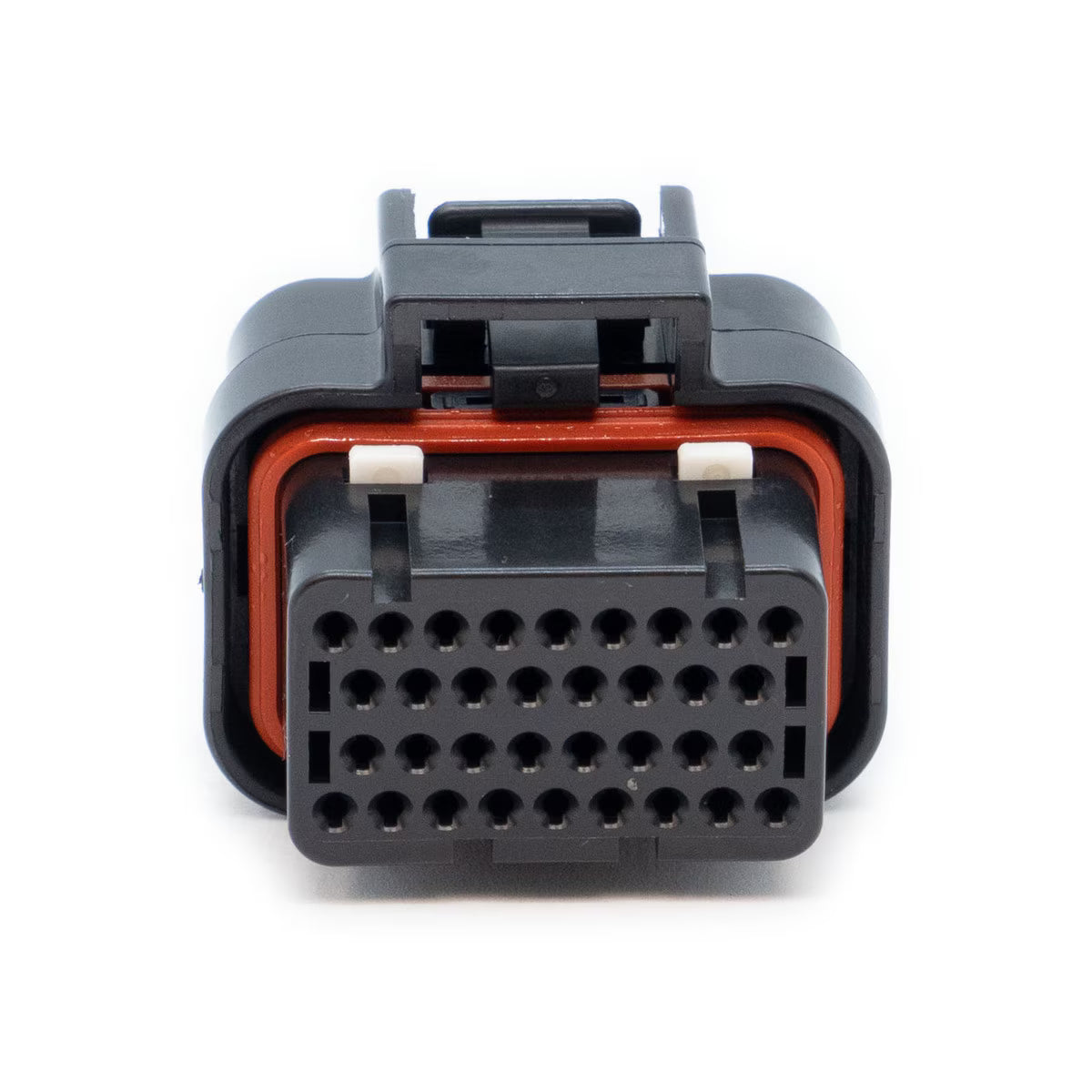

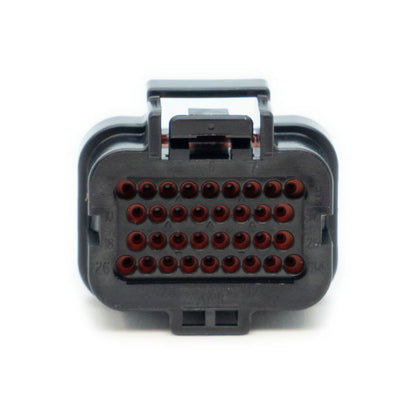

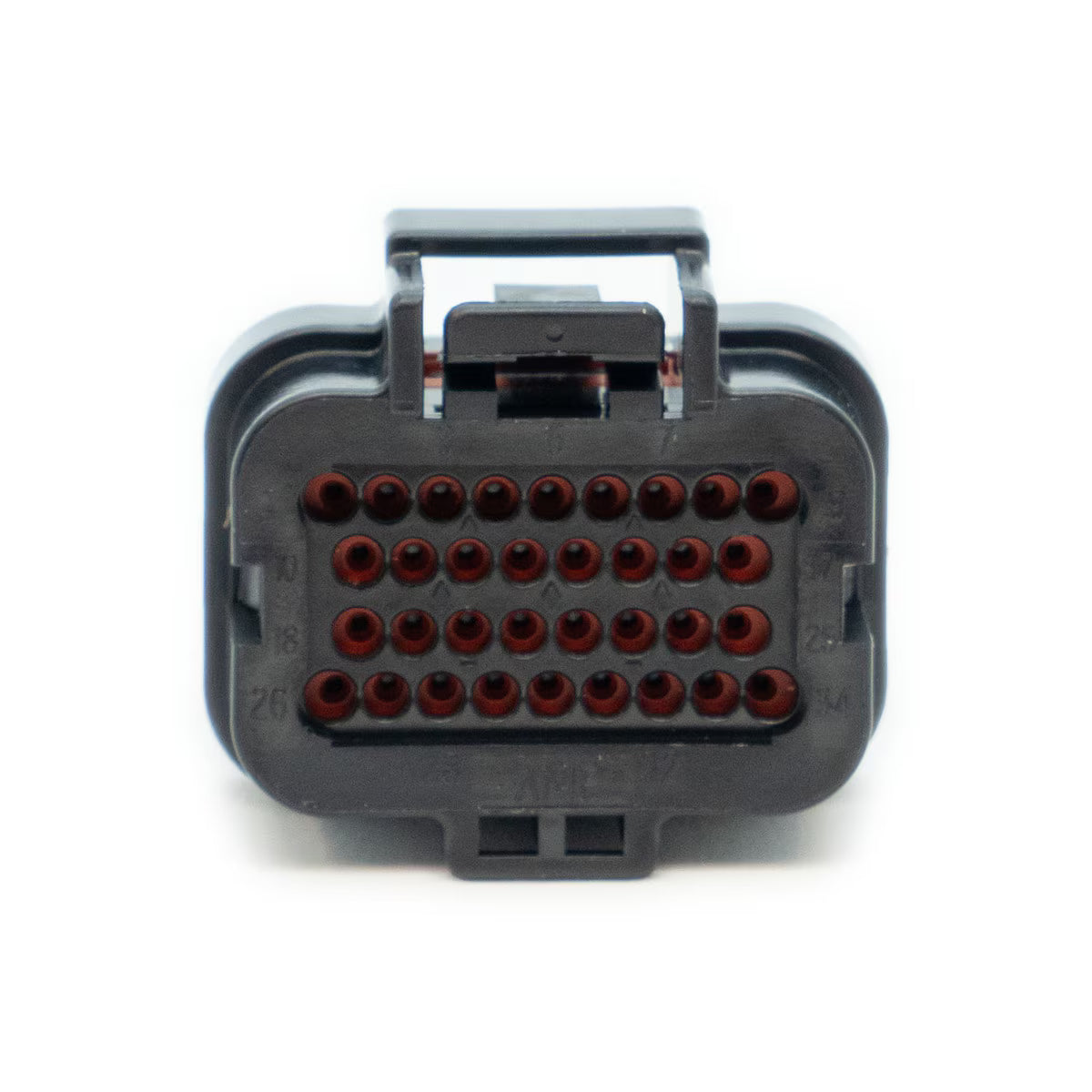

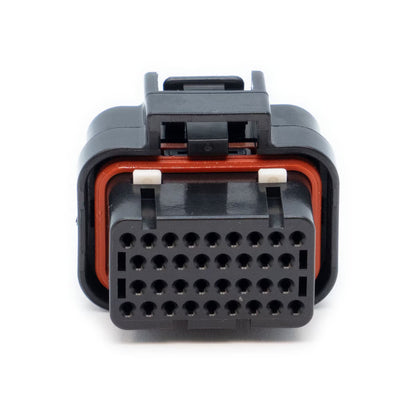

• Link B ECU connector at one end
• Unterminated wires at the opposite end
• All wires colour coded to match Link ECU manuals
• 0.75 mm² wire used for power and ground circuits (pins A5, B5, A25, A34, B25, B34)
• 0.5 mm² wire used for all other circuits
• Includes shielded dual core wires for knock sensor signals
