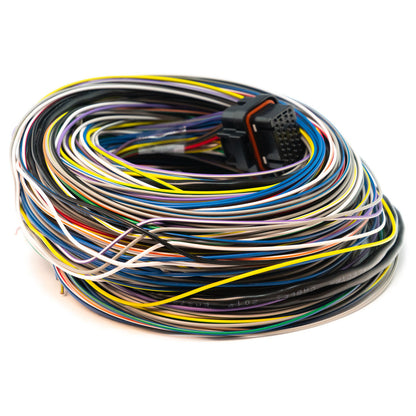

Link A Loom Long 5 m (5LA)

This A loom is a 5 metre unterminated wiring loom designed for custom wiring installations using Link WireIn ECUs.

What it’s used for

• Building custom wiring looms for Link WireIn ECUs
• Providing primary ECU connections via the A connector
• Extending wiring for custom engine and vehicle installations

Compatibility

• All Link G4X WireIn ECUs (Loom B also required for Storm, Fury, and Xtreme)
• Link G4+ Atom (G4+ models only)
• Link G4+ Atom II
• Link G4+ Monsoon
• Link G4 Storm
• Link G4+ Storm Blue
• Link G4+ Storm Black (Loom B also required)
• Link G4 RX
• Link G4+ Fury (Loom B also required)
• Link G4 Xtreme (Loom B also required)
• Link G4+ Xtreme (Loom B also required)
• Link G4+ Thunder (Loom B and connector kits C and D may also be required)
• Vipec V44
• Vipec i44
• Vipec V88 (Loom B also required)
• Vipec i88 (Loom B also required)

Notes

• This loom is also available in shorter lengths

Specifications

• Length: 5 metres

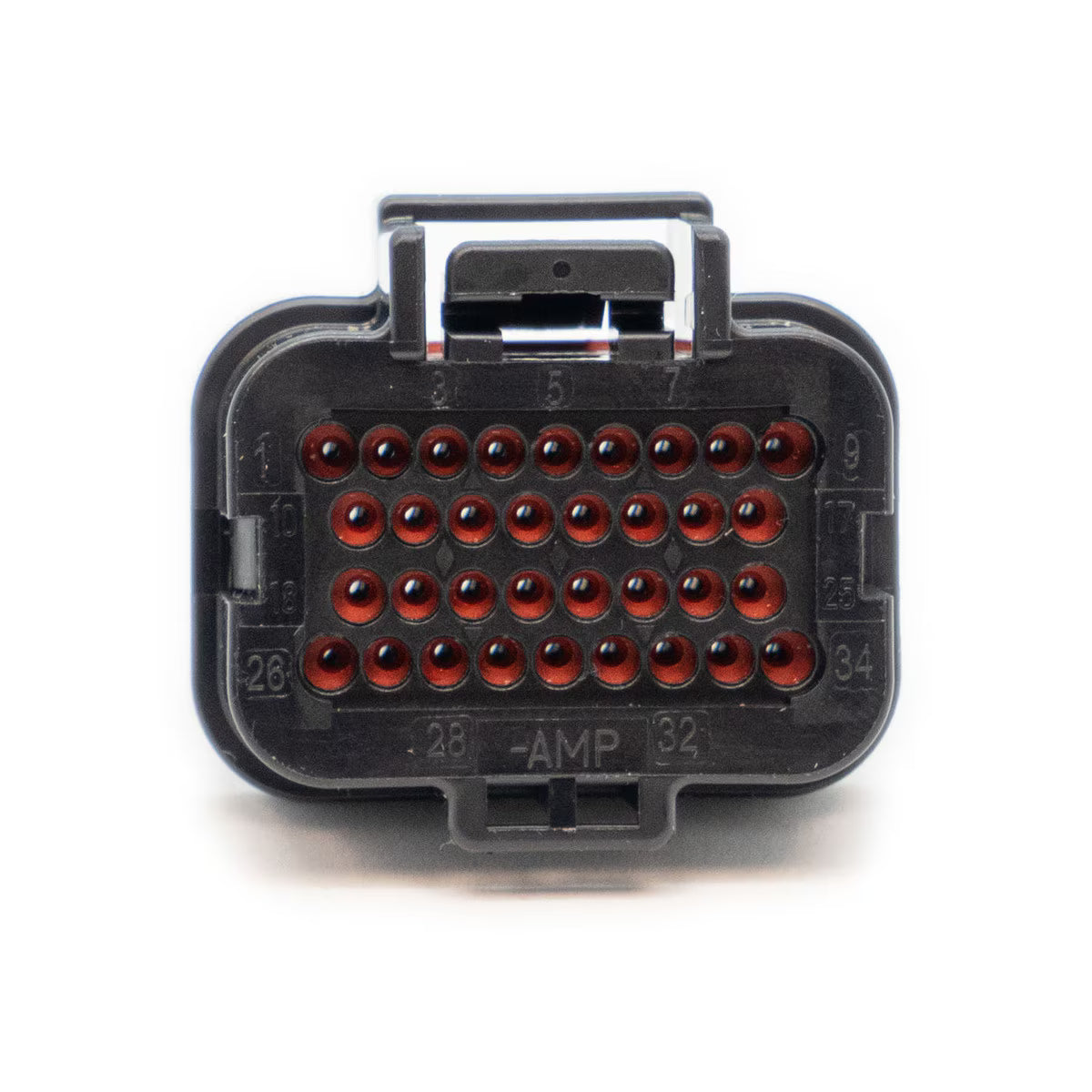

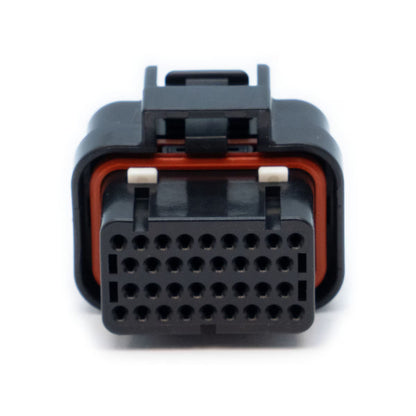

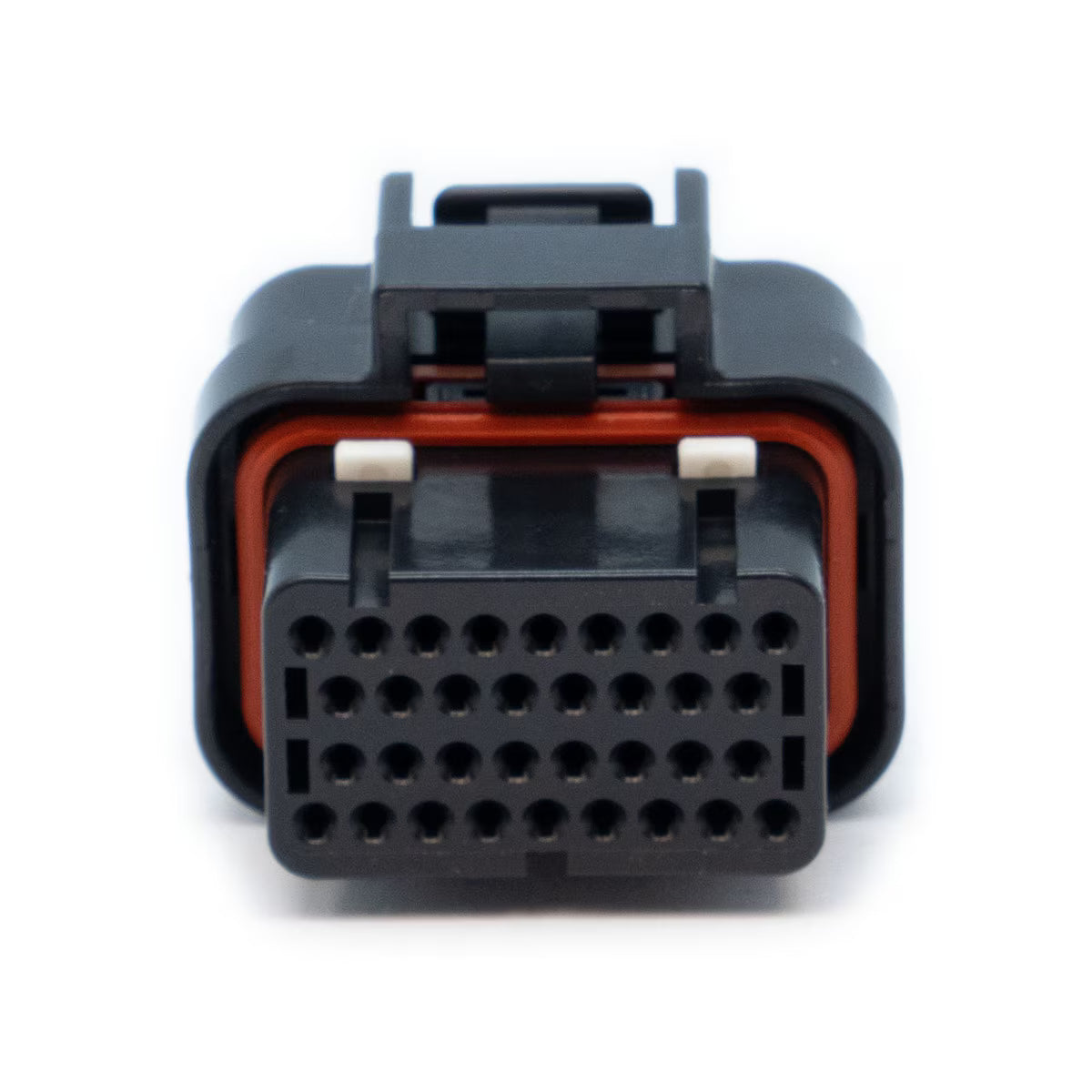

• Link A ECU connector at one end
• Unterminated wires at the opposite end
• All wires colour coded to match Link ECU manuals
• 0.75 mm² wire used for power and ground circuits (pins A5, B5, A25, A34, B25, B34)
• 0.5 mm² wire used for all other circuits
• Includes shielded dual core wires for trigger signals
• Includes additional labelled ground and 5 V wires spliced for suggested pin use
