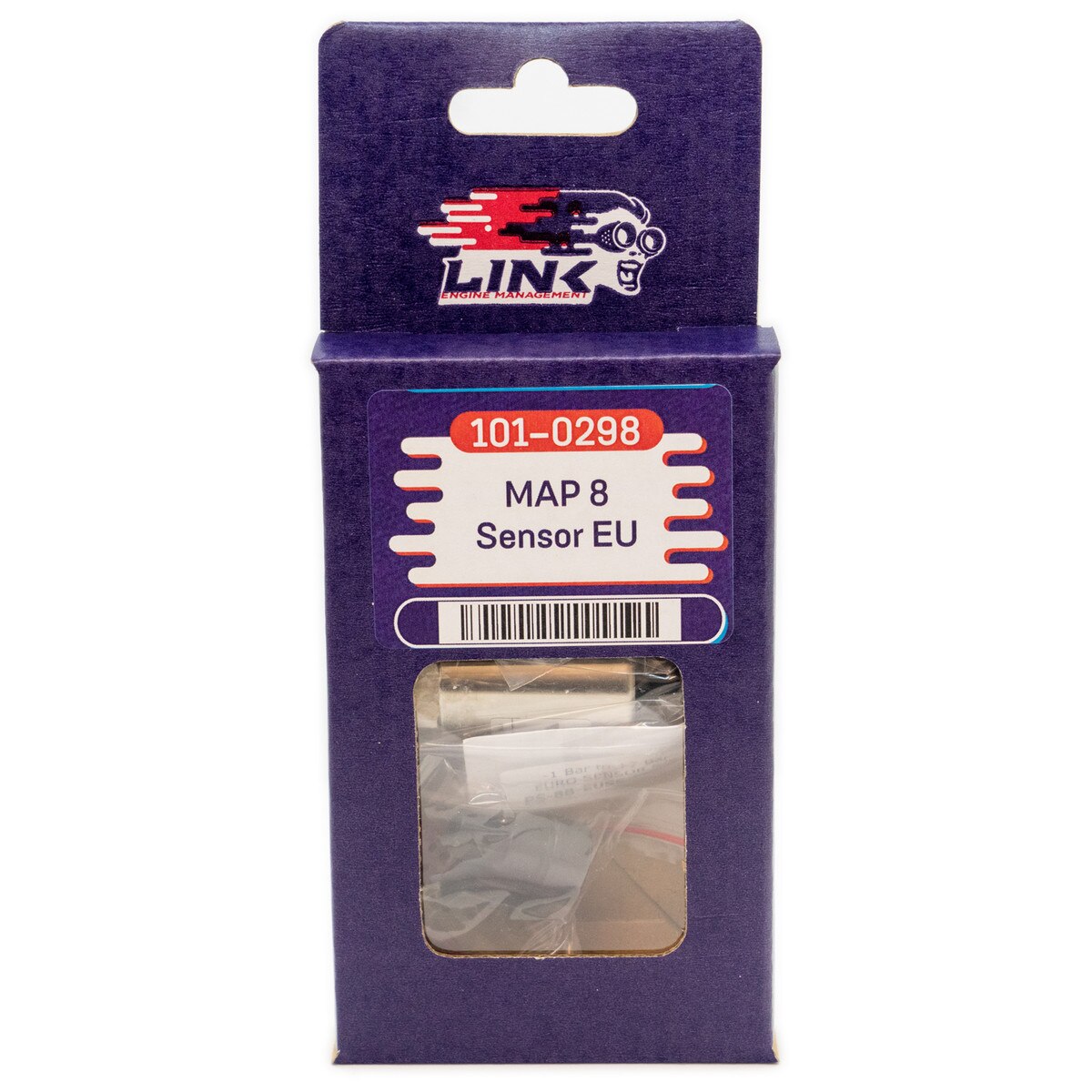

Link 8 Bar MAP Sensor EU (MAP8EU)

An 8 bar MAP sensor designed for extreme boost turbocharged and supercharged applications. Suitable for very high boost pressure measurement when used with Link ECUs.

What it’s used for

• Measuring manifold absolute pressure on extreme boost engines
• Supporting engine load calculation and fuel control
• Turbocharged or supercharged applications up to 7.0 bar boost

Compatibility

• Link G4 ECUs
• Link G4+ ECUs
• Link G4X ECUs
• PCLink software

Notes

• Variohm Eurosensor design
• Select sensor type as “Variohm 8 Bar” in PCLink
• Includes connector housing and pins

Specifications

• 8 bar MAP sensor (reads up to 7 bar absolute pressure)
• Calibration: 0 kPa = 0.5 V, 800 kPa = 4.5 V
• Pin A: 0 V
• Pin B: 5 V
• Pin C: Signal
