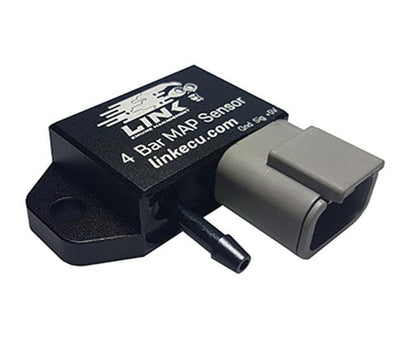

Link 4 Bar MAP Sensor (MAP4)

A 4 bar absolute MAP sensor designed for accurate intake pressure measurement on high boost turbocharged and supercharged engines. Suitable for advanced boost applications when used with Link ECUs.

What it’s used for

• Measuring manifold absolute pressure on high boost engines
• Supporting engine load calculation and fuel control
• Turbocharged or supercharged applications up to 3.0 bar boost

Compatibility

• Link G4 ECUs
• Link G4+ ECUs
• Link G4X ECUs
• PCLink software

Notes

• Reads up to 4 bar absolute pressure
• Suitable for boost pressures up to 3.0 bar (approximately 44 PSI)
• Sensor wiring pinout is marked directly on the housing
• Select sensor type as “Link 4 Bar” in PCLink
• Sensor should be mounted higher than the intake manifold port

Specifications

• 4 bar absolute pressure range
• Compact aluminium enclosure
• 4 mm (3/16”) hose connector nipple
• Easy mounting using two bolt holes

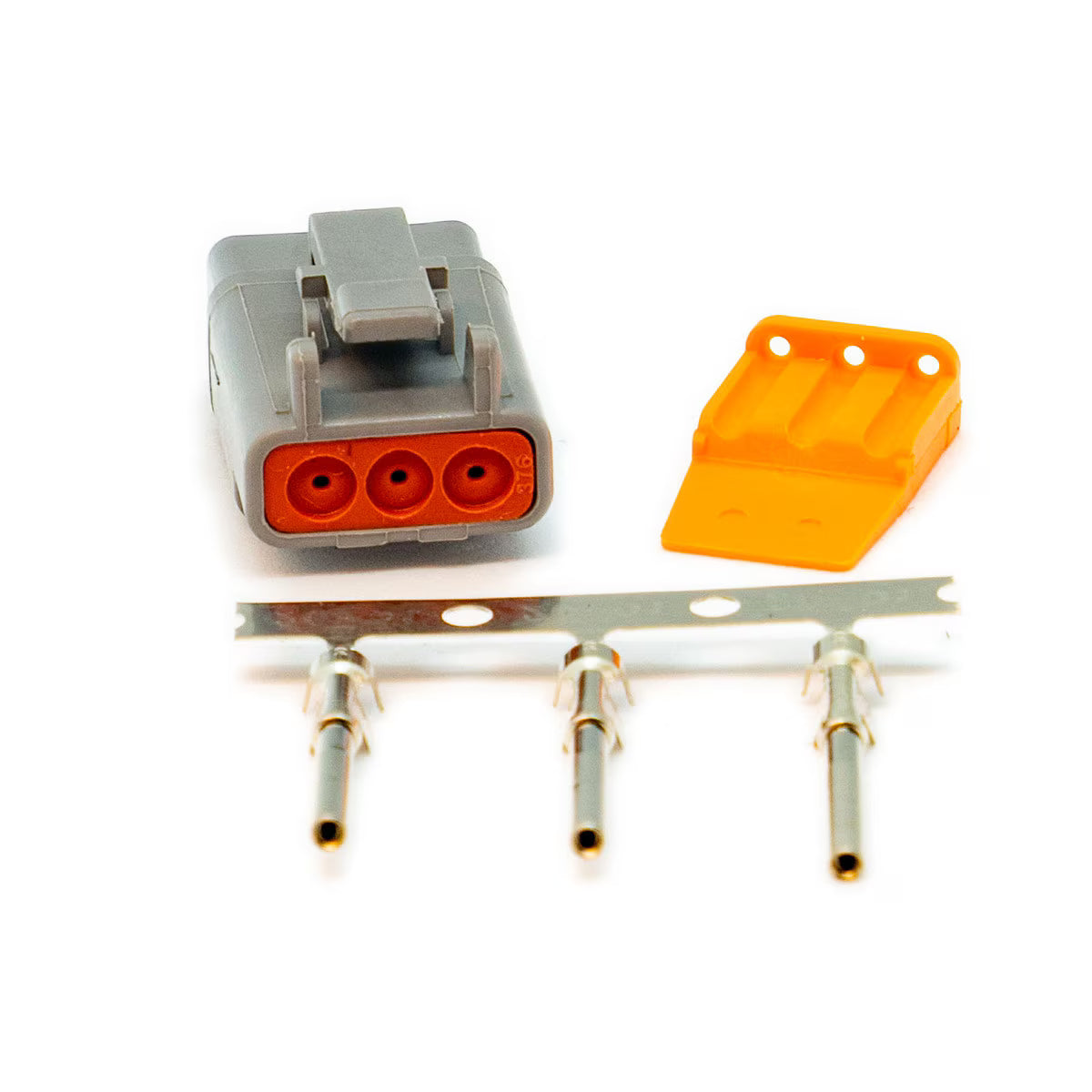

• Includes 3-pin Deutsch DTM connector kit
