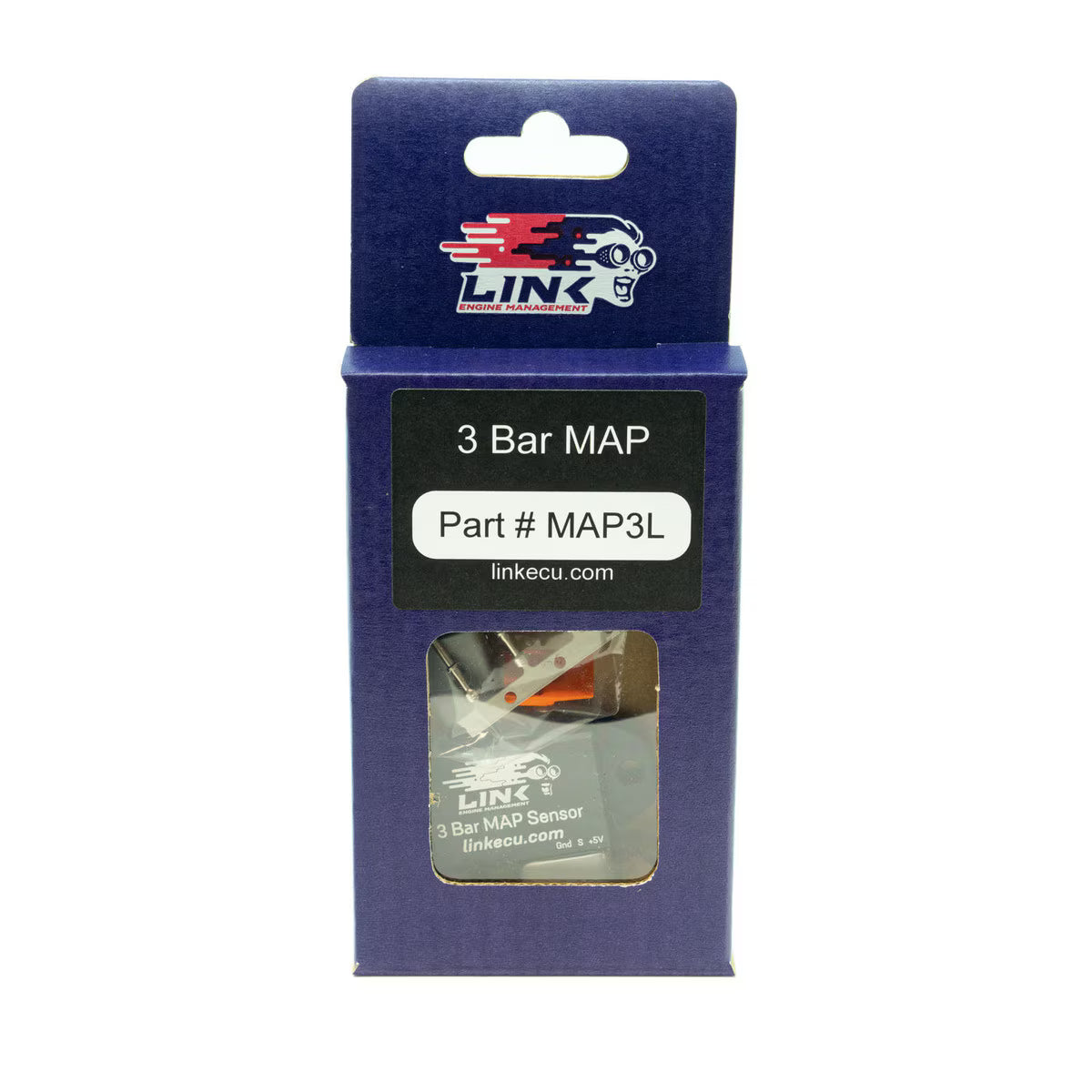

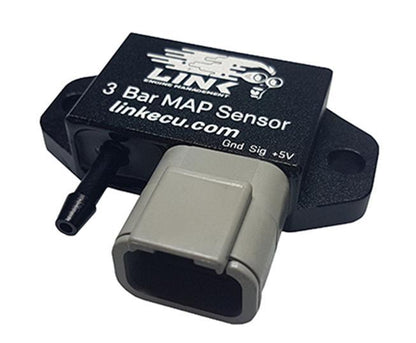

Link 3 Bar MAP Sensor (MAP3)

A 3 bar absolute MAP sensor designed for accurate intake pressure measurement on turbocharged and supercharged engines. Suitable for higher boost applications when used with Link ECUs.

What it’s used for

• Measuring manifold absolute pressure on boosted engines
• Supporting engine load calculation and fuel control
• Turbocharged or supercharged applications up to 2.0 bar boost

Compatibility

• Link G4 ECUs
• Link G4+ ECUs
• Link G4X ECUs
• PCLink software

Notes

• Reads up to 3 bar absolute pressure
• Suitable for boost pressures up to 2.0 bar (approximately 29 PSI)
• Sensor wiring pinout is indicated on the housing
• Select sensor type as “Link 3 Bar” in PCLink
• Sensor should be mounted higher than the intake manifold port

Specifications

• 3 bar absolute pressure range
• Compact aluminium enclosure
• 4 mm hose connector nipple
• Easy mounting using two bolt holes

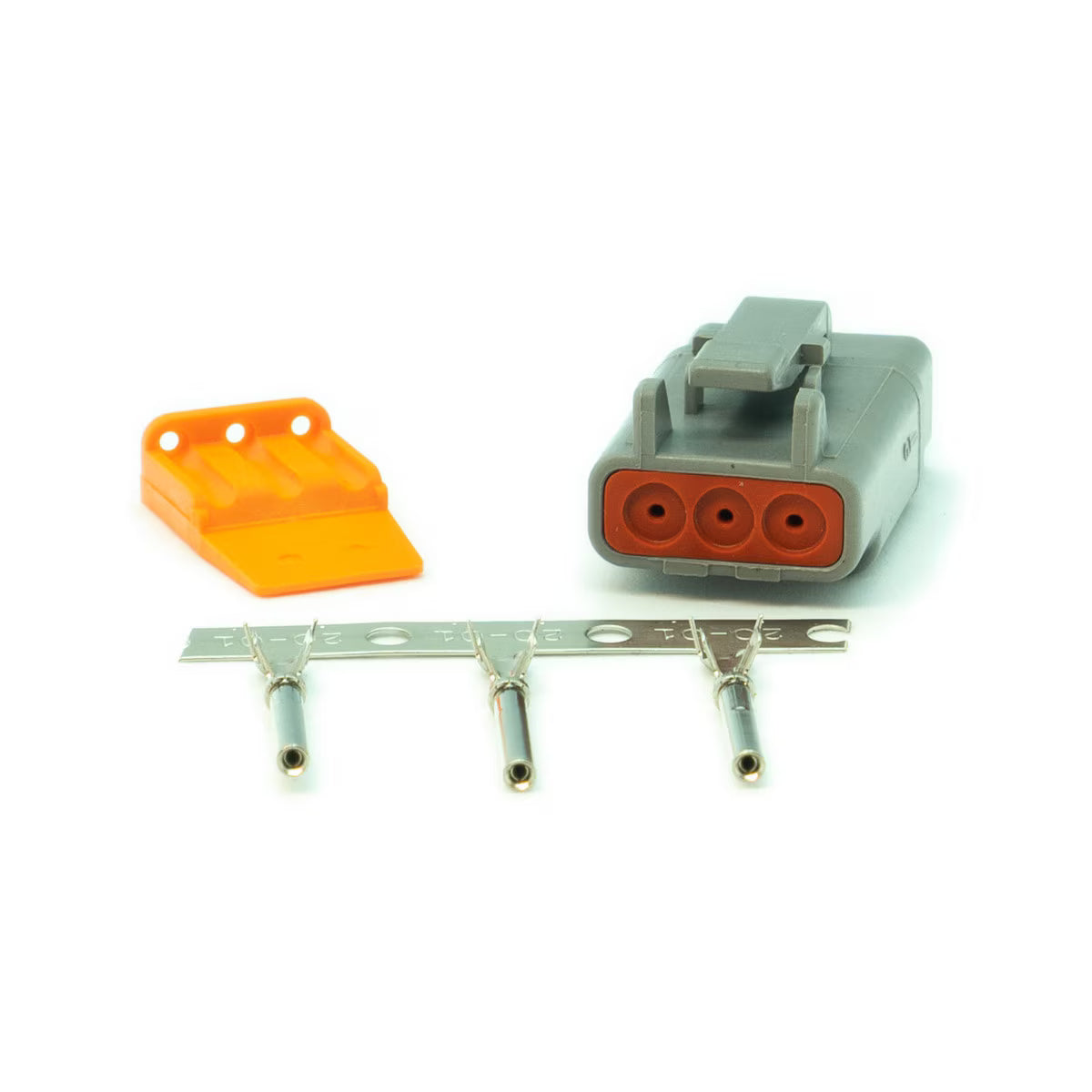

• Includes 3-pin Deutsch connector kit
