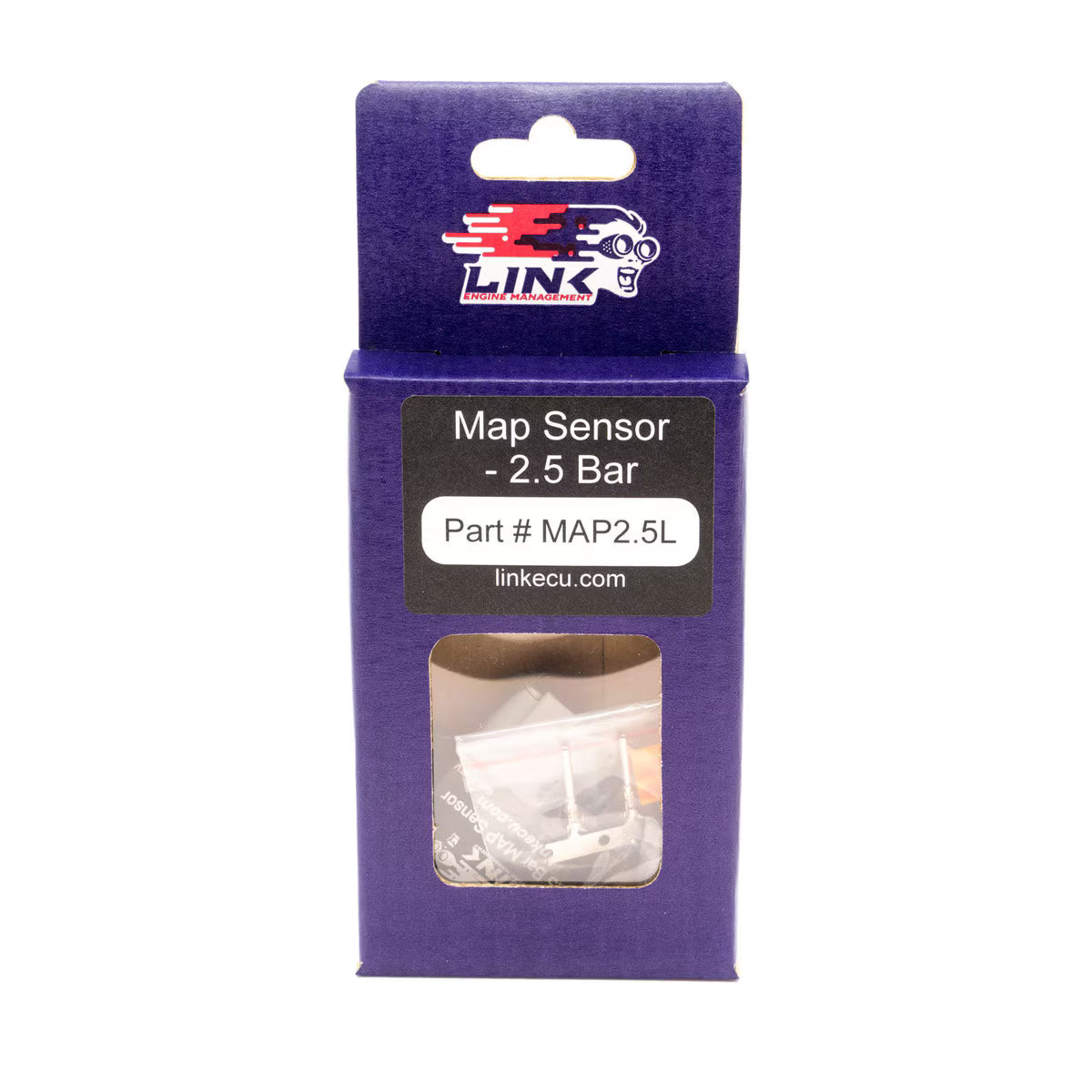

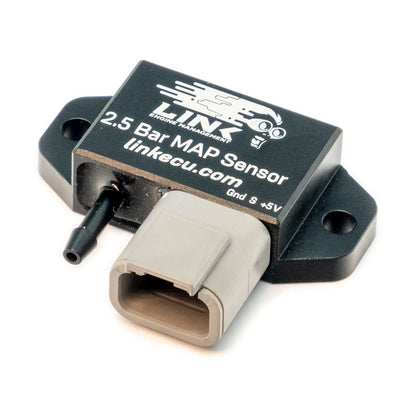

Link 2.5 Bar MAP Sensor (MAP2.5)

A 2.5 bar absolute MAP sensor designed for accurate intake pressure measurement on turbocharged and supercharged engines. Suitable for boost applications when used with Link ECUs.

What it’s used for

• Measuring manifold absolute pressure on boosted engines
• Supporting engine load calculation and fuel control
• Turbocharged or supercharged applications up to 1.5 bar boost

Compatibility

• Link G4 ECUs
• Link G4+ ECUs
• Link G4X ECUs
• PCLink software

Notes

• Reads up to 2.5 bar absolute pressure
• Suitable for boost pressures up to 1.5 bar (approximately 22 PSI)
• Sensor wiring pinout is marked on the housing
• Select sensor type as “Link 2.5 Bar” in PCLink
• Sensor should be mounted higher than the intake manifold port

Specifications

• 2.5 bar absolute pressure range
• Compact aluminium enclosure
• 4 mm (3/16”) hose connector nipple
• Easy mounting using two bolt holes

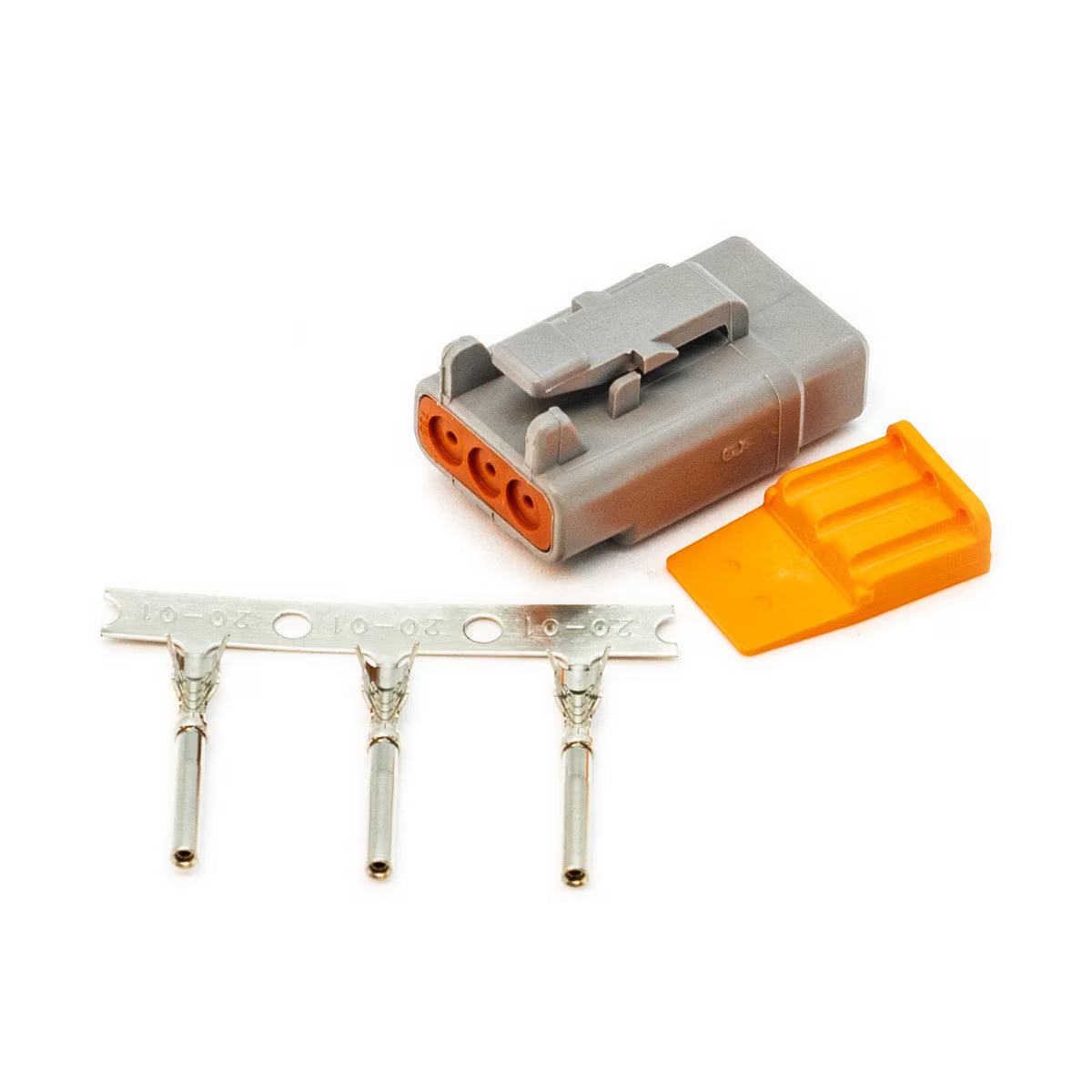

• Includes 3-pin Deutsch DTM connector kit
