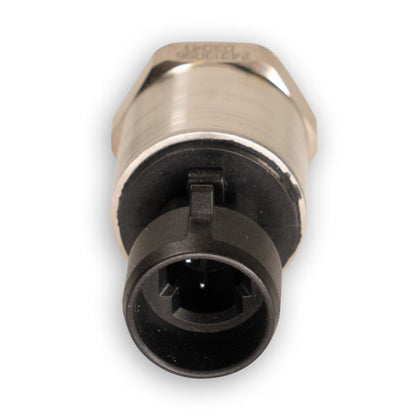

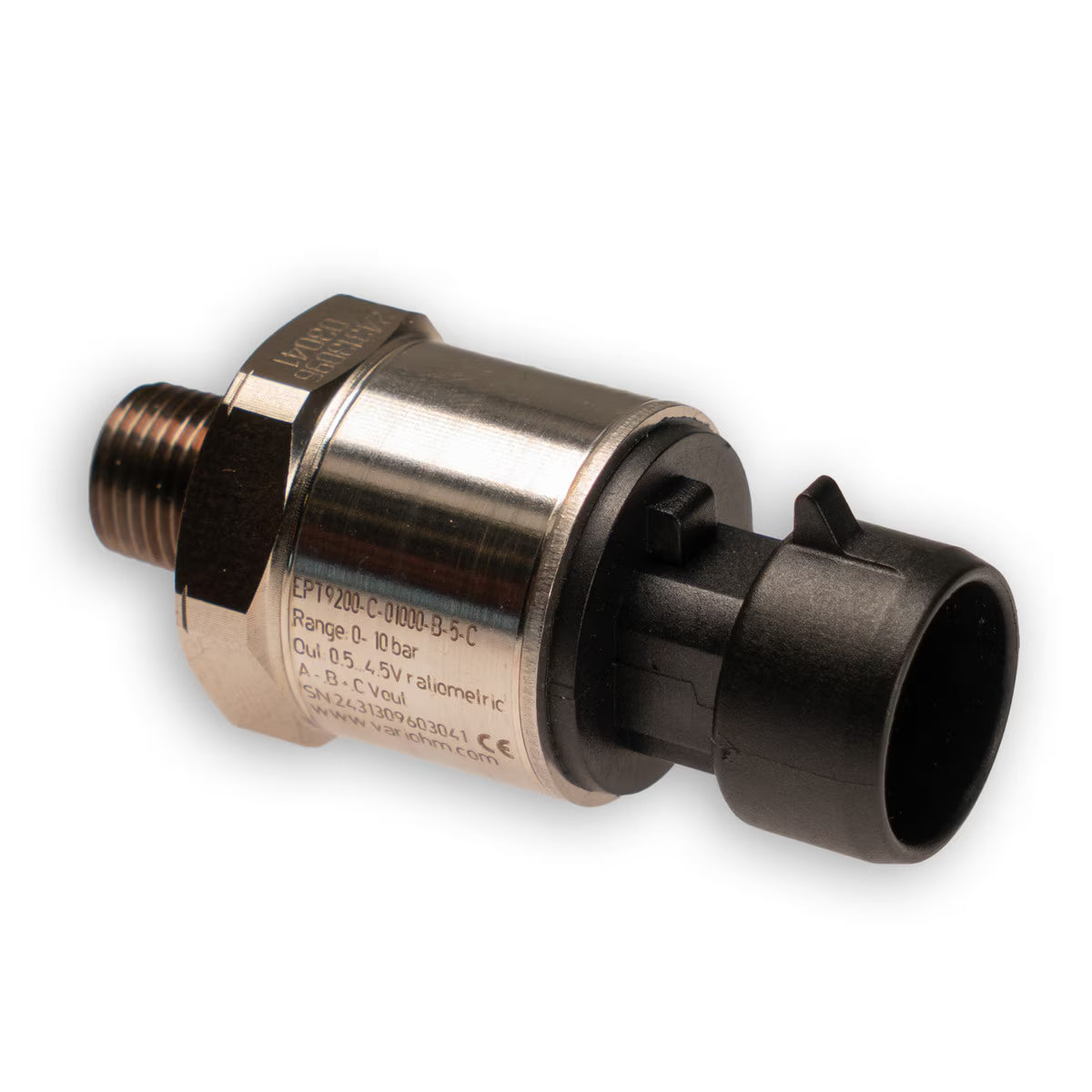

Link 10 Bar Pressure Sensor (PS150)

A 10 bar liquid pressure sensor designed for monitoring oil or fuel pressure. Features an updated enclosure and is suitable for use with Link ECUs.

What it’s used for

• Measuring oil pressure
• Measuring fuel pressure
• Monitoring liquid pressure systems

Compatibility

• Link G4 ECUs
• Link G4+ ECUs
• Link G4X ECUs
• PCLink software

Notes

• Measures pressure only and cannot be used to read vacuum
• Updated enclosure design (May 2025)
• Suitable for liquid pressure applications

Specifications

• Pressure range up to 10 bar (150 PSI)

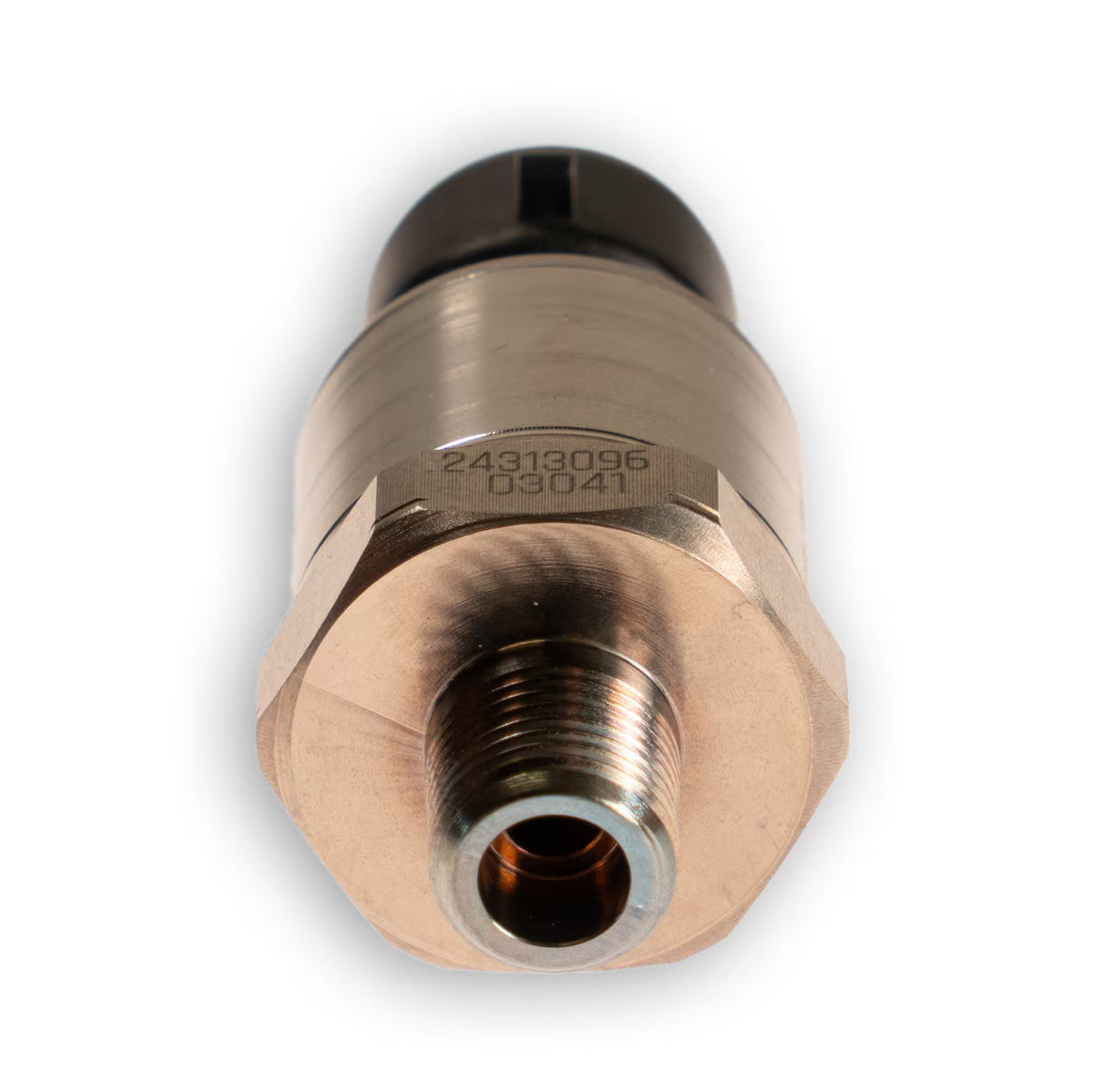

• 1/8” NPT thread
• Calibration: 0.5 V = 0 bar, 4.5 V = 10 bar
• Pin A: Ground
• Pin B: 5 V
• Pin C: Signal

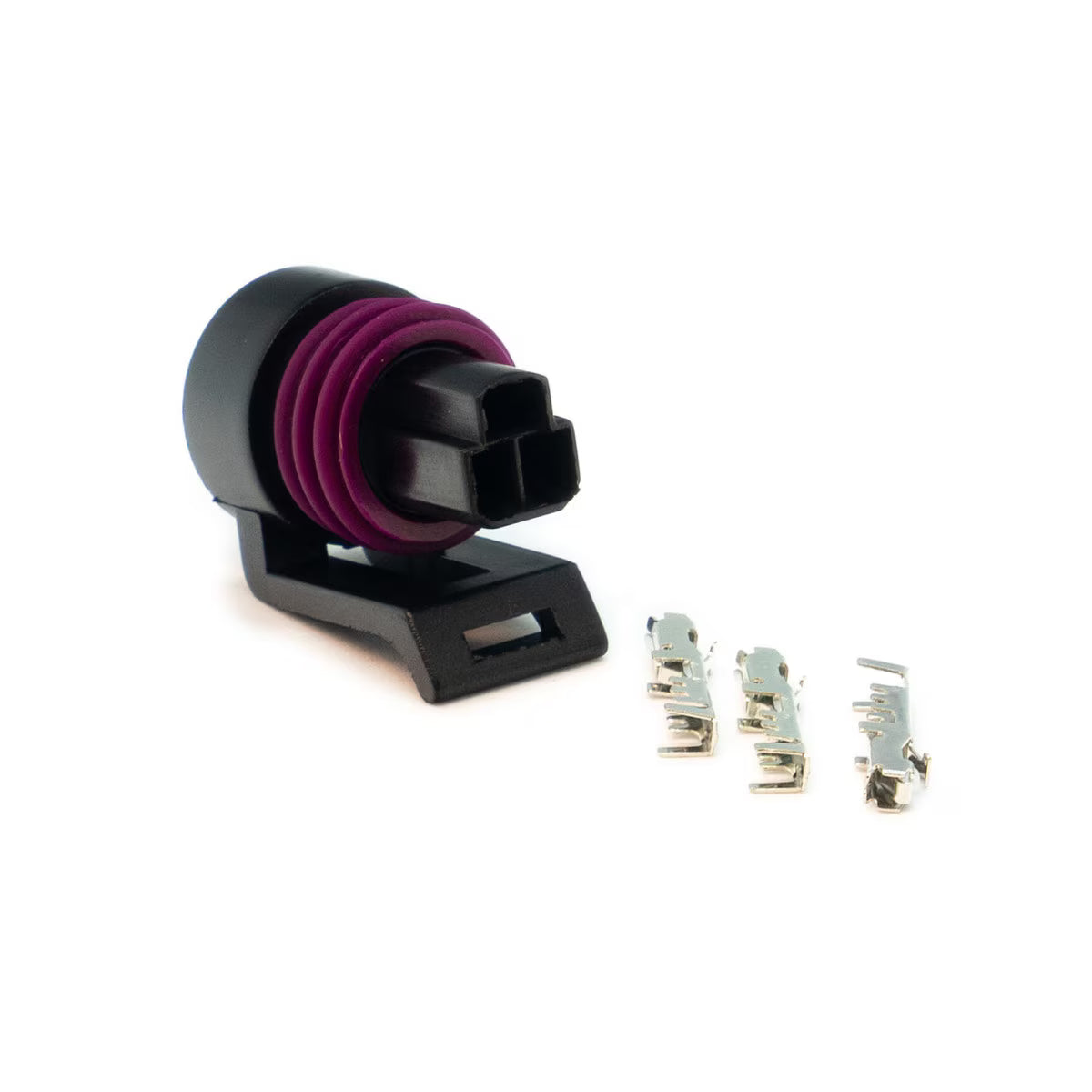

• Includes plug and pin kit
