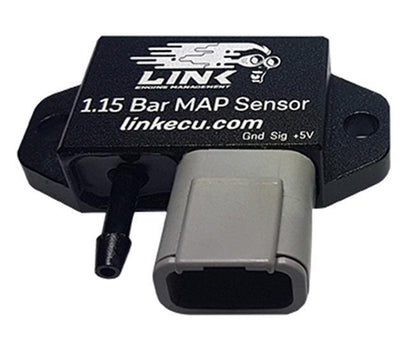

Link 1.15 Bar MAP Sensor (MAP1.15)

A 1.15 bar absolute MAP sensor designed for accurate intake pressure measurement on naturally aspirated engines. Suitable for low positive pressure applications when used with Link ECUs.

What it’s used for

• Measuring manifold absolute pressure on naturally aspirated engines
• Supporting engine load calculation and fuel control
• Low boost or ram-air pressure measurement

Compatibility

• Link G4 ECUs
• Link G4+ ECUs
• Link G4X ECUs
• PCLink software

Notes

• Reads up to 1.15 bar absolute pressure
• Suitable for up to 0.15 bar positive pressure (approximately 2 PSI)
• Sensor wiring pinout is marked on the housing
• Select sensor type as “Link 1.15 Bar” in PCLink
• Sensor should be mounted higher than the intake manifold port

Specifications

• 1.15 bar absolute pressure range
• High resolution output for naturally aspirated engines
• Compact aluminium enclosure
• 4 mm (3/16”) hose connector nipple
• Easy mounting using two bolt holes

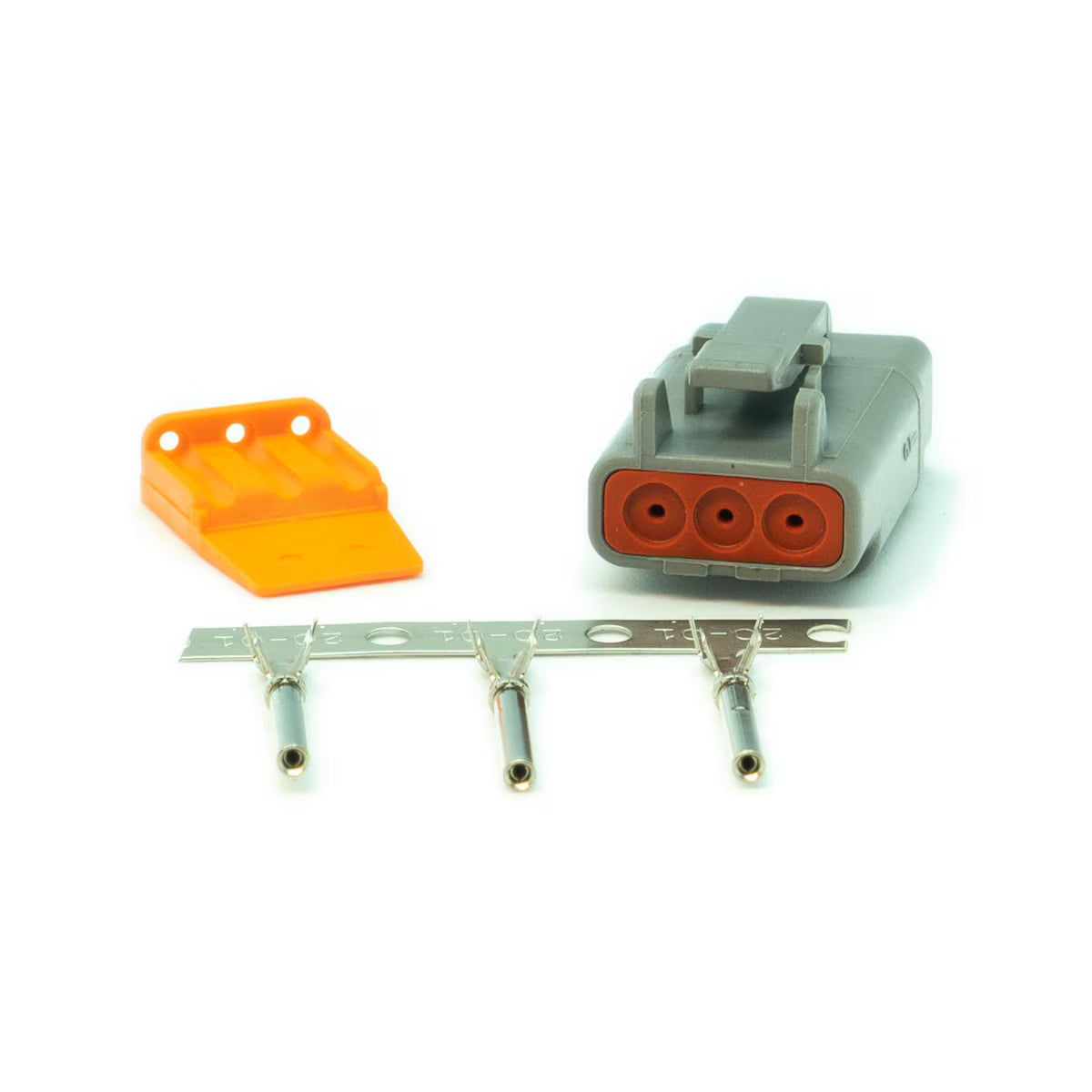

• Includes 3-pin Deutsch DTM connector kit
