CURRENTLY PRE ORDER!! CONTACT FOR ROUGH LEAD TIMES!
FastP.ART EZ Dash – 7 Inch CAN Digital Display

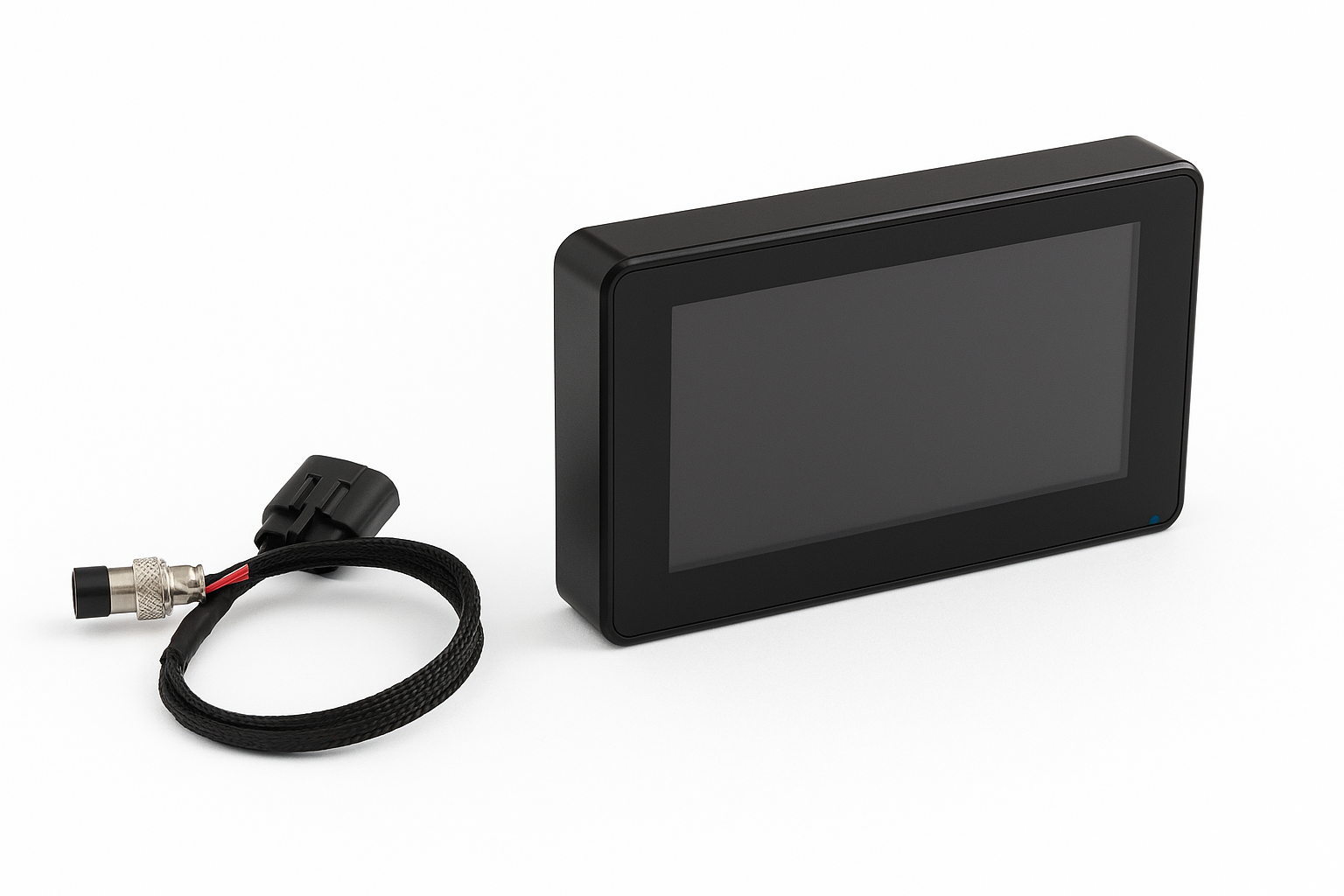

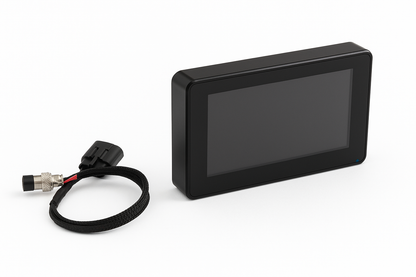

The FastP.ART EZ Dash is a compact and budget-friendly digital display built for performance engines and custom setups. Featuring a bright 800x480 screen inside a billet aluminium enclosure, it delivers clear and reliable data straight from your ECU over CAN.
Currently supports Link ECU’s Generic Dash2 CAN Stream. Will be more plug and play can streams in the future.

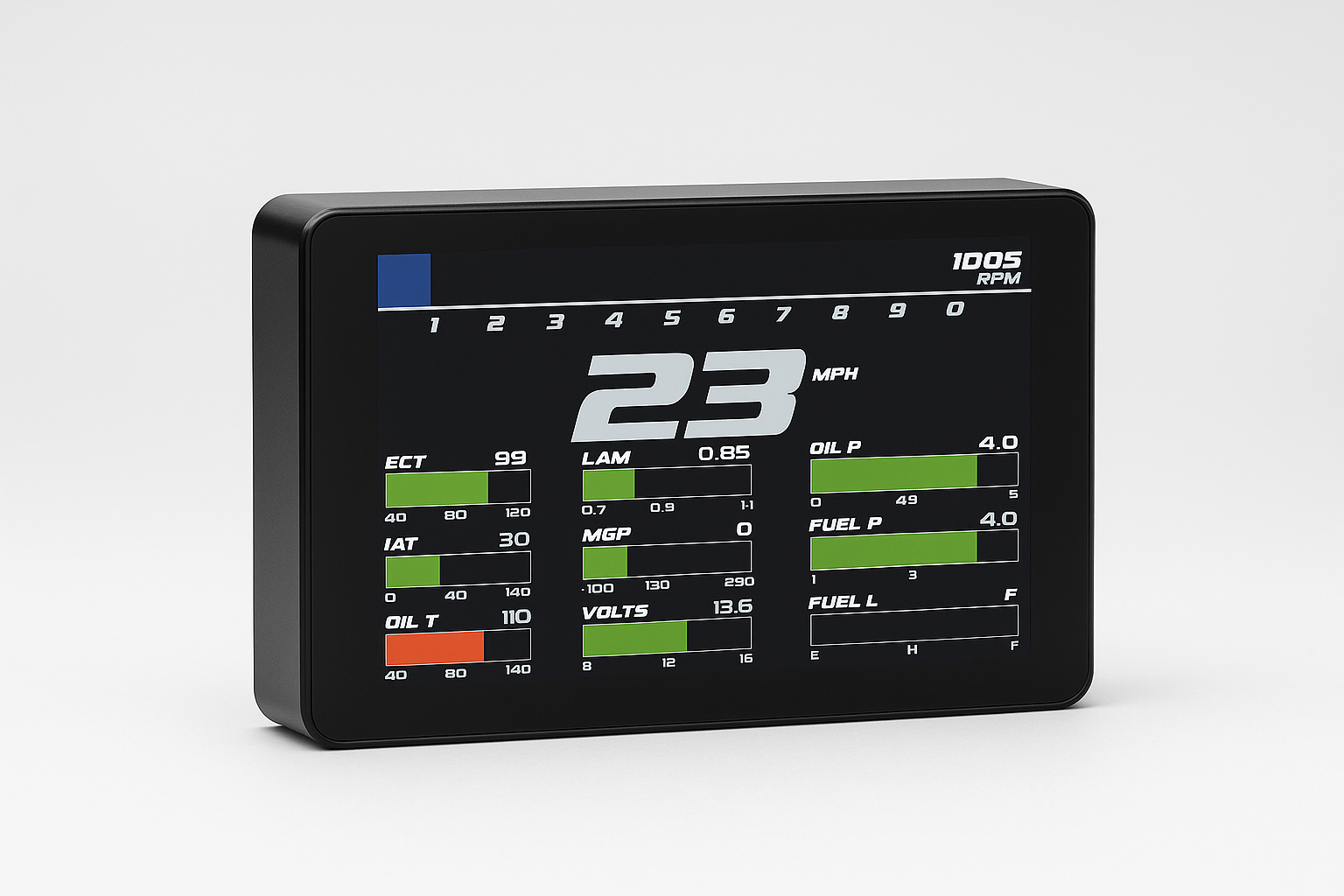

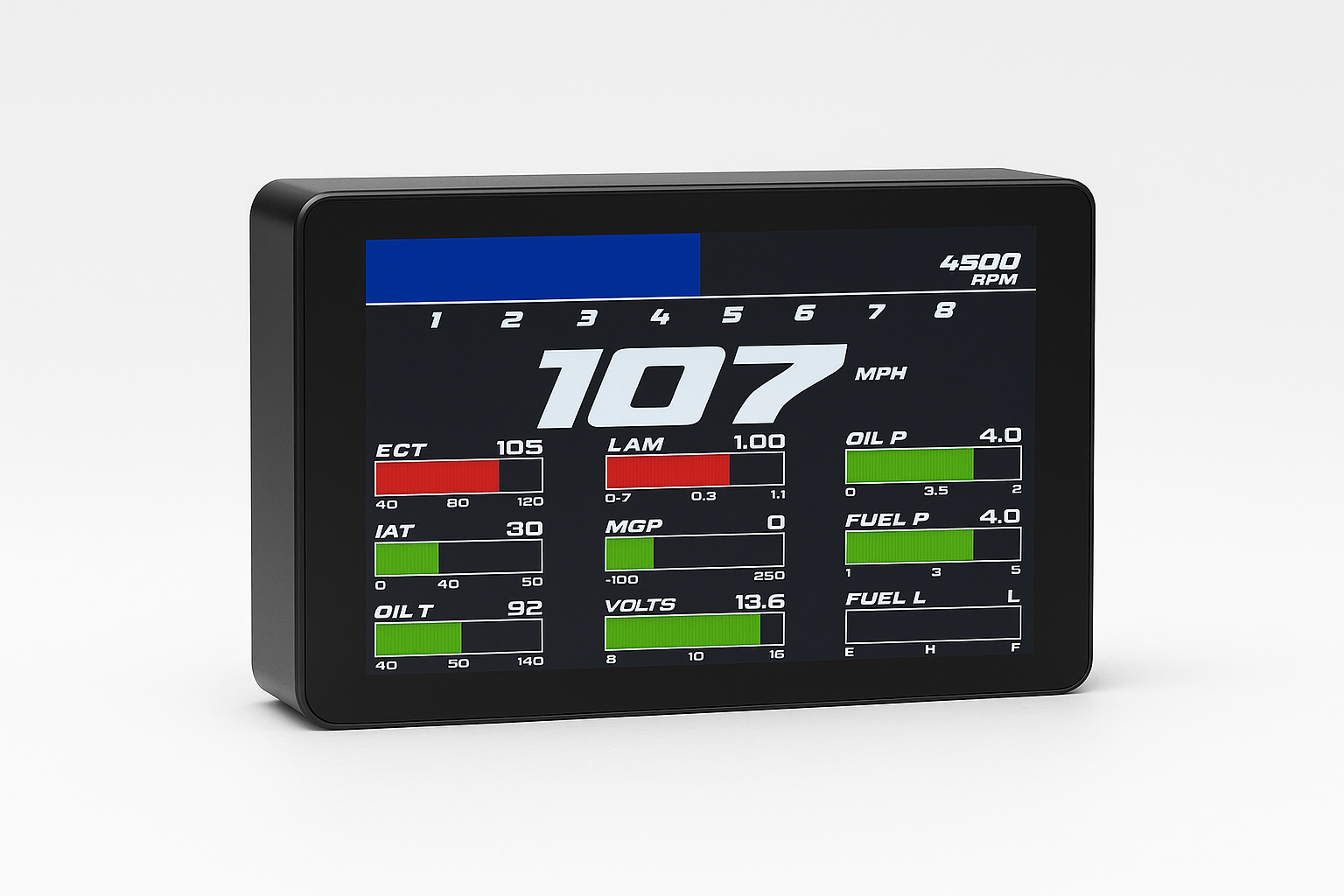

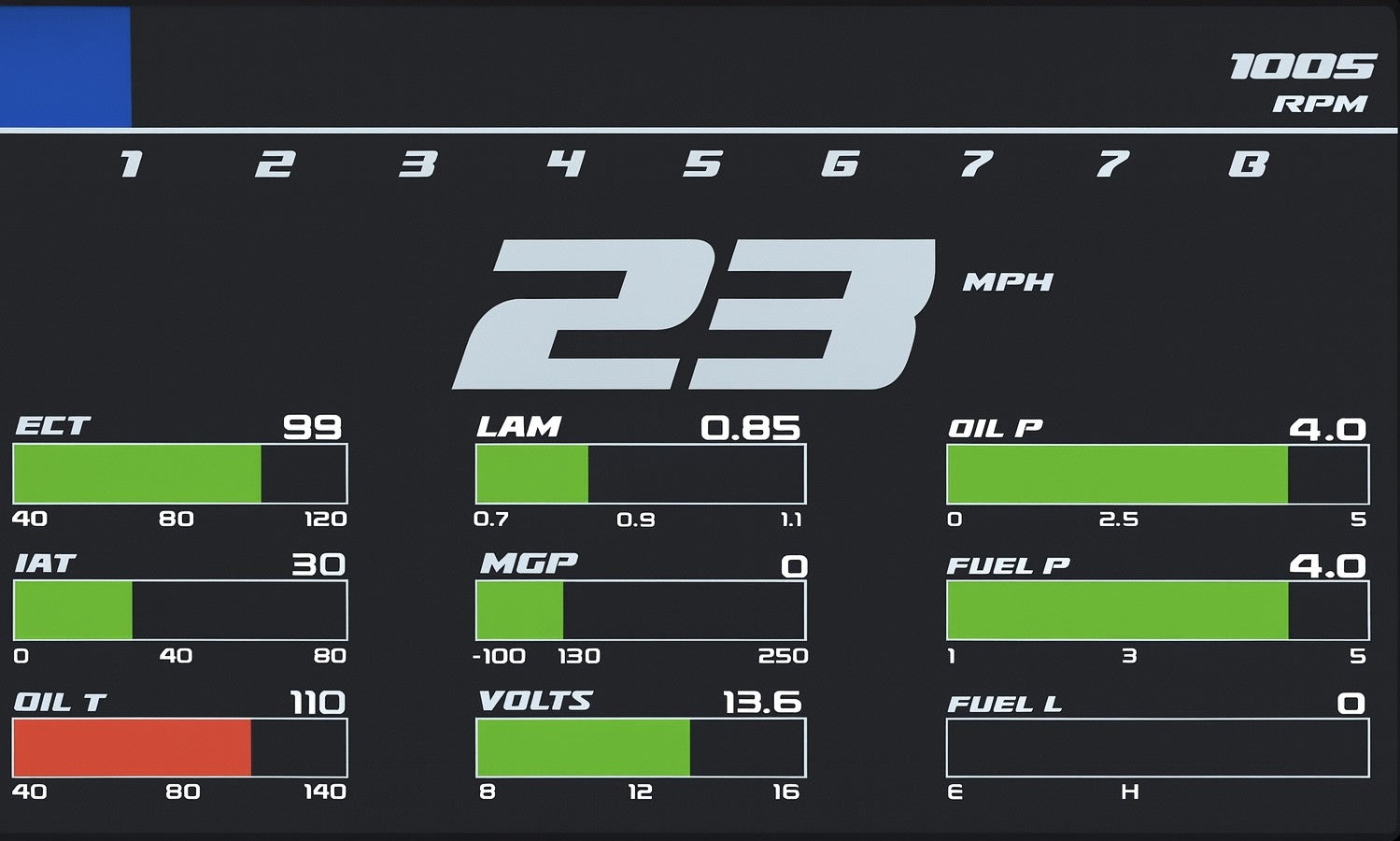

Key Display Parameters
RPM
Speed (MPH)
Engine Coolant Temperature
Inlet Air Temperature
Oil Temperature
Oil Pressure
Fuel Pressure
Lambda
MAP / MGP / TPS (switchable)
Battery Voltage
Features

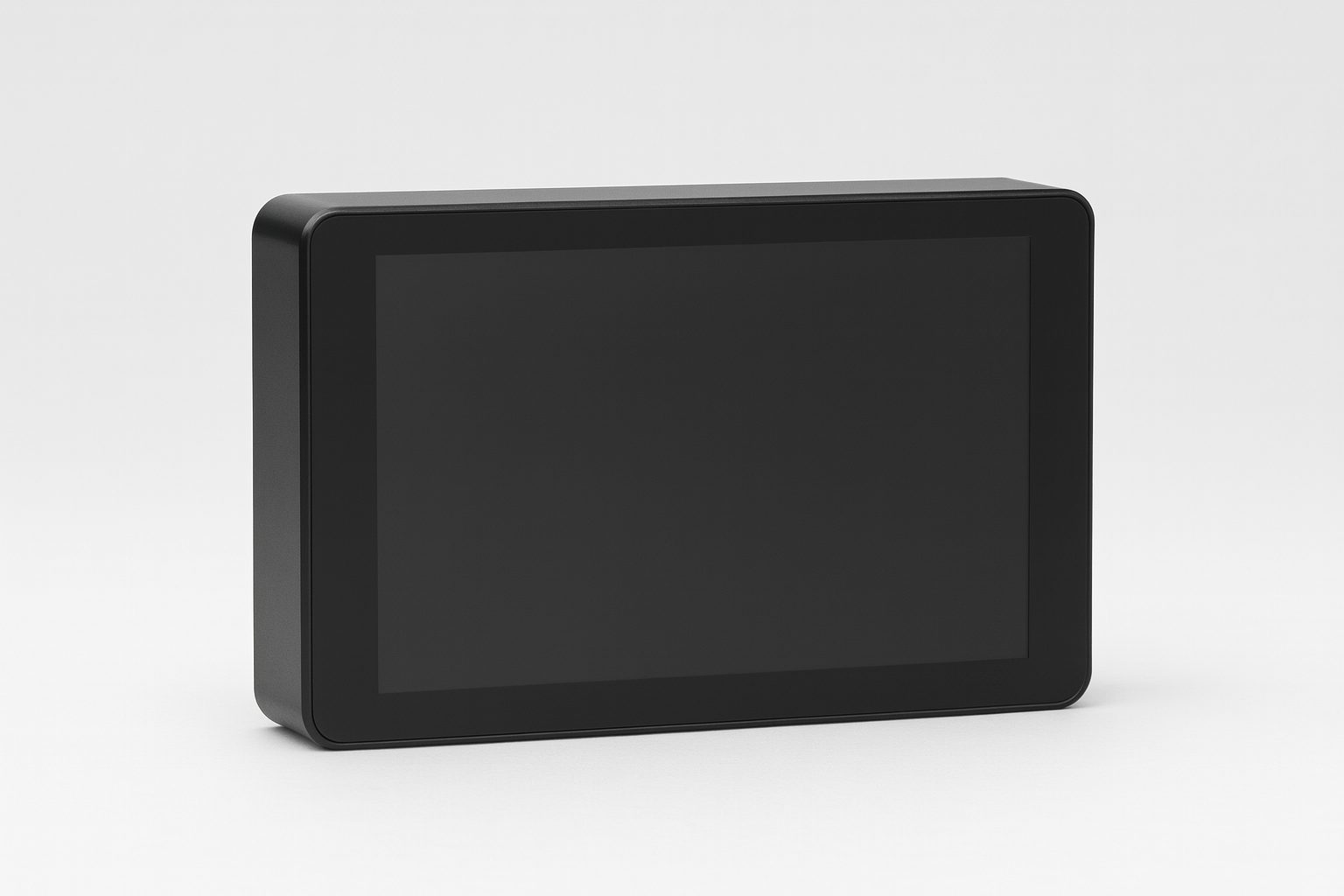

Bright 7-inch 800x480 LCD display

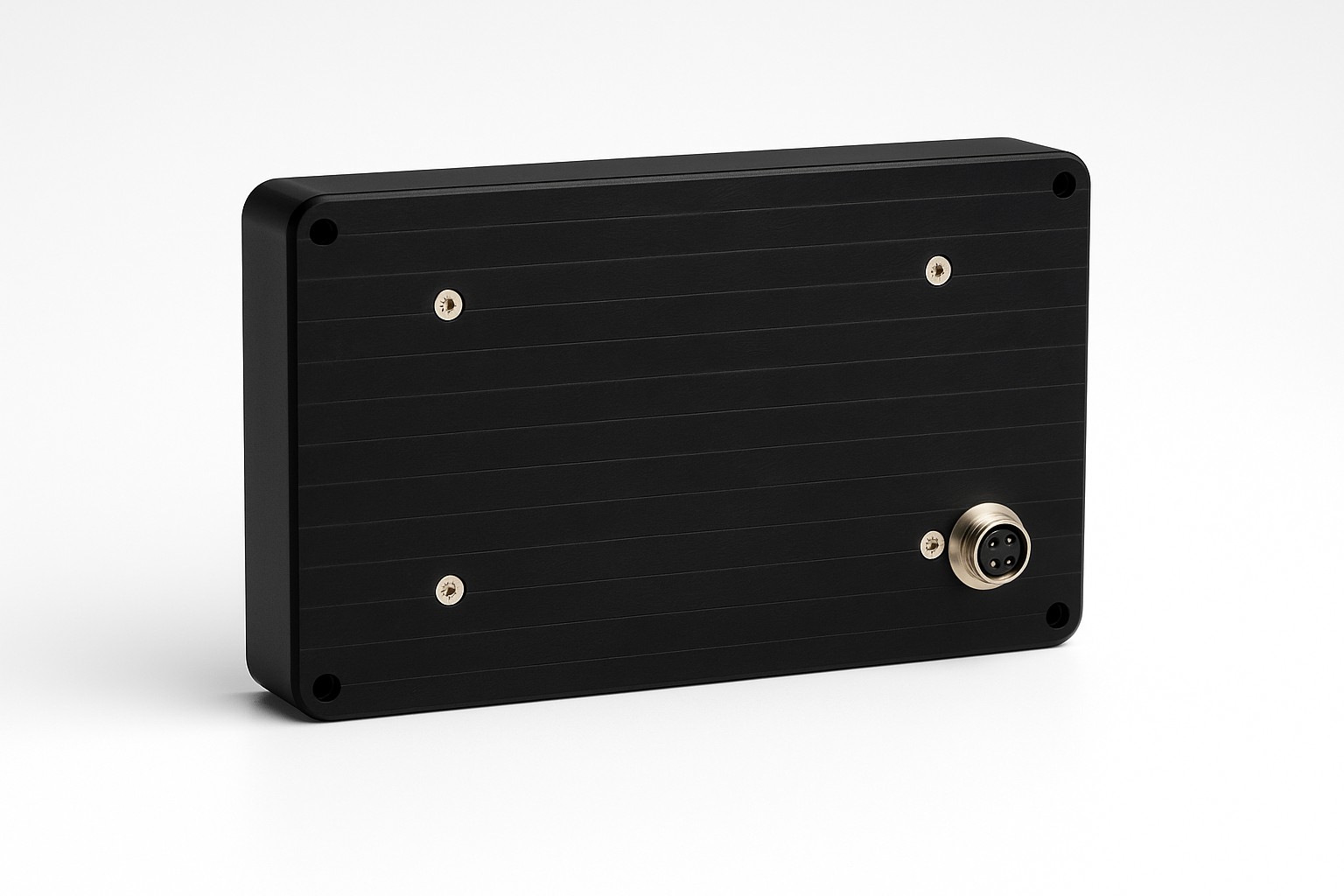

Billet aluminium housing for durability
CAN-based data stream for reliable communication
Currently supports Link ECU’s Generic Dash2 CAN Stream
Future updates will add configurable layouts and additional streams
Fuel level received via CAN (requires ECU or external CAN module)
Built-in 120Ω CAN termination
Designed for tuners and enthusiasts who want essential engine data at a glance, the EZ Dash combines simplicity, value, and a solid aluminium build. ideal for both street and motorsport applications.
