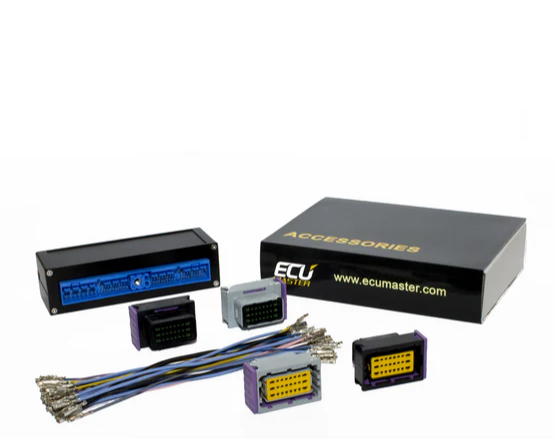

ECUMaster Nissan RB20 RB25 RB26 SR20 76 Pin Plug and Play Adaptor

This plug and play ECU adaptor is designed for Nissan RB20, RB25, RB26, and SR20 engine applications using the 76 pin factory ECU connector. It allows direct installation of an ECUMaster EMU Black or EMU Classic ECU without modification to the original wiring loom and can be supplied as an adaptor only or with an optional ECU selected at checkout.

Engine control capability

• Enables standalone engine management using ECUMaster EMU Black or EMU Classic ECUs
• Designed for Nissan RB and SR engine platforms with 76 pin factory ECU connectors
• Retains factory sensor and actuator wiring through the OEM harness
• Final engine control functionality depends on the selected ECU platform

Hardware and platform

• Vehicle specific Nissan 76 pin plug and play adaptor
• Optional ECUMaster EMU Black ECU
• Optional ECUMaster EMU Classic ECU
• No permanent modification to the factory wiring loom

Inputs and outputs

• Inputs and outputs are determined by the selected ECUMaster ECU platform
• Factory sensors and actuators are connected via the adaptor

Communications

• Communications depend on the selected ECUMaster ECU platform
• Compatible with factory Nissan systems where ECU functionality allows
• Supports factory MFD display on Nissan R34 GT-R models when supported by ECU configuration

Data logging

• Data logging functionality depends on the selected ECUMaster ECU platform

Software

• Uses ECUMaster tuning software corresponding to the selected ECU platform
• Software features depend on whether EMU Black or EMU Classic is selected

Notes

• Adaptor can be supplied on its own or with an optional ECU
• Customer must select EMU Black or EMU Classic ECU variant when ordering if required
• Lambda sensor and lambda loom are not included
• Compatibility is limited to Nissan ECUs using the 76 pin connector

Recommended applications

• Nissan RB20 engines with 76 pin ECU
• Nissan RB25 engines with 76 pin ECU
• Nissan RB26 engines with 76 pin ECU
• Nissan SR20 engines with 76 pin ECU

What’s included

• Nissan RB and SR 76 pin plug and play adaptor
• Optional ECUMaster EMU Black ECU if selected
• Optional ECUMaster EMU Classic ECU if selected
