ECUMaster EMU PRO-16 Lotus V6 2GR-FE Plug and Play ECU Kit

This plug and play ECU kit is designed for Lotus V6 (2GR-FE) engine applications and is compatible with Lotus Evora and Exige models. The kit is based on the ECUMaster EMU PRO-16 motorsport ECU and can be supplied as an adaptor-only solution or as a complete kit including ECU, sensors, and looms.

Engine control capability

• Standalone engine management based on the ECUMaster EMU PRO-16 platform
• Designed for Lotus V6 2GR-FE engine applications
• Supports advanced motorsport strategies including traction control and pit limiter
• Rev match auto blip function for H pattern gearboxes
• Sequential gearbox and paddle shift control supported
• Final functionality depends on configuration and vehicle specification

Hardware and platform

• ECUMaster EMU PRO-16 motorsport ECU

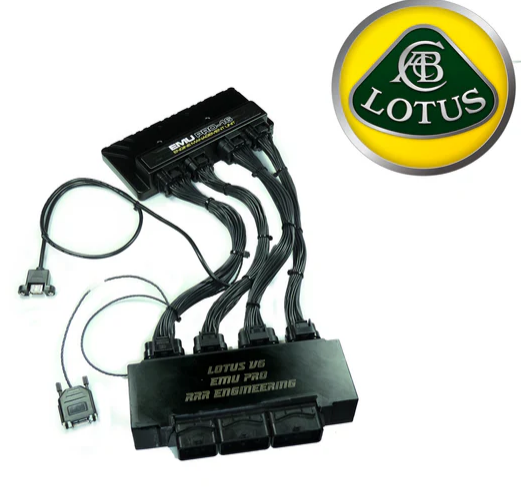

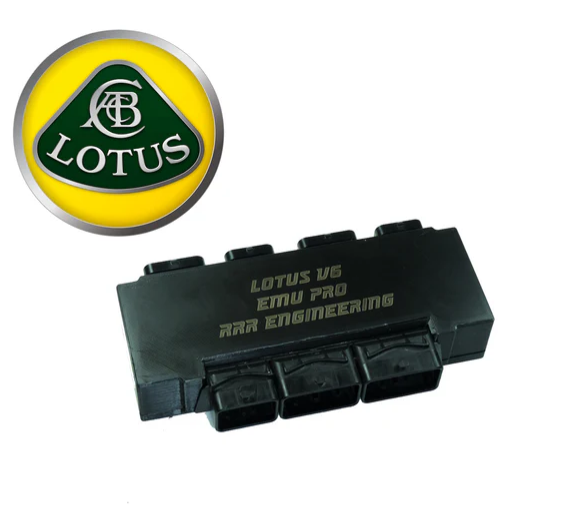

• Vehicle specific Lotus V6 plug and play adaptor
• Adjustable configuration jumpers to suit different vehicle variants
• Dual internal wideband controllers supporting Bosch LSU 4.9 sensors
• Supports OEM TPMS operation on Lotus Evora
• IP65 CNC machined aluminium ECU enclosure

Inputs and outputs

• Total of 46 outputs and 30 inputs
• 2 internal LSU 4.9 wideband controllers with support for up to 4 sensors
• 8 EGT inputs or high precision analogue inputs
• 2 knock sensor inputs
• Up to 4 VVT channels with auto calibration
• 2 drive by wire throttle supports with auto calibration

Communications

• Dual CAN 2.0A/B communication
• LIN bus support
• Logging to external USB memory device
• USB to CAN communication tool required for tuning

Data logging

• High speed data logging up to 500 Hz
• Logging to external USB memory
• On line parameter analysis displayed directly on log graphs

Software

• Advanced ECUMaster EMU PRO software
• User configurable table sizes up to 32 x 32
• Flexible custom functions, numbers, CAN inputs, and CAN outputs
• Advanced closed loop fuelling with short and long term trims
• Free firmware updates supported by ECUMaster

Notes

• Supports MAF or speed density strategies
• Flex fuel E85 support available
• Water meth injection and boost control supported
• IPS gearbox versions currently under testing
• USB to CAN communication tool required if not already owned

Recommended applications

• Lotus Evora V6 (2GR-FE)
• Lotus Exige V6 (2GR-FE)
• Track, race, and high performance road applications

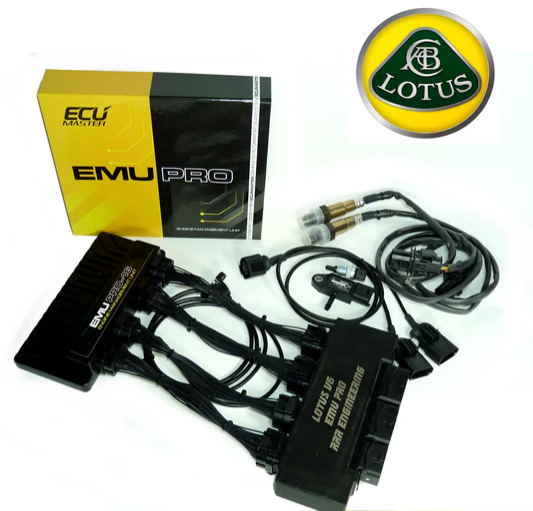

What’s included (Full Kit)

• ECUMaster EMU PRO-16 ECU
• Lotus V6 vehicle specific adaptor
• 2 x Lambda sensor link looms
• MAF to MAP and intake air temperature sensor loom
• Bosch MAP sensor
• Intake air temperature sensor
• 2 x Bosch LSU 4.9 wideband lambda sensors
• USB memory device for data logging
