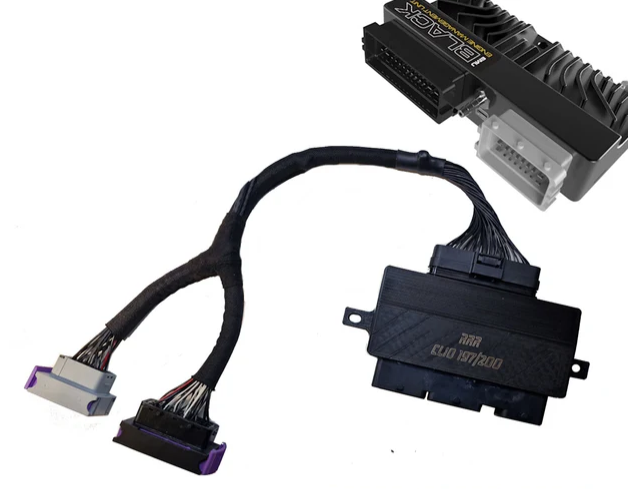

ECUMaster EMU Black Renault Clio 197 200 Plug and Play ECU Kit

£499.00

Sale Sold out

ECU Included No - Adaptor Only Yes - ECUMaster Black ECU and Adaptor

This plug and play ECU kit is designed for Renault Clio 197 and 200 engine applications. It is based on the ECUMaster EMU Black platform and can be supplied as an adaptor only or as a complete kit including an optional ECUMaster EMU Black ECU, providing standalone engine management while retaining key factory vehicle functions.

Engine control capability

Standalone engine management based on the ECUMaster EMU Black platform
Designed specifically for Renault Clio 197 and Clio 200 engine applications
Retains factory vehicle functions where supported by the original system
Final functionality depends on vehicle specification and configuration

Hardware and platform

Optional ECUMaster EMU Black standalone ECU

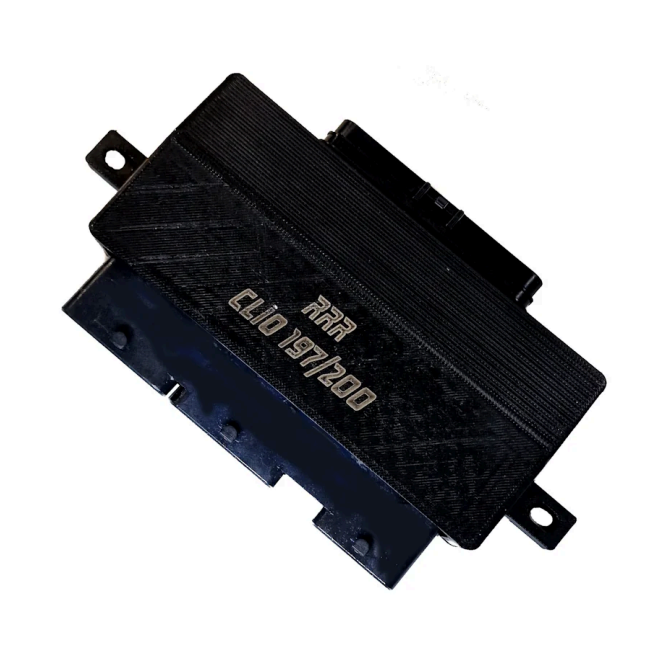

Vehicle specific Renault Clio 197/200 plug and play adaptor
Uses original ECU connectors sourced from a supplied used ECU
No permanent modification to the factory wiring loom

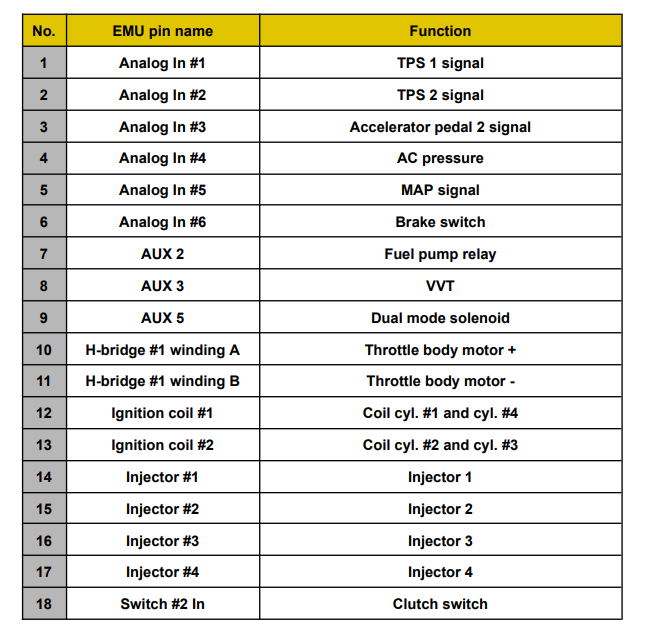

Inputs and outputs

Inputs and outputs provided by the ECUMaster EMU Black ECU when fitted
Factory sensors and actuators connected via the plug and play adaptor

Communications

USB connection for tuning and configuration
CAN communication supported where configured

Data logging

Internal ECU data logging supported
Logging functionality depends on ECU configuration

Software

ECUMaster EMU Black tuning software
User configurable engine control strategies
Free firmware updates supported by ECUMaster

Notes

Adaptor can be supplied on its own or with an optional ECUMaster EMU Black ECU
A used original ECU is required for connector supply and is optional, contact for details
If a used ECU is not provided, a refundable surcharge may apply
Lambda sensor is not included
Lambda sensor connection uses a DTM 6 way connector
Correct lambda link loom must be selected based on the lambda sensor used
