ECUMaster EMU Black Lotus Elise S2 2ZZ Cable Throttle Plug and Play ECU Kit

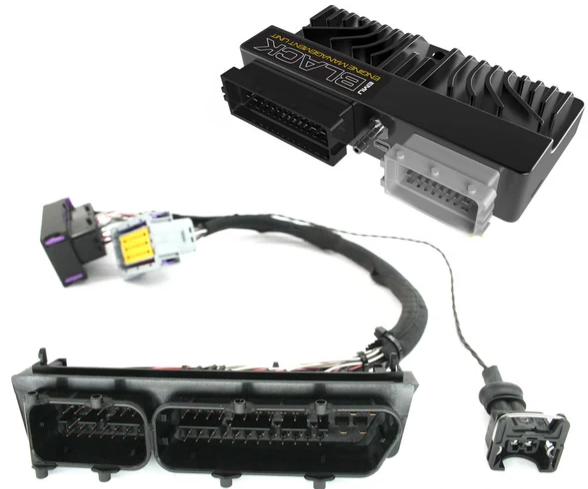

This plug and play ECU kit is designed for Lotus Elise S2 applications fitted with the 2ZZ engine and cable throttle. The kit uses the ECUMaster EMU Black standalone ECU and allows installation without modification to the factory wiring loom.

Engine control capability

• Standalone engine management based on the ECUMaster EMU Black platform
• Designed for Lotus S2 2ZZ engines with cable throttle
• Controls fuel, ignition, and auxiliary engine systems
• Supports closed loop fuel control using a wideband lambda sensor
• Final functionality depends on ECU configuration and vehicle specification

Hardware and platform

• ECUMaster EMU Black wire-in ECU
• Lotus S2 2ZZ plug and play adaptor
• Additional intake air temperature sensor connector
• Allows removal of factory MAF sensor
• No permanent modification to the original wiring loom

Inputs and outputs

• Factory sensors and actuators connected via adaptor
• Wideband lambda support for Bosch LSU 4.9 sensor
• IAT sensor input available (sensor sold separately)
• Input and output availability depends on ECU configuration

Communications

• USB connection for configuration and tuning
• CAN bus support via EMU Black platform

Data logging

• Internal ECU data logging supported by the EMU Black platform
• Logging capability dependent on ECU configuration and software setup

Software

• Configured using ECUMaster EMU Black software
• Free firmware updates supported by ECUMaster

Notes

• Designed for cable throttle applications only
• Lambda to ECU link loom required and available separately
• Compatible with Bosch LSU 4.9 wideband lambda sensor

Recommended applications

• Lotus Elise S2 fitted with 2ZZ engine and cable throttle
• Road, track, and motorsport applications

What’s included

• ECUMaster EMU Black wire-in ECU
• Lotus S2 2ZZ plug and play adaptor
• Base start map supplied
