ECUMaster EMU Black Honda K20A2 Plug and Play ECU Kit

This plug and play ECU kit is designed for Honda K20A2 engine applications with manual transmission and allows direct installation of the ECUMaster EMU Black standalone ECU. The kit can be supplied as an adaptor-only solution or as a complete kit including the EMU Black ECU.

Engine control capability

• Standalone engine management based on the ECUMaster EMU Black platform
• Designed for Honda K20A2 engines with manual transmission
• Controls fuel, ignition, and auxiliary engine systems
• Enables advanced motorsport functions for race and rally use
• Final functionality depends on ECU configuration and vehicle specification

Hardware and platform

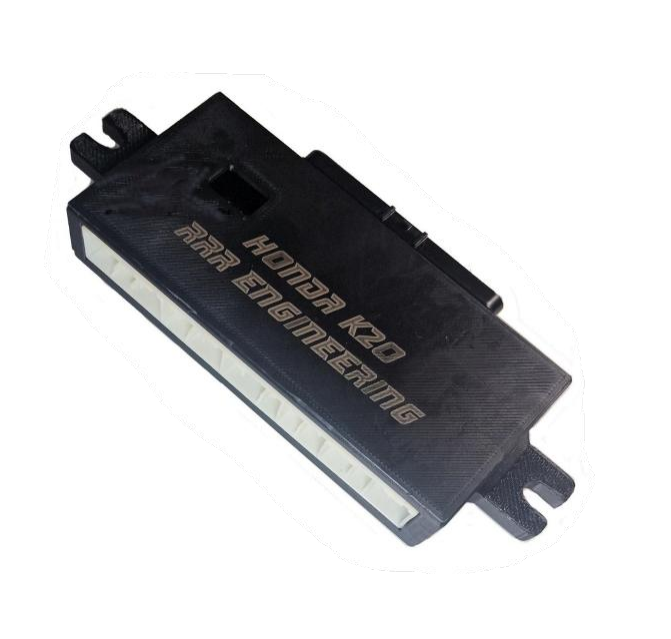

• Honda K20A2 plug and play adaptor
• Optional ECUMaster EMU Black wire-in ECU
• Pre-wired 6 way DTM lambda connector on adaptor
• Supports OEM multiplex via CAN to multiplex board
• Maintains correct operation of factory gauges
• Reverse lock support integrated
• No permanent modification to the original wiring loom

Inputs and outputs

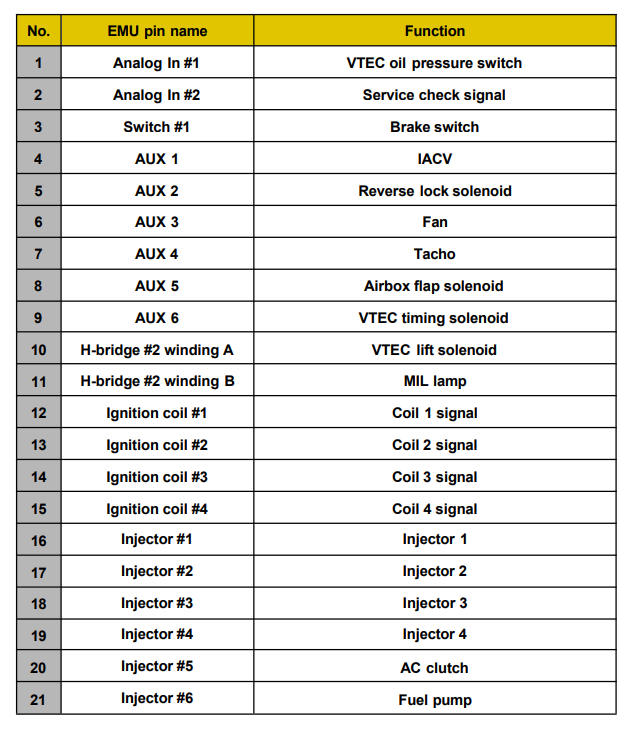

• Factory sensors and actuators connected via adaptor
• Wideband lambda connection via 6 way DTM interface
• Provision for additional sensors on request
• Input and output availability depends on ECU configuration

Communications

• USB connection for configuration and tuning via EMU Black ECU
• CAN bus support via EMU Black platform

Data logging

• Internal ECU data logging supported by the EMU Black platform
• Logging capability dependent on ECU configuration and software setup

Software

• Configured using ECUMaster EMU Black software
• Free firmware updates supported by ECUMaster

Notes

• Manual transmission only
• Adaptor-only option includes adaptor component only
• Lambda to DTM link loom is required and available separately
• OEM air conditioning request support is under development

Recommended applications

• Honda vehicles fitted with K20A2 engines and manual transmission
• Race and rally applications

What’s included

• Honda K20A2 plug and play adaptor
• Optional ECUMaster EMU Black wire-in ECU
• Lambda link loom included when full kit is selected
• Base start map supplied when ECU option is selected
