ECUMaster EMU Black Ford Fiesta ST150 Plug and Play ECU Kit (V2)

£499.00

Sale Sold out

ECU Included No Yes

Supplying Stock ECU No Yes

This plug and play ECU kit is designed for Ford Fiesta ST150 applications and combines an updated vehicle-specific adaptor with the ECUMaster EMU Black ECU. The revised design allows direct integration with the OEM ECU via a link loom, enabling installation without permanent modification to the factory wiring.

Engine control capability

Standalone engine management based on the ECUMaster EMU Black platform
Designed for Ford Fiesta ST150 engine applications
Supports advanced motorsport functions including traction control and launch control
Boost control support for turbocharged conversions
Knock control and engine protection strategies
Final functionality depends on configuration and vehicle specification

Hardware and platform

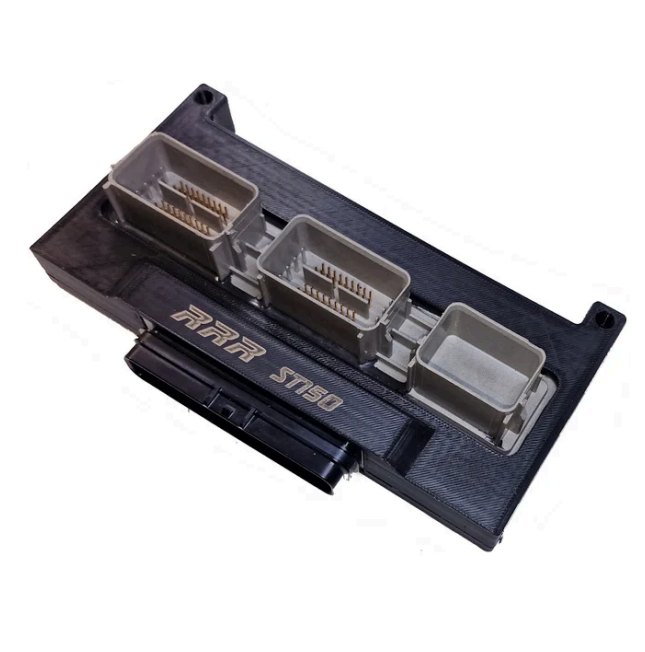

Ford Fiesta ST150 plug and play adaptor V2
Optional ECUMaster EMU Black wire-in ECU
Integration with OEM ECU via dedicated link loom
6 way DT wideband lambda connector on adaptor
No permanent modification to the original wiring loom

Inputs and outputs

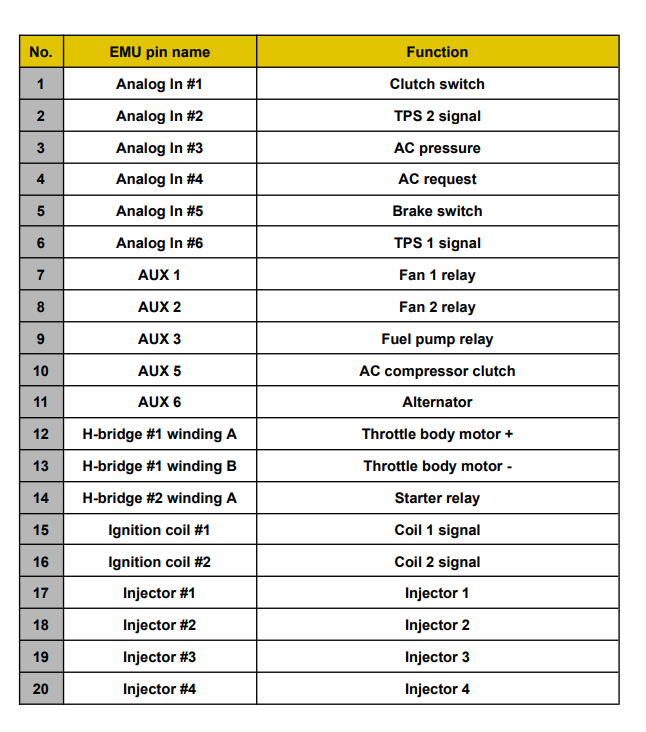

Factory sensors and actuators connected via adaptor and link loom
Wideband lambda connection via 6 way DT connector
Input and output availability depends on ECU configuration

Communications

USB connection for configuration and tuning via EMU Black ECU
CAN bus support via EMU Black platform

Data logging

Internal ECU data logging supported by the EMU Black platform
Logging capability dependent on ECU configuration and software setup

Software

Configured using ECUMaster EMU Black software
Free firmware updates supported by ECUMaster

Notes

Stock ECU must be supplied unless the option "no stock ECU supplied" is selected
Lambda link loom is required and selectable based on the lambda sensor being used
Adaptor is made to order, delivery may take up to 5 working days
Two throttle body types exist: Hall effect and resistive
Resistive throttle bodies require a simple pin change on the throttle body
