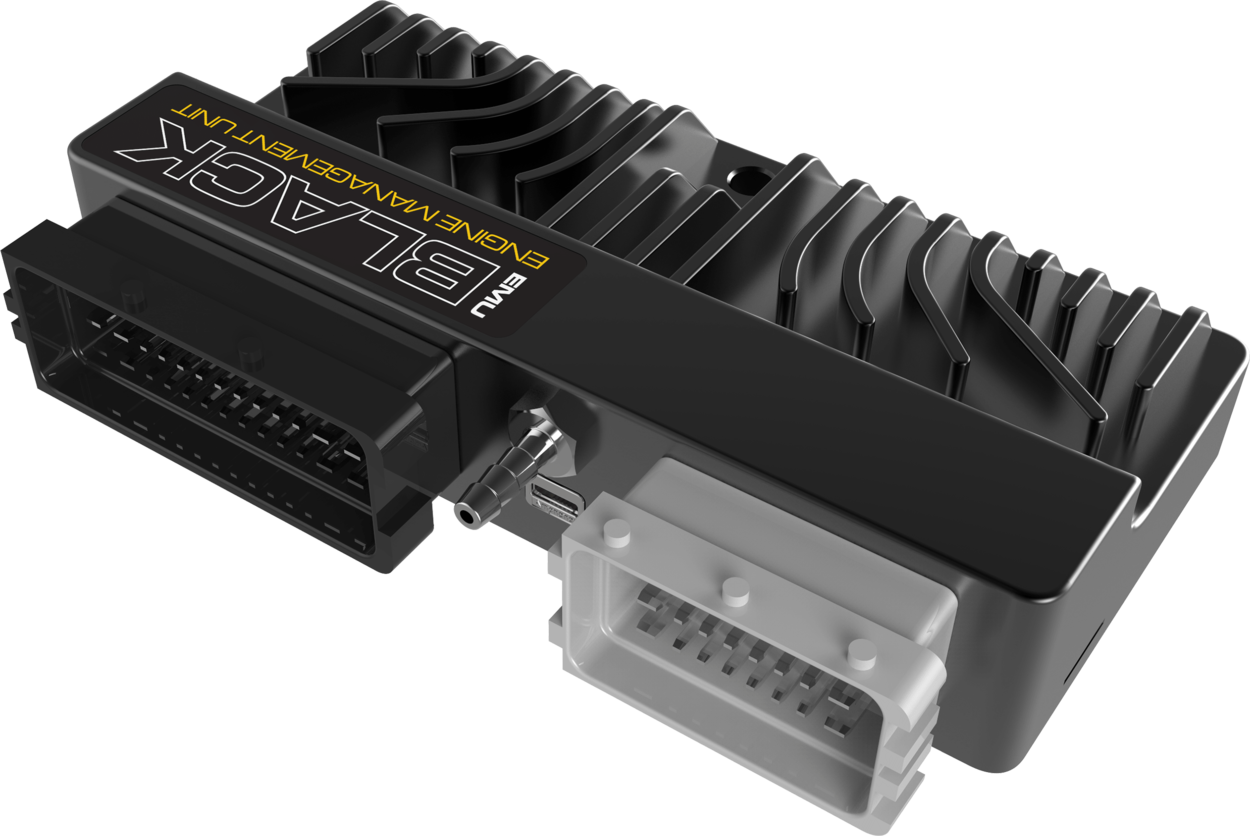

ECUMaster EMU Black Engine Management System

The EMU Black is a class-leading, stand-alone engine management system designed to operate even the most advanced and complex engines. As the successor to the proven EMU, it incorporates years of data and feedback to deliver significant improvements in hardware, software, and reliability. Suitable for race cars, street builds, motorcycles, boats, and stationary engines, the EMU Black offers unrivalled versatility.

With the ability to control fueling, ignition, and auxiliary systems on 1–12 cylinder engines — including drive-by-wire and VVT — the EMU Black is built for both performance and safety. It directly drives up to 6 passive or 12 smart coils without external modules, supports sophisticated drive-by-wire strategies, and features advanced fault detection for critical engine protection.

Key Features

• Supports 1–12 cylinder engines with drive-by-wire and VVT
• Direct control of up to 6 passive or 12 smart coils
• Built-in wideband lambda controller (Bosch LSU 4.2 / LSU 4.9)
• Onboard 4-bar MAP sensor
• Dual EGT inputs (K-Type thermocouples)
• Direct Flex Fuel sensor input
• Multiple motorsport strategies: launch control, traction control, anti-lag, rolling ALS
• Real-time logging and built-in trigger scope
• Rugged CNC-machined aluminium enclosure (IP60)

Technical Specifications

• Operating voltage: 6–22V (ISO 7637 transient immunity)
• Temperature range: –40°C to +105°C
• Injector outputs: 6 × 5A low-side
• Ignition outputs: 6 × 7A (15A peak), passive & active coils
• Aux outputs: 6 × 5A low-side
• Stepper/H-Bridge outputs: Full bridge up to 7A
• Analog inputs: 9 × 0–5V (10-bit)
• EGT inputs: 2 × K-Type thermocouple
• Knock sensor inputs: 2 channels, 1–20kHz
• Communications: USB, serial, CAN
• Dimensions: 150 × 72 × 31 mm
• Weight: 390g

Best Suited For

• Track, drift, rally, and time-attack builds
• Engine swaps with advanced control needs
• High-performance street cars with custom tuning

Professional installation and calibration are recommended for optimal performance and reliability.
