ECUMaster EMU Black BMW M52 Single Vanos Plug and Play ECU Kit

This plug and play ECU kit is designed specifically for BMW M52 Single Vanos engine applications and is intended for use with the ECUMaster EMU Black ECU only. The kit can be supplied as an adaptor-only solution or as a complete kit including the EMU Black ECU. Installation is fully plug and play using the factory engine wiring loom, with no modification required.

Engine control capability

• Standalone engine management based on the ECUMaster EMU Black platform
• Designed exclusively for BMW M52 Single Vanos engine applications
• Controls fuel, ignition, and auxiliary engine systems
• Final functionality depends on configuration and vehicle specification

Hardware and platform

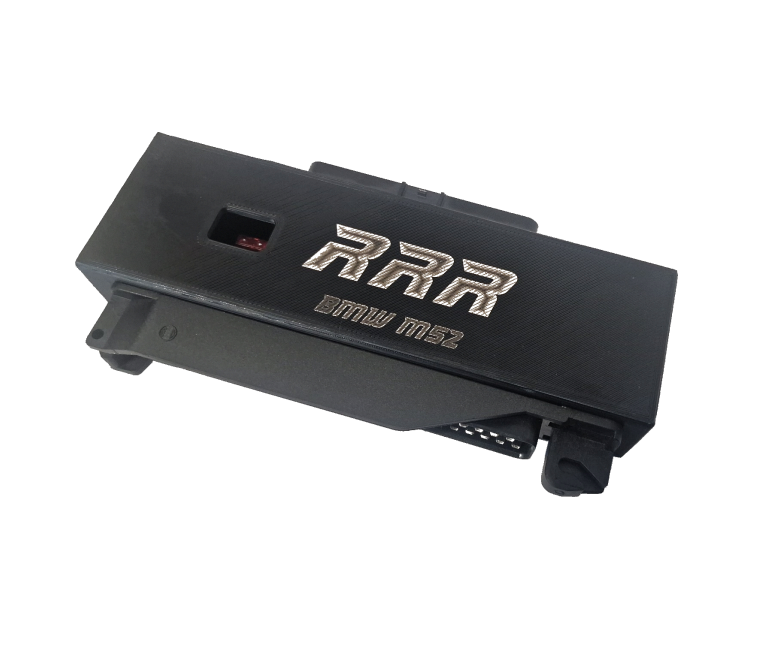

• BMW M52 Single Vanos plug and play adaptor harness
• Optional ECUMaster EMU Black wire-in ECU
• Designed to connect directly to the factory engine loom
• Integrated lead for Bosch LSU wideband sensor
• Built-in fuse for wideband sensor protection
• No permanent modification to the original wiring loom

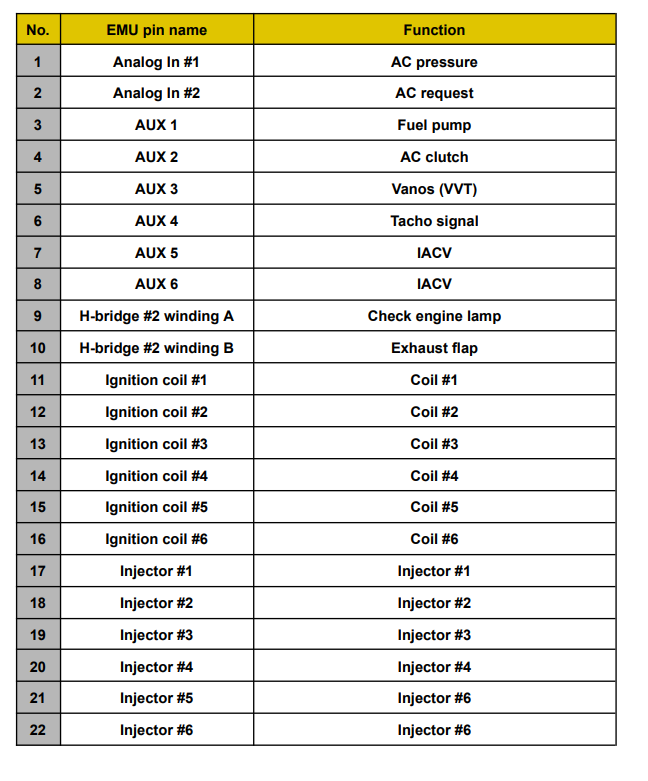

Inputs and outputs

• Factory sensors and actuators connected via adaptor harness
• Wideband lambda connection via integrated lead
• Input and output availability depends on EMU Black configuration

Communications

• USB connection for configuration and tuning via EMU Black ECU
• CAN bus support via EMU Black platform

Data logging

• Internal ECU data logging supported by the EMU Black platform
• Logging capability dependent on ECU configuration and software setup

Software

• Configured using ECUMaster EMU Black software
• Free firmware updates supported by ECUMaster

Notes

• Available as adaptor-only or complete ECU kit
• Designed exclusively for use with ECUMaster EMU Black ECU
• For EMU Black wideband input, Bosch LSU 4.2 or 4.9 sensors are supported
• Lambda to DTM lead required depending on ECU configuration
• Requires Hall effect cam position sensor from BMW M54 engine

Recommended applications

• BMW vehicles fitted with M52 Single Vanos engines

What’s included

• BMW M52 Single Vanos plug and play adaptor harness
• Integrated wideband lambda lead with fuse protection
• Optional ECUMaster EMU Black wire-in ECU
• Base start map supplied when ECU option is selected
