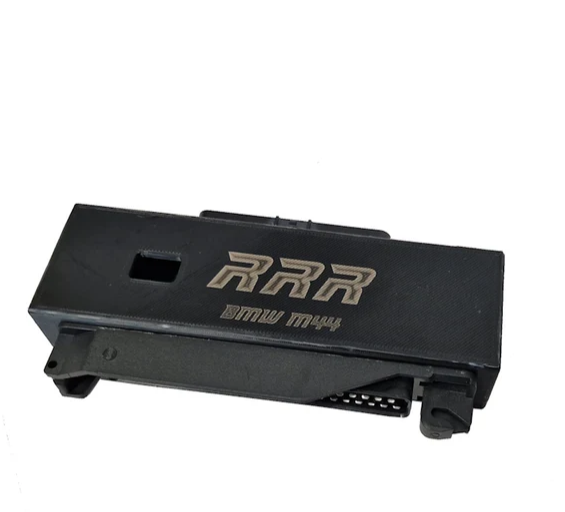

ECUMaster EMU Black BMW M44 Plug and Play ECU Kit

This plug and play ECU adaptor harness is designed for BMW M44 engine applications and is intended for use with the ECUMaster EMU Black ECU. The product can be supplied as an adaptor-only solution or as a complete kit including the EMU Black ECU, depending on the selected option. Installation is fully plug and play using the factory engine wiring loom, with no modification required.

Engine control capability

• Standalone engine management based on the ECUMaster EMU Black platform
• Compatible with all BMW M44 engine applications
• Controls fuel, ignition, and auxiliary engine systems
• Final functionality depends on ECU configuration and vehicle specification

Hardware and platform

• BMW M44 plug and play adaptor harness
• Optional ECUMaster EMU Black wire-in ECU
• Designed to connect directly to the factory engine loom
• Integrated wideband lambda lead with fuse protection
• 6 way DTM lambda connection on adaptor
• No permanent modification to the original wiring loom

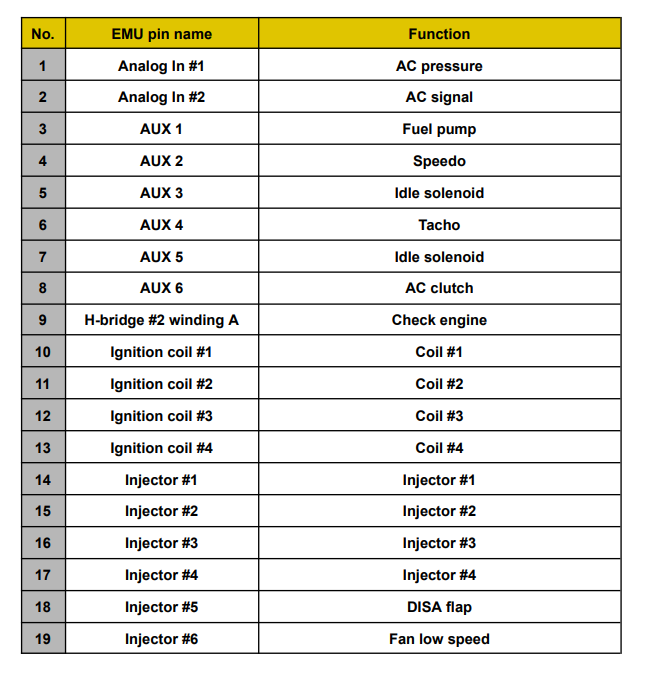

Inputs and outputs

• Factory sensors and actuators connected via adaptor harness
• Wideband lambda connection via 6 way DTM interface
• Input and output availability depends on EMU Black configuration

Communications

• USB connection for configuration and tuning via EMU Black ECU
• CAN bus support via EMU Black platform

Data logging

• Internal ECU data logging supported by the EMU Black platform
• Logging capability dependent on ECU configuration and software setup

Software

• Configured using ECUMaster EMU Black software
• Free firmware updates supported by ECUMaster

Notes

• Available as adaptor-only or complete ECU kit
• Designed exclusively for use with ECUMaster EMU Black ECU
• DTM to lambda link loom required for sensor connection
• Classic ECU option requires Bosch LSU 4.2 wideband sensor

Recommended applications

• BMW vehicles fitted with M44 engines

What’s included

• BMW M44 plug and play adaptor harness
• Integrated wideband lambda lead with fuse protection
• Optional ECUMaster EMU Black wire-in ECU
• Base start map supplied when ECU option is selected
